Installation, cont'd

Panel Features and Connections

Transmitter input connections

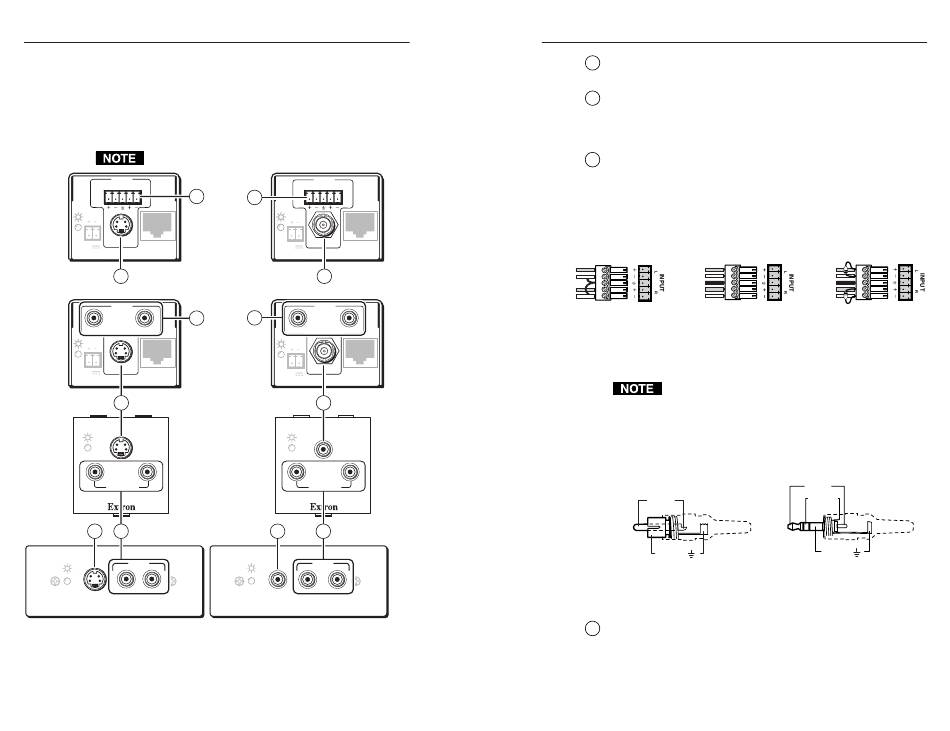

Figure 2-6 shows all of the combinations of video and audio
input connectors that you may encounter with your MTP
transmitter.
Some transmitters do not have audio connections.
INPUT
L R
3
S-VIDEO
OUTPUT
12V
0.5a MAX
MTP T SV A
MTP T SV A,
1
Rear Panel
INPUT
4
L R
S-VIDEO OUTPUT
12V
0.5a MAX
MTP T SV A RCA
MTP T SV A RCA,
1
Rear Panel
S-VIDEO
L R
AUDIO INPUT
MTP T SVA 45,
Front Panel
1 4
S-VIDEO
AUDIO
L R
MTP T SVA AAP
MTP T SVA AAP,
Front Panel
Figure 2-6 — Video and audio input connections
www.camboard.de
®
2-8 VersaTools MTP Series • Installation
CAMBOARD Electronics
INPUT
L R
3
VIDEO OUTPUT
12V
0.5a MAX
MTP T AV
MTP T AV,
2
Rear Panel
INPUT
4
L R
VIDEO OUTPUT
12V
0.5a MAX
MTP T AV RCA
MTP T AV RCA,
2
Rear Panel
VIDEO
L R
AUDIO INPUT
MTP T AV 45,
Front Panel
2 4
VIDEO
AUDIO
L R
MTP T AV AAP
MTP T AV AAP,
Front Panel
Tel. 07131 911201
Fax 07131 911203
S-video connector (SV models) — Connect an S-video input to
1
this 4-pin mini DIN connector.
Composite video connector (CV and AV models) — Connect a
2
composite video input to this connector (female RCA on the
MTP T AV AAP and MTP T AV 45, female BNC on all other
models).
Audio input captive screw connector (MTP T SV A,
3
MTP T AV) — Connect a balanced or unbalanced audio input to
this 3.5 mm, 5-pole captive screw connector. Connectors are
included with each MTP, but you must supply the audio cable.
See figure 2-7 to wire a connector for the appropriate input type
and impedance level. High impedance is generally over
800 ohms.
Tip Tip
Sleeve Ring
Sleeve (s)
Tip
Tip
Ring
Sleeve
Balanced Input
Unbalanced Input
(high impedance) (high impedance)
Figure 2-7 — Captive screw input connector
wiring
When making connections for the MTP from existing
audio cables, see figure 2-8 to identify the tip, ring, and
sleeve wires in various connectors. A mono audio
connector consists of the tip and sleeve. A stereo audio
connector consists of the tip, ring and sleeve. The ring,
tip, and sleeve wires are also shown on the captive screw
audio connector diagrams, figure 2-7 and figure 2-16.
Tip (+)
Sleeve ( )
RCA Connector (Mono)
Figure 2-8 — Typical audio connectors
Audio input RCA connectors (RCA, AAP, and 45 models) —
4
Connect an unbalanced stereo audio source to these L(eft) and
R(ight) RCA connectors (figure 2-9).
ce-info@camboard.de
VersaTools
600 ohms
Tip
Ring
Sleeve (s)
Tip
Ring
600 ohms
Balanced Input
(600 ohms)
Tip (L)
Ring (R)
Sleeve ( )
3.5 mm Stereo Plug Connector
(unbalanced)
®
MTP Series • Installation 2-9
