Setup Guide VersaTools MTP Series ® Video and Audio Mini Twisted Pair Transmitters and Receivers 68-732-50 Rev. A 09 08...
Page 2
Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
Table of Contents Chapter One • Installation About the MTP Transmitters and Receivers Signal Jumpers for Generational Compatibility Mounting Options Frame mounting (AAP models) ... 1-4 Furniture or projector mounting (except AAP models) ... 1-4 Rack mounting (all except AAP models) ... 1-4 Rack mounting instructions ...
Page 6
Table of Contents, cont’d All trademarks mentioned in this manual are the properties of their respective owners. 68-732-50 Rev. A 09 08 VersaTools MTP Series • Table of Contents ® Refer also to the VersaTools MTP Series User’s Manual at www.extron.com. ®...
VersaTools ® MTP Series Series Chapter One Installation About the MTP Transmitters and Receivers Signal Jumpers for Generational Compatibility Mounting Options Panel Features and Connections...

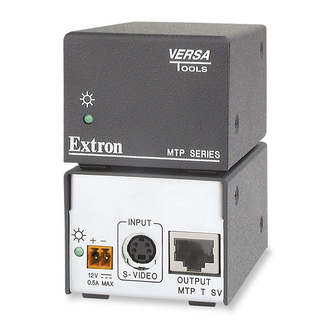

Installation About the MTP Transmitters and Receivers The Extron MTP transmitters and receivers provide a system for long‑distance distribution of A/V signals over Category (CAT) 5 shielded (STP), unshielded (UTP), or foil shielded (FTP) twisted pair cable. They are part of the Extron VersaTools distribution amplifiers, switchers, transmitters, receivers, and associated video accessories.
The table below identifies the generation of transmitter and/or receiver. If any of the above scenarios are true, consult the VersaTools MTP Series User's Manual or www.extron.com for instructions on properly setting the jumper. Only new generation units have jumpers.
For rack mounting, use any of the rack shelves listed in the "Accessories" table in the Appendix, page A‑2. UL Guidelines Refer to the VersaTools MTP Series User's Manual for Underwriters Laboratories (UL) guidelines pertaining to the installation of electronic equipment into a rack.
Panel Features and Connections Transmitter input connections Figure 1‑1 shows the video and audio input connectors of the MTP Series transmitters. Some transmitters do not have audio connections. INPUT S-VIDEO OUTPUT 0.5a MTP T SV A MTP T SV A, Rear Panel INPUT S-VIDEO...
Page 12
Installation, cont’d Audio input captive screw connector (MTP T SV A, MTP T AV) — Connect a balanced or unbalanced audio input to this 3.5 mm, 5‑pole captive screw connector. Connectors are included with each MTP. See Figure 1‑2 to wire a connector for the appropriate input type.
Transmitter/receiver throughput connections See Figure 1‑5 to identify the connections between the transmitter and receiver. MTP Transmitters INPUT S-VIDEO OUTPUT 0.5a MTP T SV A RCA INPUT VIDEO OUTPUT 0.5a MAX MTP T AV Figure 1-5 — Throughput connections Do not connect these devices to a computer data or telecommunications network.
Page 14
Installation, cont’d Power connection (all models) See Figure 1‑6 to identify the power connections and indicators. MTP Transmitters INPUT S-VIDEO OUTPUT 0.5a MAX MTP T SV A RCA MTP AAP Transmitters Figure 1-6 — Power connections and indicators Power connector — Plug the external 12 VDC power supply into this 2‑pole captive screw connector on both the transmitter and the receiver.
Page 15
The length of exposed wires is critical. Ideal length is 3/16” (5 mm). If the stripped section of wire is longer than 3/16” the exposed wires may touch, causing a short circuit. If the stripped section of wire is shorter, wires can easily be pulled out even if tightly fastened by the captive screws.
Page 16
Installation, cont’d Receiver output connections Figure 1‑8 shows all combinations of rear panel output connections for the MTP receivers. MTP R SV A, Rear Panel 0.5a MAX MTP R AV, Rear Panel 0.5a MAX Figure 1-8 — Output connector wiring S-video connector (SV models) —...
Front Panel Operation Front Panel Features MTP R Composite Video Receiver Front Panel Figure 2-1 — MTP receiver front panels Power LED — When lit, this LED indicates power is applied to the MTP. Sharpness — Adjusts output image sharpness to compensate for long cable runs.
Specifications, Part Numbers, and Accessories Specifications Consult the VersaTools User's Manual on the included CD ROM or at www.extron.com for a complete list of specifications. Please consult the VersaTools User's Manual found at www.extron.com or on the included CD ROM for a complete list of optional accessories, pre‑cut cables, connectors and bulk cable.
MTP transmitters Description MTP T SV MTP T SV A MTP T SV A RCA MTP T SV A AAP (black, white) MTP T CV MTP T AV MTP T AV RCA MTP T AV AAP (black, white) MTP receivers Description MTP R SV MTP R SV A...
Specifications, Part Numbers, Accessories, cont’d Cables/connectors Enhanced Skew-Free™ A/V cable Enhanced Skew‑Free A/V UTP Cable (various lengths) Enhanced Skew‑Free A/V UTP, 1000' bulk Plenum Enhanced Skew‑Free A/V UTP, 1000' bulk RJ-45 connector CAT 6 jack (black) CAT 6 jack (red) CAT 6 jack (blue) CAT 6 jack (orange) CAT 6 jack (gray)
Page 23
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
