Installation
CAUTION Installation and service must be performed by
authorized personnel only.

Mounting Options

Tabletop use (all except AAP and 45 models)

The non-AAP and non-45 model MTPs come with self-adhesive
rubber feet attached to the four corners of the bottom. Set the
MTP on a horizontal surface.

Rack mounting (all except AAP and 45 models)

For optional rack mounting, mount the MTP on any of the
following rack shelves:
®
• VersaTools 19" 1U rack shelf kit (part #60-190-20)
(figure 2-1)
• VersaTools 19" basic 1U rack shelf (part #60-604-20)
• 6" deep 1U rack shelf kit (part #60-190-10)
• 6" deep basic 1U rack shelf (part #60-604-10)
• Standard universal 1U rack shelf kit (part #60-190-01)
(figure 2-2)
• Basic universal 1U rack shelf (part #60-604-01)
On the standard rack shelf, the MTP mounts in one of eight
locations to the rear of the rack or in one of eight locations to the
front of the rack.
1. Remove the feet from the bottom of the MTP, if installed.
2. Mount the MTP using two 4-40 x 3/16" screws in opposite
(diagonal) corners to secure the MTP to the shelf.
Install blank panel(s) or other unit(s) to the rack shelf.
3.
Only products in the VersaTools line can be mounted to a
VersaTools shelf. Most 1U rack-mountable Extron
products can be mounted on the standard shelf.
www.camboard.de
®
2-2 VersaTools MTP Series • Installation
CAMBOARD Electronics
Tel. 07131 911201
Fax 07131 911203
VersaTools
Rack Shelf
Quarter Rack Width
False Front Face Plate
Eighth Rack Width
False Front Face Plate

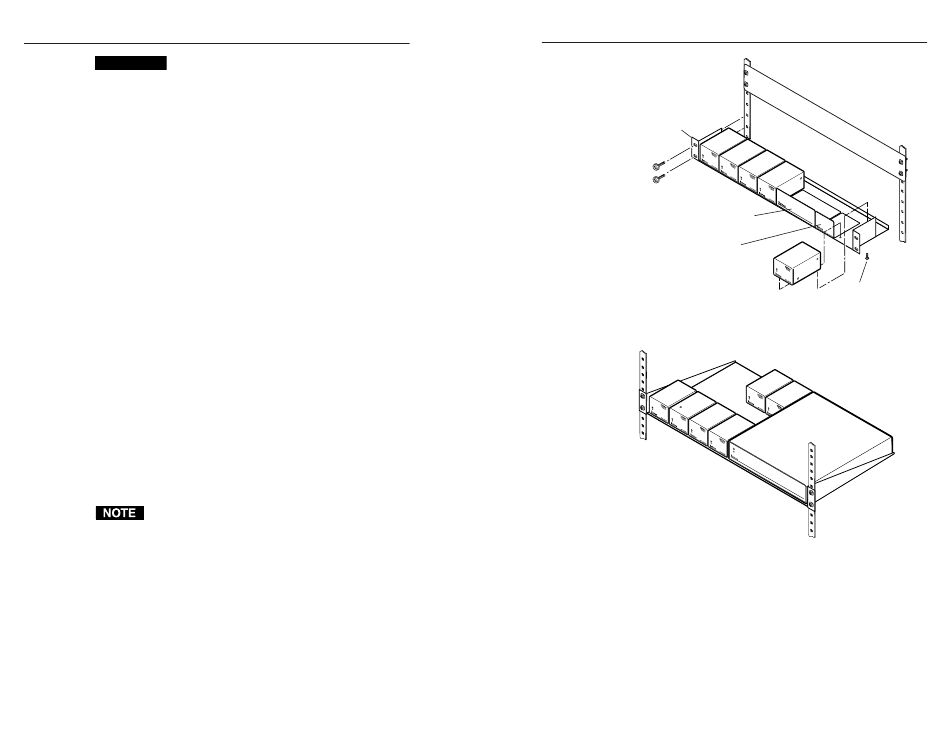

Figure 2-1 — Mounting the MTPs on a VersaTools
rack shelf
Figure 2-2 — Mounting the MTPs on a standard
rack shelf
