Sliding Gate Opener Set Up
NeoSlider V2, NeoSlider
TM
V3
TM
29
28

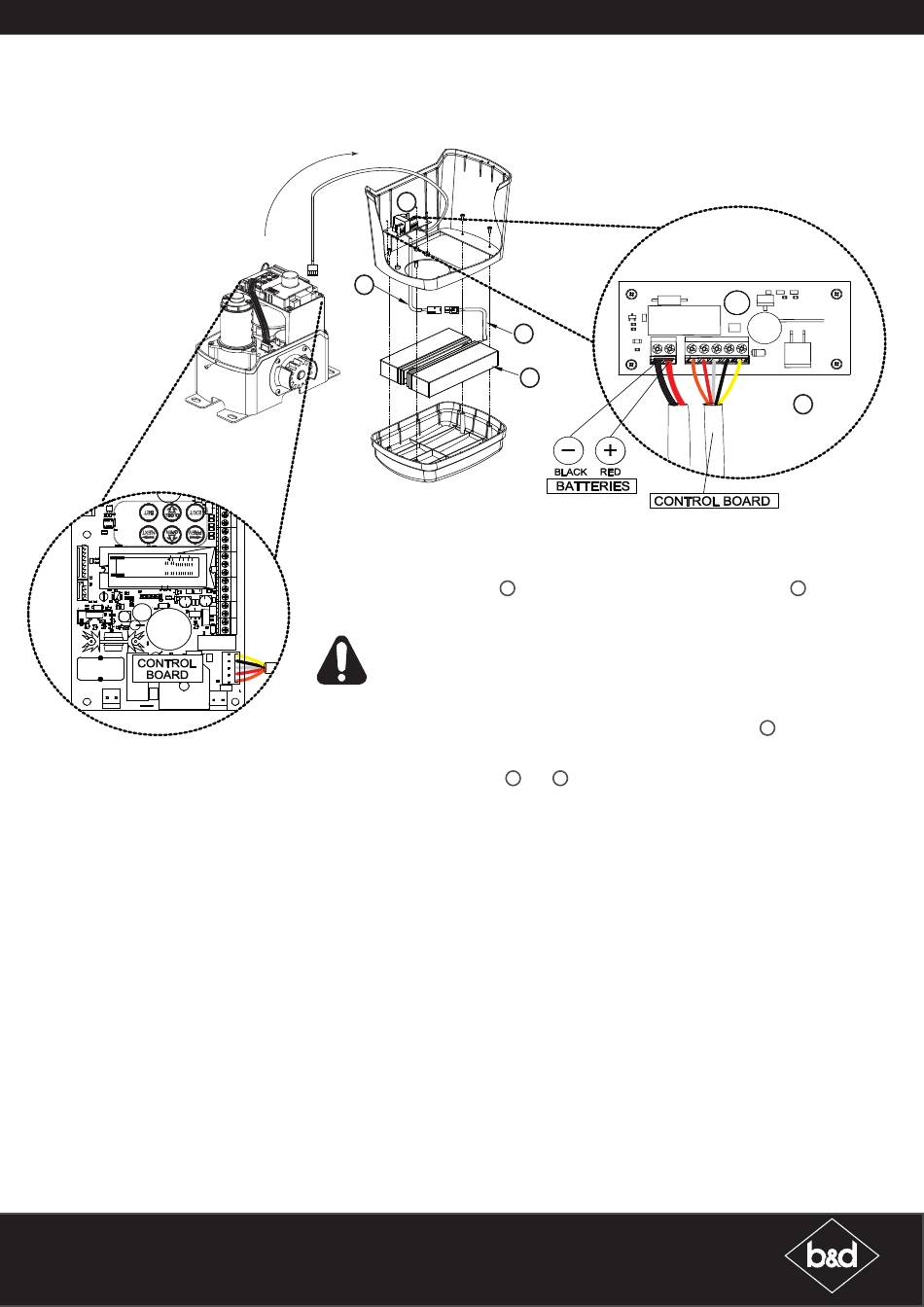

Mount the Charger Board
a. Unplug the drive unit from mains power.
b. Remove the main cover and unscrew the lid from the cover.
c. Mount the Charger Board
d. Plug the Charger Board's five wire harness (orange/red/white/black/yellow) into the
control board's "SBC-02" connector.
WARNING: After Step (c) the opener may become active (even when power is
off). This is a result of a residual charge in the batteries.
Mount & Connect the Battery
a. Place the battery pack inside the lid and feed battery coupling wire
cover.
b. Secure the lid to the main cover with screws.
c. Connect battery harnesses
NOTE: Batteries may take up to 48 hours to charge fully after initial installation.
Re-setup and Test the Opener
a. Reconnect power.
b. Select Menu 7 on the control board, press "SET", select Sub Menu 7 ("Battery/Solar") and
enable using the "OPEN" and CLOSE" buttons.
c. Setup travel limits and transmitters as per the slider instruction manual.
d. Press either "OPEN" or "CLOSE" buttons, or use a transmitter to operate the gate.
e. Whilst the gate is in motion, disconnect mains power. The gate should continue to operate
as normal.
NOTE: Wait for the gate to complete its travel.
f. Press the transmitter to activate the gate. Whilst the gate is in motion re-connect power.
The gate should complete the cycle as normal.
g. Refit the main cover onto the drive unit.
B&D Doors is a division of B&D Australia Pty Ltd
P: 13 62 63
W: www.bnd.com.au
27
25
inside the cover using four (4) M3x8 screws
26
and together.
27 28
26
.
29
through the main
27
