B&D Automatic Technology Battery Backup Gen 2 Kit Installation Instructions Manual page 4

Roll Up Door Opener Set Up
GDO-6V4 EasyRoller
SBC-02

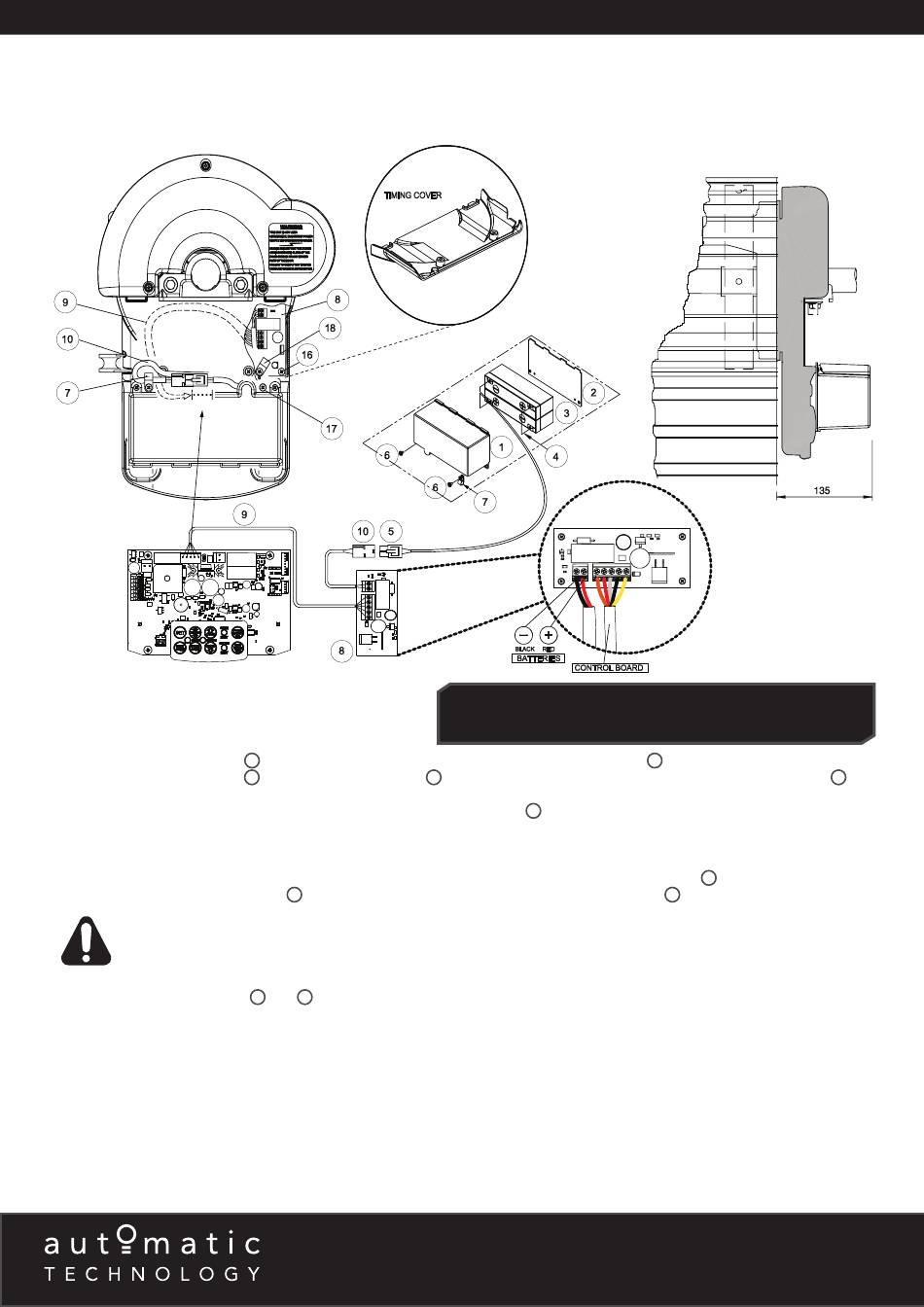

Mount the Charger Board
a. Unplug the drive unit from mains power.
b. Remove the timing cover and light diffuser.
c. Mount the Charger Board
d. Feed the battery harness
around the timing assembly, through opening and plug into SBC-02 connector on the control board.
e. Remove breakaway slot on timing cover and feed wire battery harness
place with screws.
Mount & Connect the Battery
a. Mount battery backup kit onto support chassis and secure right side screw first (charger board side)
b. Position the wire battery harness
WARNING: After Step (c) the opener may become active (even when power is off).
This is a result of a residual charge in the batteries.
c. Connect battery harnesses
d. Close the timing cover, light diffuser and reconnect power.
NOTE: Batteries may take up to 48 hours to charge fully after initial installation.
Re-setup and Test the Opener
a. Reconnect power and remove the button cover.
b. Press either the OSC button the opener or the programmed transmitter button to test the battery backup installation.
c. Whilst door is in motion, disconnect mains power. The door should continue to operate as normal.
NOTE: Wait for the door to complete its travel.
d. Press either the OSC button on the opener or the progammed transmitter button to activate the door.
e. Whilst door is in motion, reconnect power and re-install button cover. The door should complete the cycle as normal.
, RDO-1V3 & RDO-1V4
®
on the chasis and secure with four (4) Taptite 'P' M4x8 screws
8
through the cable clamp
5
neatly and secure left side of battery kit with cable clamp
10
and together.
5 10
6 - 8 Fiveways Boulevard, Keysborough, VIC, Australia 3173
P: 1300 133 944
W: www.automatictechnology.com.au
RDO-1V4:
The Charger board is already installed with the unit. Remove the
timing cover then proceed to step (e) to remove breakaway slot.
and secure left corner of the board. Feed the Wire Harness
18
through slot and replace timing cover. Secure in
10
E: sales@automatictechnology.com.au
.
16
.
17
.
7
9
