B&D Automatic Technology Battery Backup Gen 2 Kit Installation Instructions Manual page 6

Swing Gate Opener Set Up
DCB-05V2
24
1

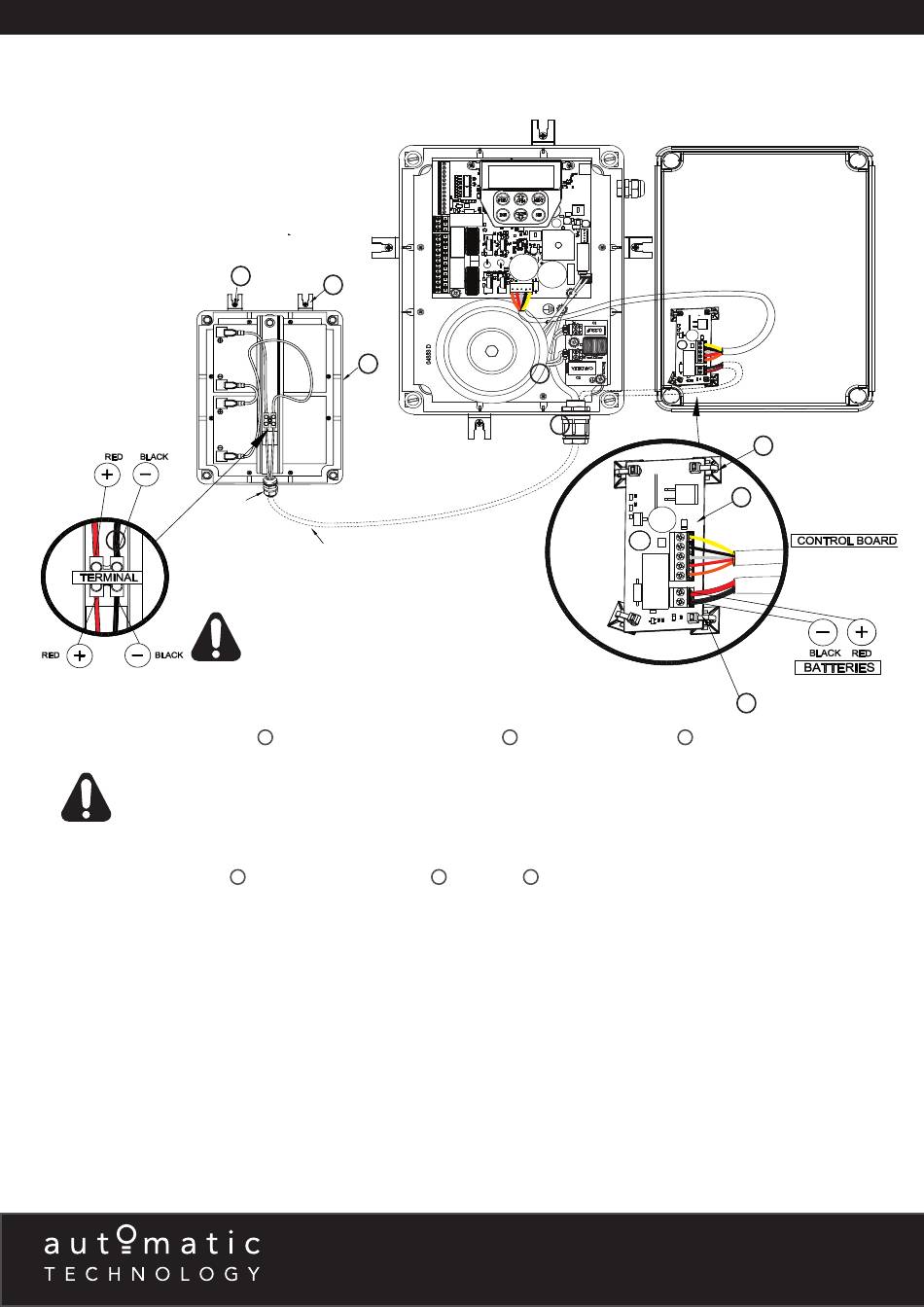

Mount the Charger Board
a. Unplug the Control Box from mains power.
b. Remove the Control Box's cover.
c. Secure the adhesive mounts
d. Plug the Charger Board's five wire harness (orange/red/white/black/yellow) into the DCB-05 board's "SBC-02" connector.
WARNING! The opener will become active
during the following steps.
Mount & Connect the Battery
a. Drill a hole in the Battery Pack enclosure (recommend at the bottom) and fit a nylon gland (not supplied).
b. Mount the Battery Pack
19
c. Feed a 2-core 18awg gauge cable (not supplied) through the Battery Box's nylon gland.
d. Connect the red wire to the Battery Box's "+" terminal, and the
e. Feed the other end of the 2-core 18awg gauge cable through the control box's gland.
red wire
f. Connect the to the Charger Board's Battery Harness"BAT+" connector, and the
Re-setup and Test the Opener
a. Reconnect power.
b. Select Menu 7 on the DCB-05 control board, press "SET", select Sub Menu 7 ("Battery/Solar") and enable using the "OPEN" and
CLOSE" buttons.
c. Setup travel limits and transmitters as per the DCB-05V2 instruction manual.
d. Press either "OPEN" or "CLOSE" buttons, or use a transmitter to operate the gate.
e. Whilst the gate is in motion, disconnect mains power. The gate should continue to operate as normal.
NOTE: Wait for the gate to complete its travel.
f. Press the transmitter to activate the gate. Whilst the gate is in motion re-connect power. The gate should complete the cycle as
normal.
g. Refit the control box cover.
23
19
WARNING! Do not connect the batteries until
you have connected wiring on the charger
board.
to the Charger Board with cable ties
21
using the mounting brackets
