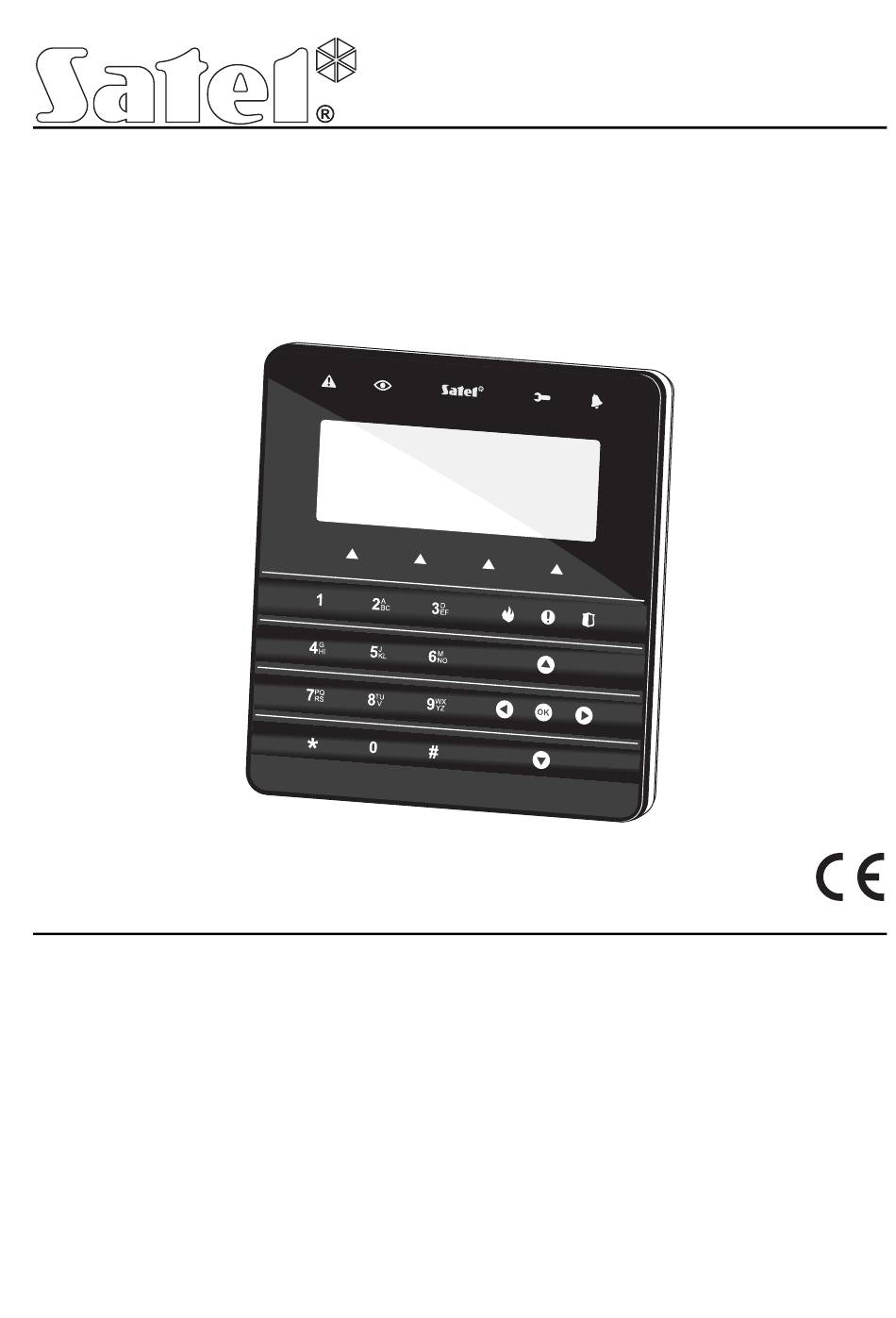

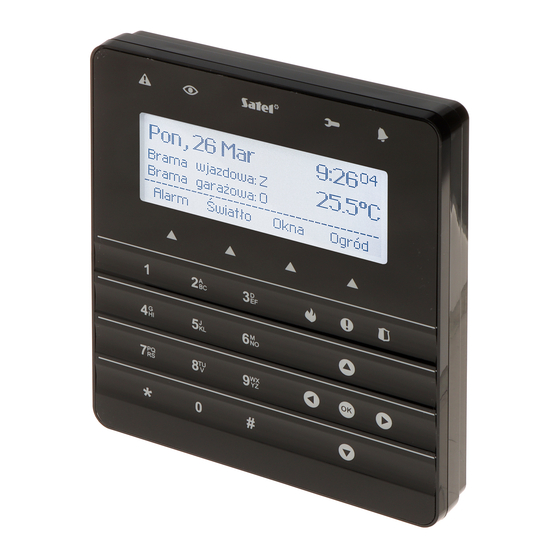

- Page 1 INT-KSG Keypad Quick user’s guide Firmware version 1.02 int-ksg_u_en 01/13 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Keypad Description
SATEL Ltd. is a manufacturer of a wide variety of dedicated devices for use in alarm systems. Additional information can be found on our website www.satel.eu or at points of sale offering our products. - Page 4 INT-KSG SATEL display can switch over to the screensaver mode, in which the following information can be presented: any text, defined by the installer, state of selected partitions, state of selected zones, state of selected outputs, ...
-
Page 5: Sound Signaling
SATEL INT-KSG 1.3 Keys The keys designated with digits and letters enable entering the code and data, when using the functions available in the menu (for description of data entering by means of the keypad please refer to the user manual for INTEGRA or INTEGRA Plus control panels). Additionally, you can touch and hold the selected number keys for approx. - Page 6 INT-KSG SATEL 4 short beeps and 1 long beep – to signal: activating output; enabling the chime signal in keypad with the 8 key. terminating the function and exiting the user menu, after confirmation of the data entered.
-
Page 7: Quick Arming
SATEL INT-KSG If the user can only arm one partition, the arming procedure will be initiated as soon as the code is entered and confirmed with the key. 2.2 Full arming the specific partitions 1. Enter the code and confirm using 2. -
Page 8: Disarming And Alarm Clearing
INT-KSG SATEL there is a trouble in the system (including tamper); there was a verified alarm. The keypad will inform you about the refusal to arm by means of a message specifying the cause for refusal. If after a verified alarm the arming is impossible, the installer must be called. The arming will only be possible after the installer intervention. -
Page 9: Triggering The Alarm From Keypad
SATEL INT-KSG 4. Triggering the alarm from keypad If your installer has enabled this feature, the alarms can be triggered from the keypad as follows: fire alarm – touch and hold the key for approx. 3 seconds; medical (auxiliary) alarm – touch and hold the key for approx. -
Page 10: Viewing All Events
INT-KSG SATEL For security considerations, the installer can reduce the number of zones that the user is authorized to bypass. 5.3 Viewing all events 1. Enter the code and confirm with the key . 2. Press in turn the 5 and 2 keys. The last event which occurred in the system will be displayed. - Page 11 SATEL INT-KSG available in other groups. Having selected the required macro command, touch the key to run it; run a single macro command. Fig. 2. Examples of macro commands displayed on touching the key. The functions to be executed by means of macro commands are to be determined by the installer.
- Page 12 INT-KSG SATEL 8. Brief description of keypad operation blinking – trouble or trouble memory / Grade 2 or Grade 3: trouble or trouble memory, bypassed zones or alarm lit – all partitions operated by the keypad are armed blinking – some partitions are armed blinking –...
