ASSEMBLY AND INSTALLATION INSTRUCTIONS
CUBBY TOWER - 18" / 24" / 30"

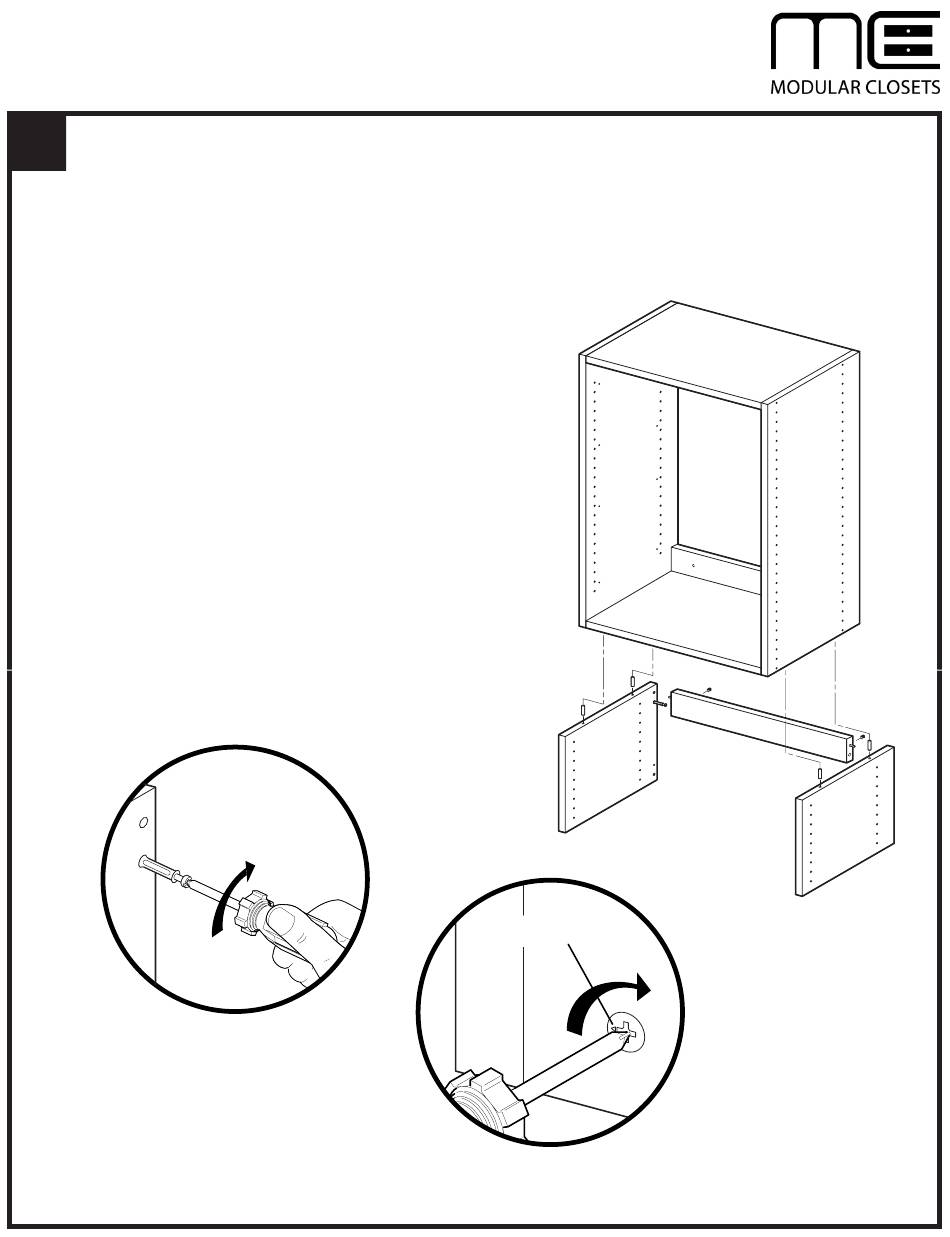

6
FOR FLOOR MOUNT INSTALLATIONS ONLY
6.1
Install one Cam Post (G) into each of two Floor Support
Panels (F). Tighten until Cam Posts are seated
against Panels.
6.2
Assemble Floor Support Panels (F) onto Rear Hanging
Cleat (E) by sliding the Cam Posts (G) into Cleat. BE SURE
dowel pins in Cleat engage drilled holes in Floor Support
Panels, and all parts are pressed flush against each other.
6.3
Insert Camlocks (H) in holes in Rear Hanging Cleat (E),
with arrow pointing toward Cam Post opening. Be sure
Camlocks engage Cam Posts, and are fully seated in Cleat.
Tighten Camlocks (H) clockwise to lock.
6.4
Insert four Wood Dowels (J) into holes in edges of Floor
Support Panels (F).
6.5
Align Wood Dowels (J) in assembled Floor Support with
holes in Cubby Tower and press Tower and Floor Support
together.
J
G
F
ARROW TOWARD
CAM POST OPENING
H
E
J
F
