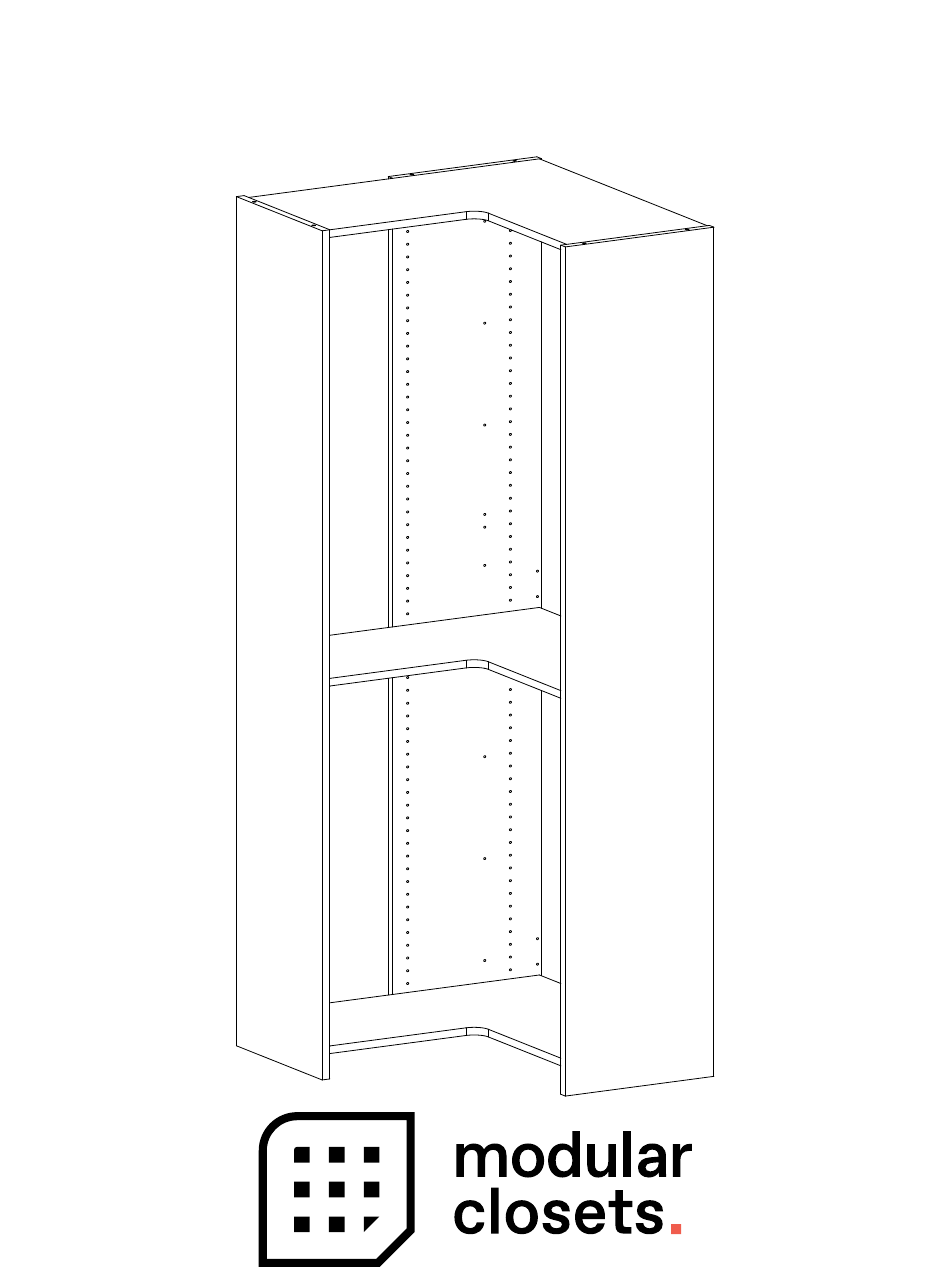

- Page 1 ALTO Corner ASSEMBLY INSTRUCTIONS...
- Page 2 For any questions reach out to support@modularclosets.com or call 844-969-4247 Thank you for choosing Modular Closets and our Alto closet system! We are committed to providing you with a seamless and efficient storage solution that enhances the organization and functionality of your space. Before you embark on assembling your new Alto closet system, we want to emphasize a crucial step to ensure a smooth and successful installation.
- Page 3 Assembly and Installation Manual The Alto Corner unit utilizes 3 Alto panels in its construction. The position of the supporting panel can be on either wall as seen below. It is also highly recommended that the corner unit be the starting point of your Alto closet line...
- Page 4 Assembly and Installation Manual Boxes Needed ALT-CORFS Corner Shelf ALT-SP/CP Corner shelves require 3 panels. It is recommended that the corner shelf be built first and lead into all other Alto systems. Additional Corner Shelves ALT-CORAS ALT-HRDP-CORAS Screw Dowel Wedgefix...
- Page 5 Assembly and Installation Manual Hardware Packs Needed ALT-HRDP-CORFS wedgefix rafix screw dowel shelf pin with locking mechanism Tools needed Philips screw Stud finder Rubber mallet Drill Level driver 2 person assembly suggested...
- Page 6 Assembly and Installation Manual Step 1 Take two corner shelves from box ALT-CORFS and insert rafix hardware. Insert hardware only where corner shelf will be attached to a supporting panel (2 empty slots on each shelf). rafix...
- Page 7 Assembly and Installation Manual Step 2 Take third corner shelf and insert wedgefix hardware in matching spots. wedgefix This will be used as the bottom fixed shelf...
- Page 8 Assembly and Installation Manual Step 2b If applicable, take any extra corner shelves from box ALT-CORAS and insert wedgefix hardware from hardware pack ALT-HRDP-CORAS. wedgefix This will be used as adjustable shelf...
- Page 9 Assembly and Installation Manual Step 3 Corner shelf unit requires three panels. Ensure you have all three located and ready for hardware setup. The unfinished ends of each panel should always be against the wall for all three panels. Unfinished Finished Side Side...
- Page 10 Assembly and Installation Manual Step 4 Insert and drill rafix screws into circled holes below on each panel. Refer to next page for mirrored panel. Rafix Screw...
- Page 11 Assembly and Installation Manual Step 4 (cont) Insert and drill rafix screws into circle holes below on each panel. Refer to previous page for mirrored panel. Rafix If planning to use additional adjustable shelves in the corner unit please continue. If not, skip to page 13 to continue.
- Page 12 Assembly and Installation Manual Step 4b For additional corner shelves, drill rafix screws into horizontally matching hole Rafix slots on all three of panels where the additional corner shelves will be placed. Repeat as necessary for all adjustable shelves planning to be placed.
- Page 13 Assembly and Installation Manual Step 5 Line up panels against wall to prepare for bottom shelf insert as shown below. Back panel will be offset 3/4” from perpendicular wall.
- Page 14 Assembly and Installation Manual Step 6 Take bottom fixed shelf and press into place at bottom screws in panels.
- Page 15 Assembly and Installation Manual Step 6b Insert any additional corner shelves (wedgefix hardware) that will be under the middle fixed shelf now. Additional shelves should attach to rafix screws drilled in step 4b.
- Page 16 Assembly and Installation Manual Step 7 Insert corner fixed shelf into next available rafix screws (middle) and press shelf into place.
- Page 17 Assembly and Installation Manual Step 8 Take screwdriver underneath pressed in middle shelf and tighten rafix clips to secure shelf to panels. Repeat for all 6 rafix clips.
- Page 18 Assembly and Installation Manual Step 8b Insert any additional corner shelves that will be above the middle fixed shelf now. Additional shelves should attach to rafix screws drilled in step 4b.
- Page 19 Assembly and Installation Manual Step 9 Insert corner fixed shelf into next available rafix screws (top) and press shelf into place.
- Page 20 Assembly and Installation Manual Step 10 Take screwdriver underneath pressed in top shelf and tighten rafix clips to secure shelf to panels. Repeat for all 6 rafix clips.
