ASSEMBLY AND INSTALLATION INSTRUCTIONS
CUBBY TOWER - 18" / 24" / 30"
4

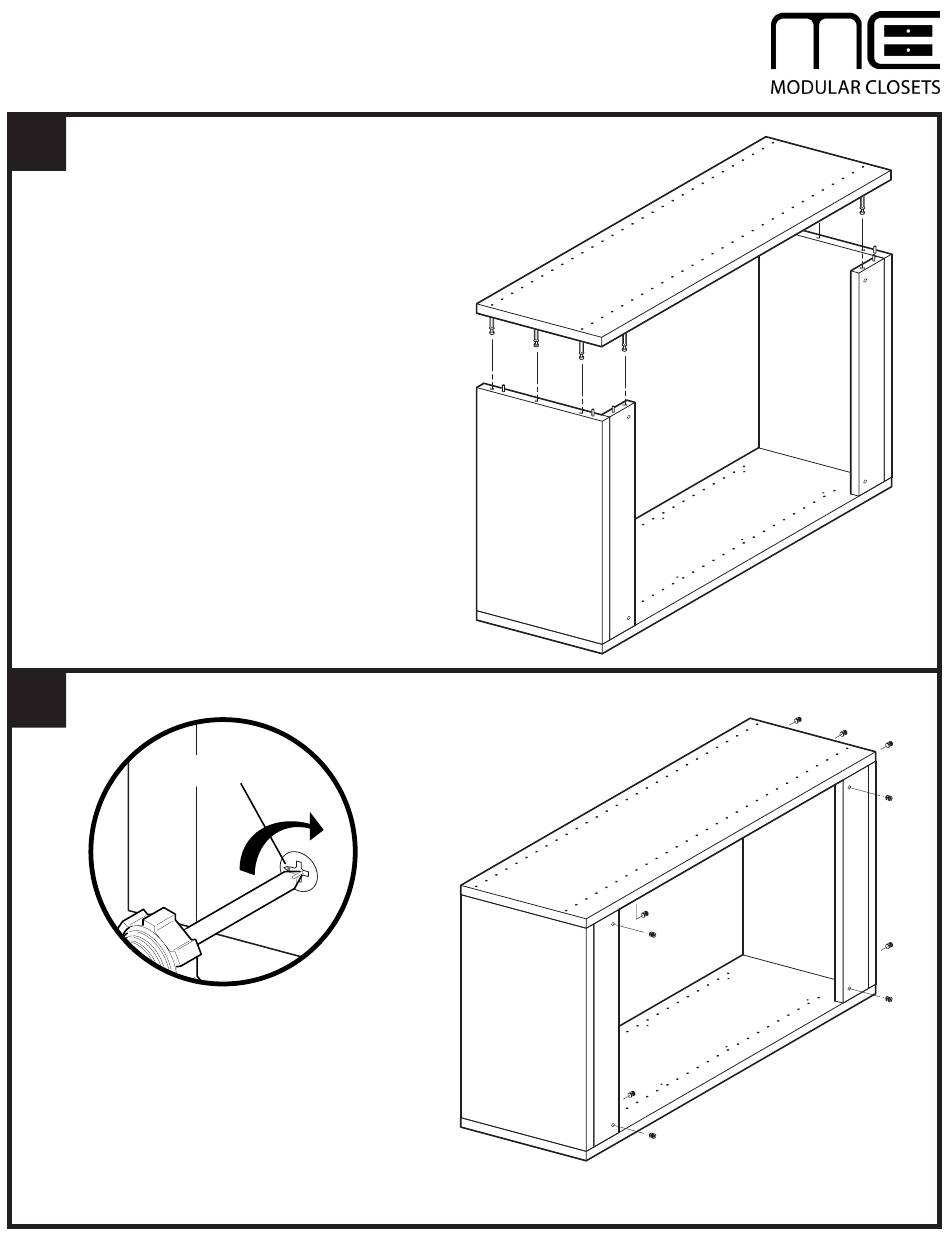

4.1 Install Left Side Panel (A) onto assembled
Set Shelves (D) and Rear Hanging Cleats
(E). BE SURE dowel pins in Shelves and
Cleats engage drilled holes in Side Panel,
and Side Panel is pressed flush against Set
Shelves and Cleats.
5
ARROW TOWARD
CAM POST OPENING
5.1
Insert Camlocks (H) in holes in Set
Shelves (D) and Rear Hanging Cleats
(E), with arrow pointing toward Cam
Post opening. Be sure Camlocks engage
Cam Posts, and are fully seated in Shelves
and Cleats.
5.2
Tighten Camlocks (H) clockwise to lock.
D
B
D
D
E
D
H
E
H
A
E
H
E
H
