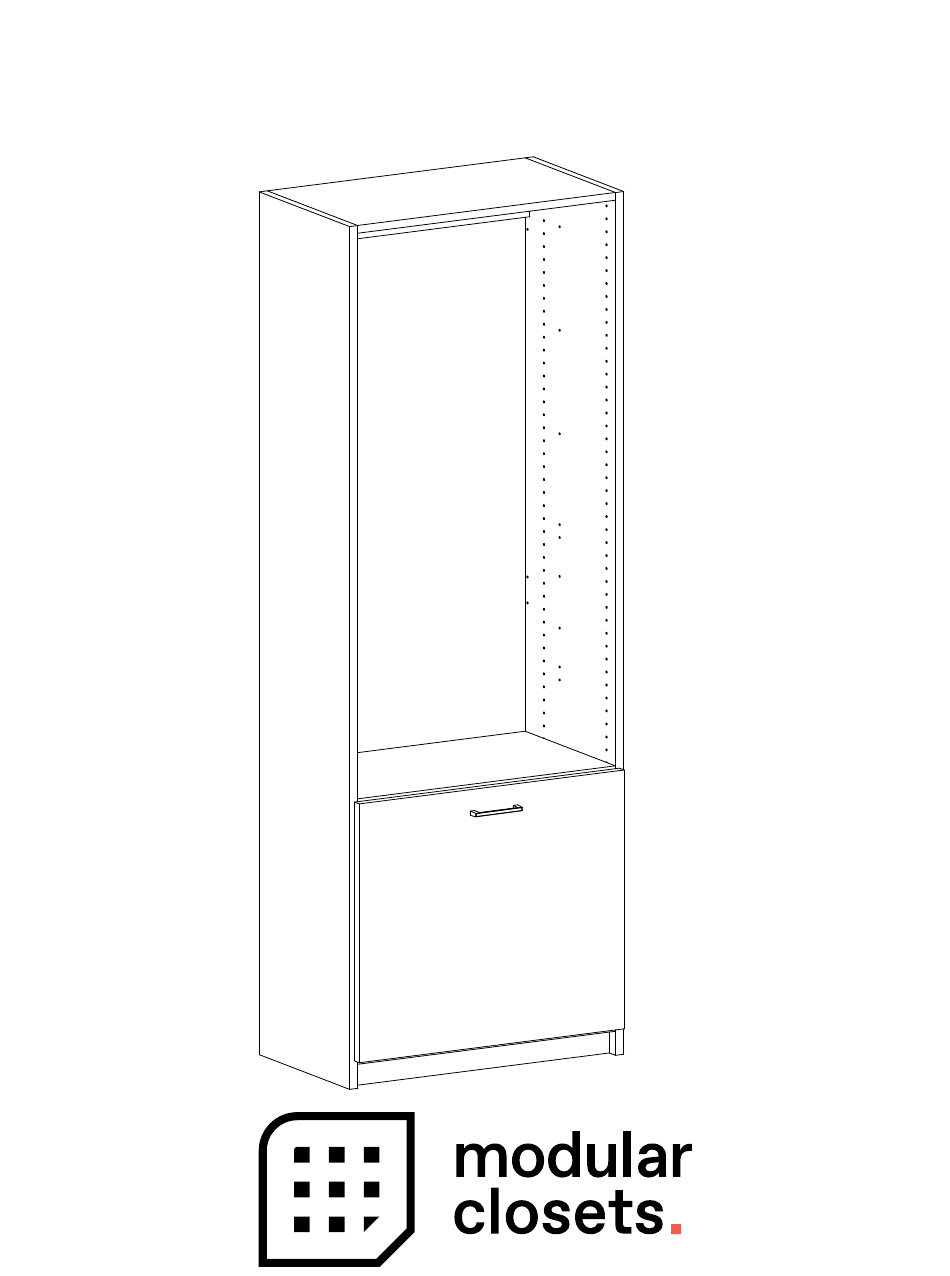

- Page 1 ALTO Tilt-Out Hamper ASSEMBLY INSTRUCTIONS...
- Page 2 For any questions reach out to support@modularclosets.com or call 844-969-4247 Thank you for choosing Modular Closets and our Alto closet system! We are committed to providing you with a seamless and efficient storage solution that enhances the organization and functionality of your space. Before you embark on assembling your new Alto closet system, we want to emphasize a crucial step to ensure a smooth and successful installation.
- Page 3 Assembly and Installation Manual The Alto Hamper assmbly starts with an already completed Alto Tower or an unfinished Alto Tower without the bottom shelf attached. If necessary, please review the Alto Assembly instructions booklet to start.
- Page 4 Assembly and Installation Manual Boxes Needed ALT-HMP Door and Fixed Shelf Hamper Hamper Hardware Pack...
- Page 5 Assembly and Installation Manual Hardware Packs Needed ALT-HRDP-FS wedgefix rafix screw dowel shelf pin with locking mechanism Tools needed Philips screw Stud finder Rubber mallet Drill Level driver 2 person assembly suggested...
- Page 6 Assembly and Installation Manual Step 1 Attach standard hardware pack hinge plates to bottom fixed shelf. Screw into place.
- Page 7 Assembly and Installation Manual Step 2 Insert 2 rafixes in the holes closer to the unfinished edge, and 2 wedgefixes in the holes closer to the finished edge. wedgefix rafix rafix Unfinished edge wedgefix Finished edge This will be used as the bottom fixed shelf...
- Page 8 Assembly and Installation Manual Step 3 Insert the bottom fixed shelf (with 2 rafixes and 2 wedgefixes from step 2) and insert the back 2 rafixes into the screw dowels as shown below. Hold Shelf at an angle and use screw driver to secure the back...
- Page 9 Assembly and Installation Manual Step 4 Insert the hinges into the appropriate slot at the bottom of door panel and fasten them with a screw driver.
- Page 10 Assembly and Installation Manual Step 5 Using the provided hamper hardware pack, attach and screw the hamper brackets to the back of the door.
- Page 11 Assembly and Installation Manual Step 6 Using the provided hamper hardware pack, attach the stay hinges to the back of the door. Please make sure to ensure you are using the correct plates matching with the image provided below. Repeat for other side.
- Page 12 Assembly and Installation Manual Step 7 Attach additional stay hinges to the assembled alto tower panel. Install 7 holes from the bottom. Please ensure you are using the correct plates matching with the image provided below. Repeat for other side. 7 Holes...
- Page 13 Assembly and Installation Manual Step 8 Attach hinges to secured plates on bottom shelf to connect the door.
- Page 14 Assembly and Installation Manual Step 9 Snap door stay into the two plates installed on steps 6 and 7. Repeat for other side.
