Summary of Contents for Modular Closets Vista Drawer Kit

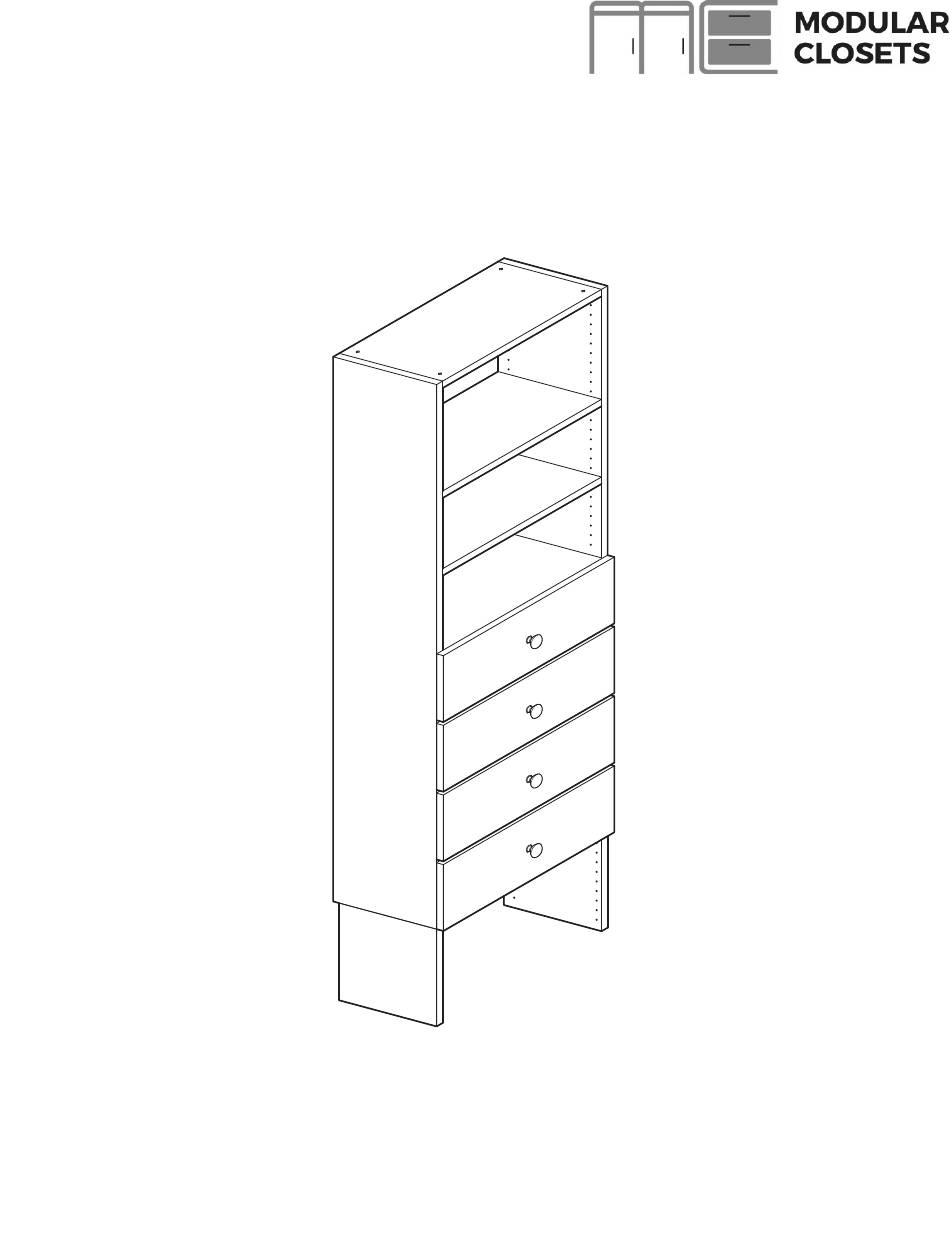

- Page 1 1-844-969-4247 support@modularclosets.com DRAWER KITS ASSEMBLY AND INSTALLATION INSTRUCTIONS...
- Page 2 ASSEMBLY AND INSTALLATION INSTRUCTIONS DRAWER KITS PARTS LIST Drawer (Qty 2) Screw, 5/8" (Qty 8) Drawer Front (Qty 2) Screw, 5/8" (Qty 8) Drawer Slide (Qty 4) Screw, 1.0" (Qty 4) TOOLS REQUIRED Shelf Slide (Qty 4) Screw, 1.5" (Qty 2) (not included) Drawer Knob (Qty 2) Drill, 5/32"...
- Page 3 ASSEMBLY AND INSTALLATION INSTRUCTIONS DRAWER KITS NOTE: DO NOT overtighten Screws (H) or surface of Drawer Fronts (B) may become dimpled. 2.1 Position Drawer Front (B) on each Drawer (A) and align mounting holes in Drawer Front with mating holes in Drawer.
- Page 4 ASSEMBLY AND INSTALLATION INSTRUCTIONS DRAWER KITS For each Drawer, position Shelf Slide (D) over pre- drilled holes in shelf side panel, then secure with two 5/8" Screws (F) at locations shown. Repeat for second Shelf Slide (D). Tip: For best results, use a small level to ensure Shelf Slides (D) are properly positioned before tightening.
- Page 5 ASSEMBLY AND INSTALLATION INSTRUCTIONS DRAWER KITS 5.1 Slide each Drawer onto Shelf Slides until slides latch.
