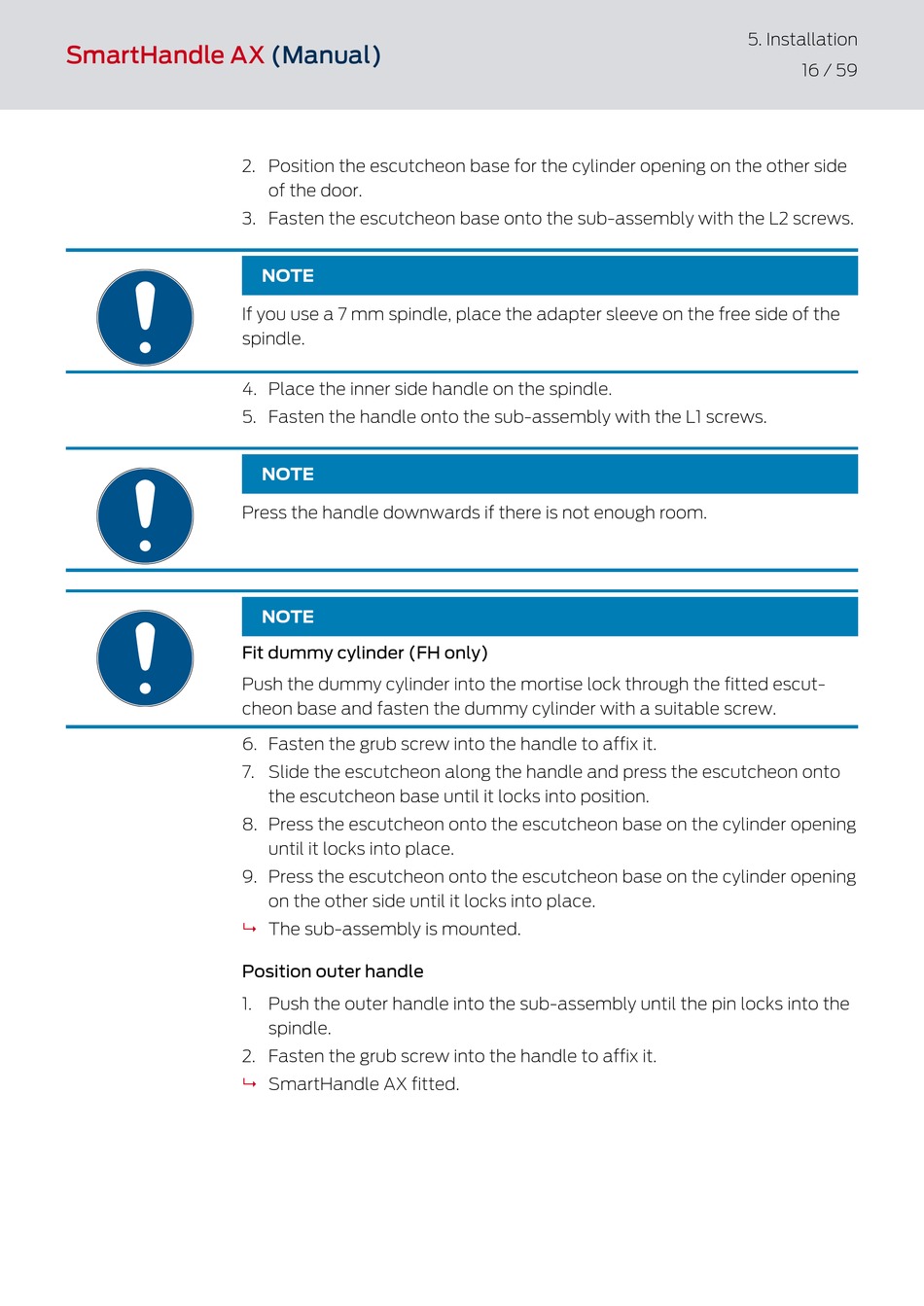

SmartHandle AX (Manual)
2. Position the escutcheon base for the cylinder opening on the other side
of the door.
3. Fasten the escutcheon base onto the sub-assembly with the L2 screws.
NOTE
If you use a 7 mm spindle, place the adapter sleeve on the free side of the
spindle.
4. Place the inner side handle on the spindle.
5. Fasten the handle onto the sub-assembly with the L1 screws.
NOTE
Press the handle downwards if there is not enough room.
NOTE
Fit dummy cylinder (FH only)
Push the dummy cylinder into the mortise lock through the fitted escut-
cheon base and fasten the dummy cylinder with a suitable screw.
6. Fasten the grub screw into the handle to affix it.
7. Slide the escutcheon along the handle and press the escutcheon onto
the escutcheon base until it locks into position.
8. Press the escutcheon onto the escutcheon base on the cylinder opening
until it locks into place.
9. Press the escutcheon onto the escutcheon base on the cylinder opening
on the other side until it locks into place.
9 The sub-assembly is mounted.
Position outer handle
1. Push the outer handle into the sub-assembly until the pin locks into the
spindle.
2. Fasten the grub screw into the handle to affix it.
SmartHandle AX fitted.
9
5. Installation
16 / 59
