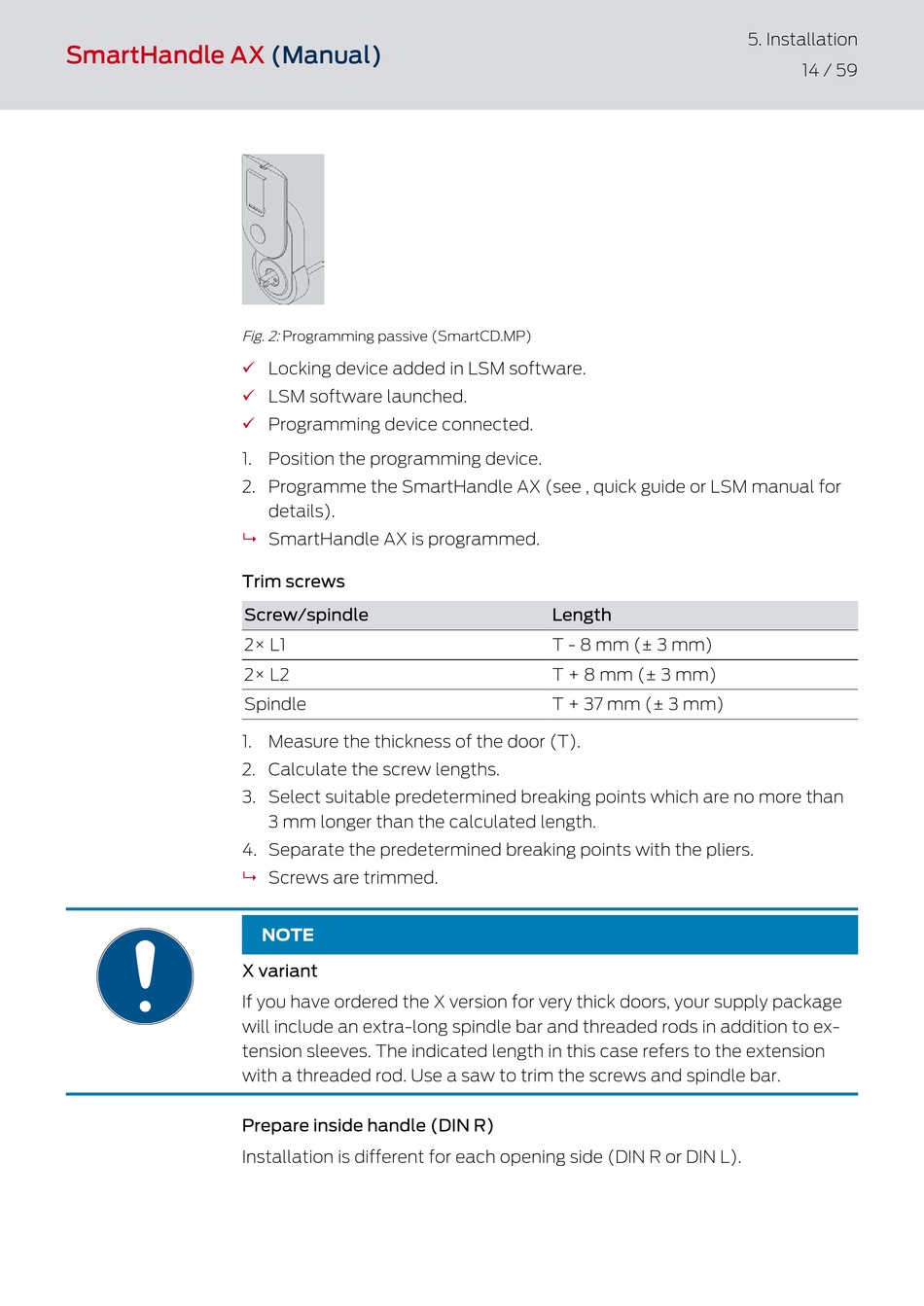

SmartHandle AX (Manual)
Fig. 2: Programming passive (SmartCD.MP)
Locking device added in LSM software.
ü
ü LSM software launched.
Programming device connected.
ü
1. Position the programming device.
2. Programme the SmartHandle AX (see , quick guide or LSM manual for
details).
9 SmartHandle AX is programmed.
Trim screws
Screw/spindle
2× L1
2× L2
Spindle
1. Measure the thickness of the door (T).
2. Calculate the screw lengths.
3. Select suitable predetermined breaking points which are no more than
3 mm longer than the calculated length.
4. Separate the predetermined breaking points with the pliers.
Screws are trimmed.
9
NOTE
X variant
If you have ordered the X version for very thick doors, your supply package
will include an extra-long spindle bar and threaded rods in addition to ex-
tension sleeves. The indicated length in this case refers to the extension
with a threaded rod. Use a saw to trim the screws and spindle bar.
Prepare inside handle (DIN R)
Installation is different for each opening side (DIN R or DIN L).
Length
T - 8 mm (± 3 mm)
T + 8 mm (± 3 mm)
T + 37 mm (± 3 mm)
5. Installation
14 / 59
