INSTALLATION INSTRUCTION FOR
CMAX-OUS-UW43-i53

Installation Mode 1

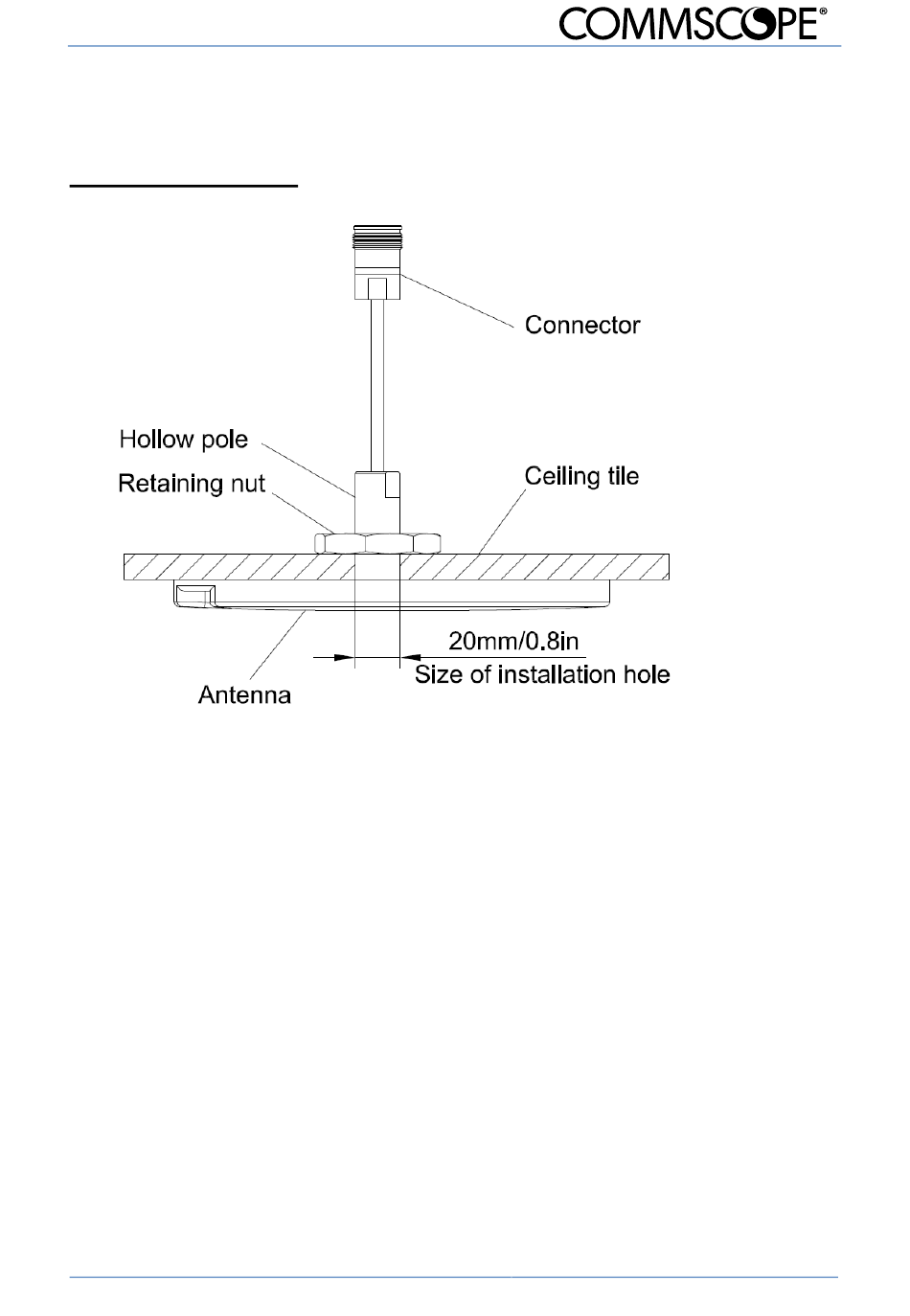

1) Cut a hole on ceiling with the diameter shown in the left picture.
2) Remove the retaining nut from the back of the antenna.
3) Feed the pigtail of the antenna through the hole.
4) Re-install the retaining nut so that it is close-fitting to the ceiling.
Technical Support:
M0149ALA_InstInstr_CMAX-OUS-UW43-i53
http://www.commscope.com/wisupport
