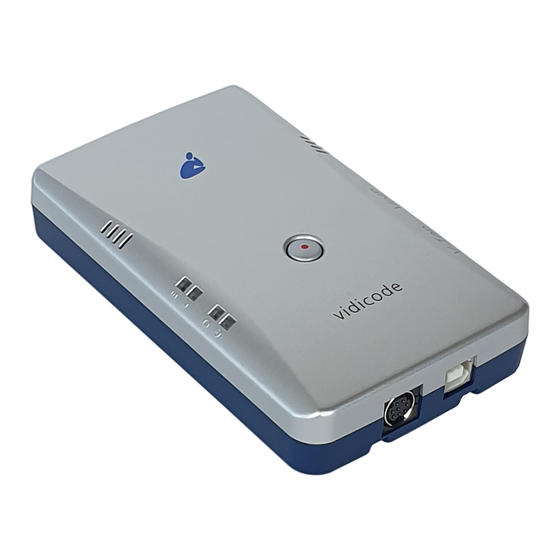

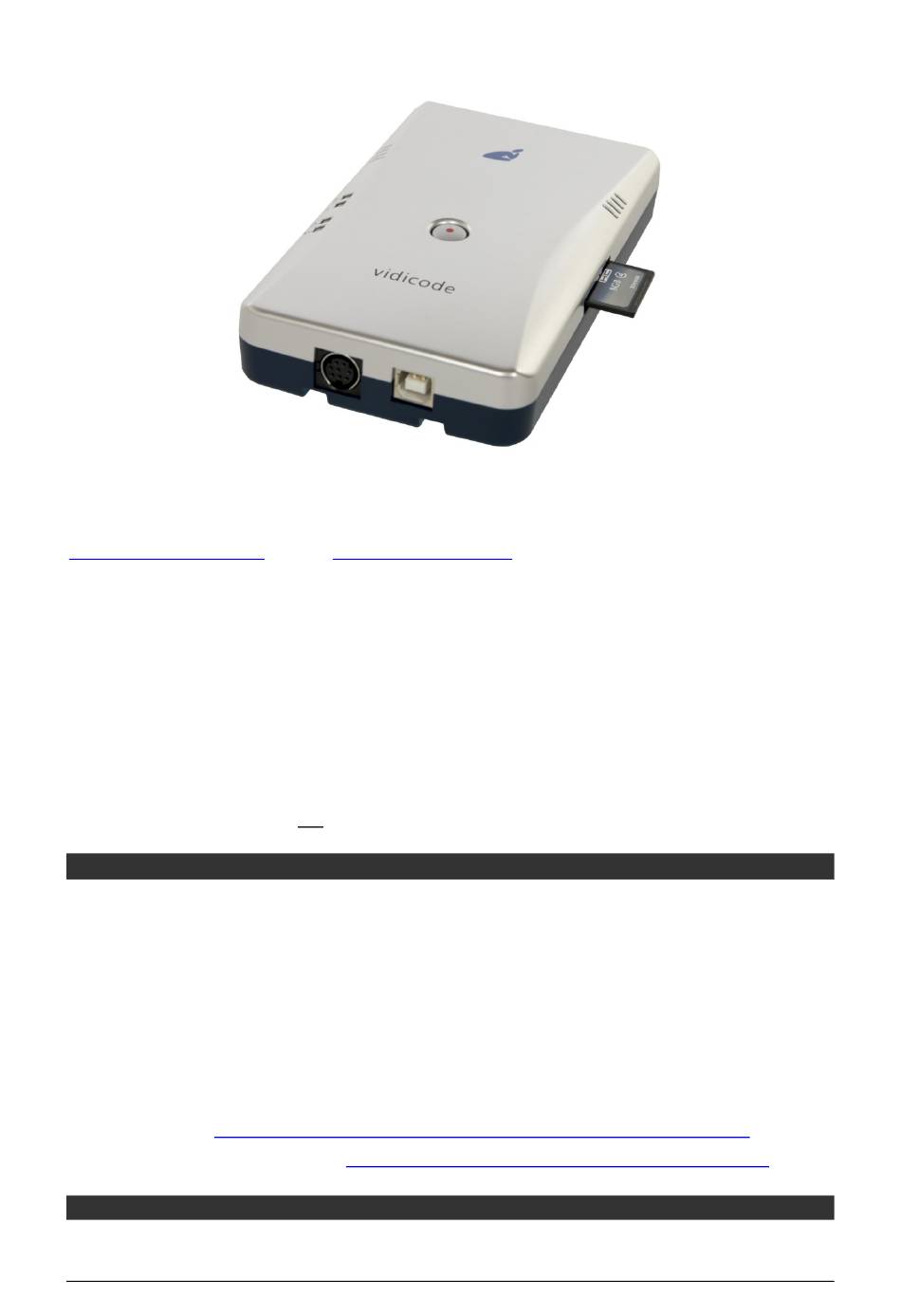

The V-Tap VoIP is a device that can capture VoIP telephony from a network and

store this data onto an SD card and/or send this data to a server, which can be a

Call Recorder Apresa

Technically, the V-Tap VoIP is a normal 4-port switch that can filter the network

traffic and pass the packets to the built-in microcontroller (internal mirroring).

The V-Tap VoIP unit itself must hold as many channel-licenses as the number of

VoIP phones to be recorded simultaneously.

NOTE1: The SD card must be formatted with the FAT32 file system. Cards above 32 GB (up to 2 TB)

are not tested and must be formatted as FAT32 first, before inserting them into the V-Tap.

NOTE2: Only ports PHONE2 and PHONE3 are suitable to connect a Power over Ethernet (PoE) loop.

The V-Tap itself does not generate PoE.

• V-Tap VoIP unit

• USB adapter

• USB cable

• LAN cable

• SD card

• 1 year Support & Update license (S&U)

• This Quick Guide

• Manual:

https://www.vidicode.com/download/v-tap-voip-manual-en/

• V-Archive PC software:

v1.19

Quick Guide for the V-Tap VoIP

or the

V-Archive software

BOX CONTENT & DOWNLOADS

https://www.vidicode.com/download/v-archive/

running on a PC.

1/4

Table of Contents

Need help?

Do you have a question about the V-Tap and is the answer not in the manual?

Page 1 NOTE1: The SD card must be formatted with the FAT32 file system. Cards above 32 GB (up to 2 TB) are not tested and must be formatted as FAT32 first, before inserting them into the V-Tap. NOTE2: Only ports PHONE2 and PHONE3 are suitable to connect a Power over Ethernet (PoE) loop.
Page 2 • By default, the V-Tap VoIP functions as a normal 4-port switch. • Connect the local network to any port on the V-Tap. • Connect one or more VoIP phones to any other port on the V-Tap. • For a PoE powered phone, use the PHONE2 and PHONE3 ports.
Page 3 • To setup V-Archive to receive data from the V-Tap, go to Options, Setup, Recording tab, and enable V-Tap connections: NOTE1: The PC’s IP address must be entered as the “Tunnel Server Address” in the V-Tap.
Page 4 BLUE LED blinks fast. 10) To see if the PC receives something from the V-Tap, it is possible to make a network trace for test purposes. In V-Archive, go to menu Actions and select ‘Network trace’, press Start, make a call, press Stop, wait a little and then Save.
