Permissible Installation Options; Stainless Steel Panel Kit Installation Requirements; Custom Wood Panel Dimensions And Installation; Requirements - Jenn-Air JS42NXFXDE Install

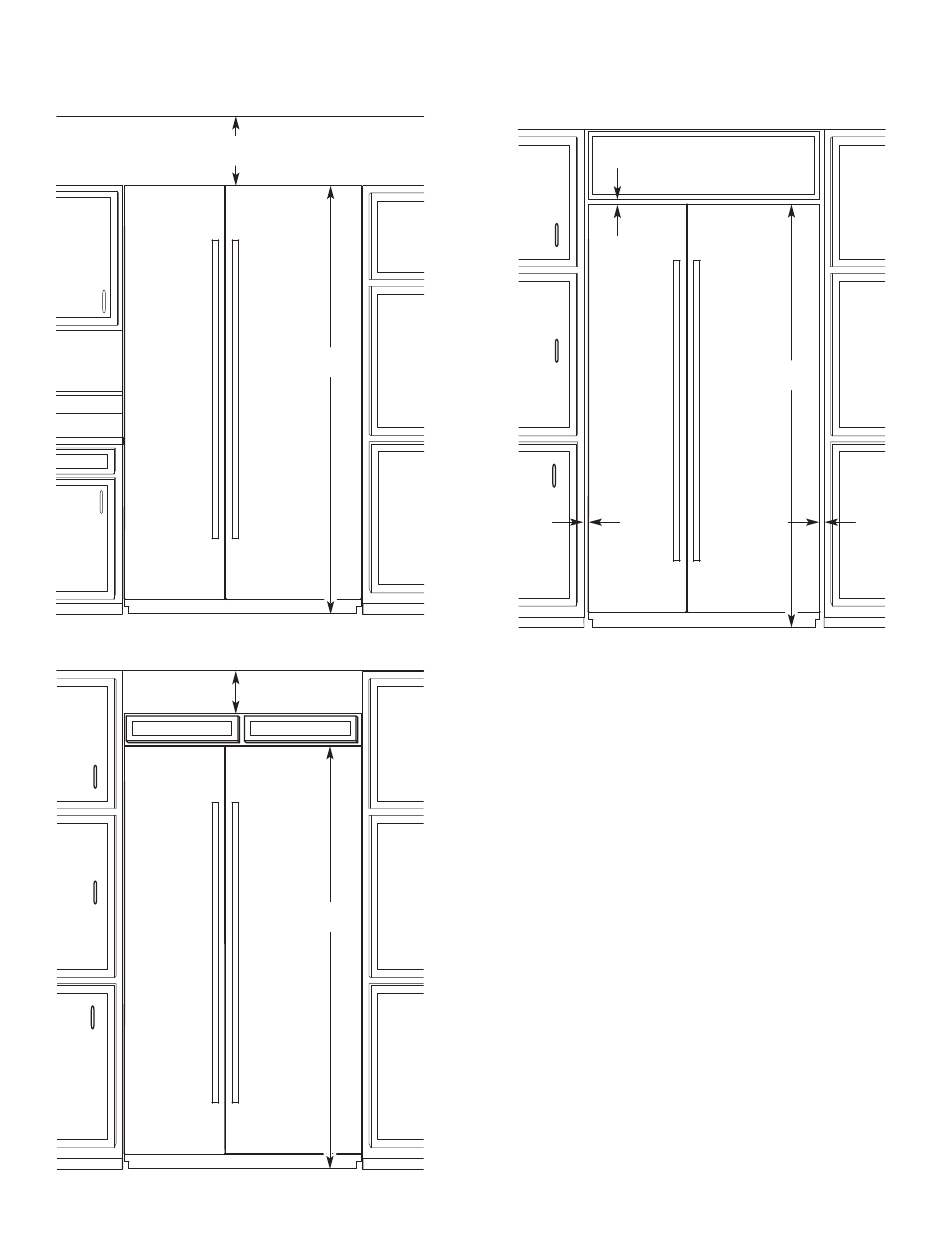

OPTION 1—OPEN TO CEILING
OPTION 2—FALSE FRONT (CABINET FACE ONLY)

PERMISSIBLE INSTALLATION OPTIONS

6" (15.24 cm)
min.
84"
(213.4 cm)
6" (15.24 cm)
min.
84"
(213.4 cm)
OPTION 3—CLOSED SOFFIT
1/8" (3.2 mm) gap
1/8"
(3.2 mm) gap
STAINLESS STEEL PANEL KIT
INSTALLATION REQUIREMENTS
Refer instructions received with full height door panel kit.
CUSTOM WOOD PANEL DIMENSIONS
AND INSTALLATION REQUIREMENTS
Refer instructions received with Armoire kit.
84"
(213.4 cm)
1/8"
(3.2 mm) gap
