Move Refrigerator To Final Location - Jenn-Air JS42NXFXDE Install

3.
Using the original holes and the screws removed in
Step 2, fasten the side trim to the refrigerator cabinet.
NOTE : Make sure to fasten each trim piece to the
side of the refrigerator cabinet from which it was
removed. The tapered shaped edge should be
forward with the notches aligning with the door
hinges.

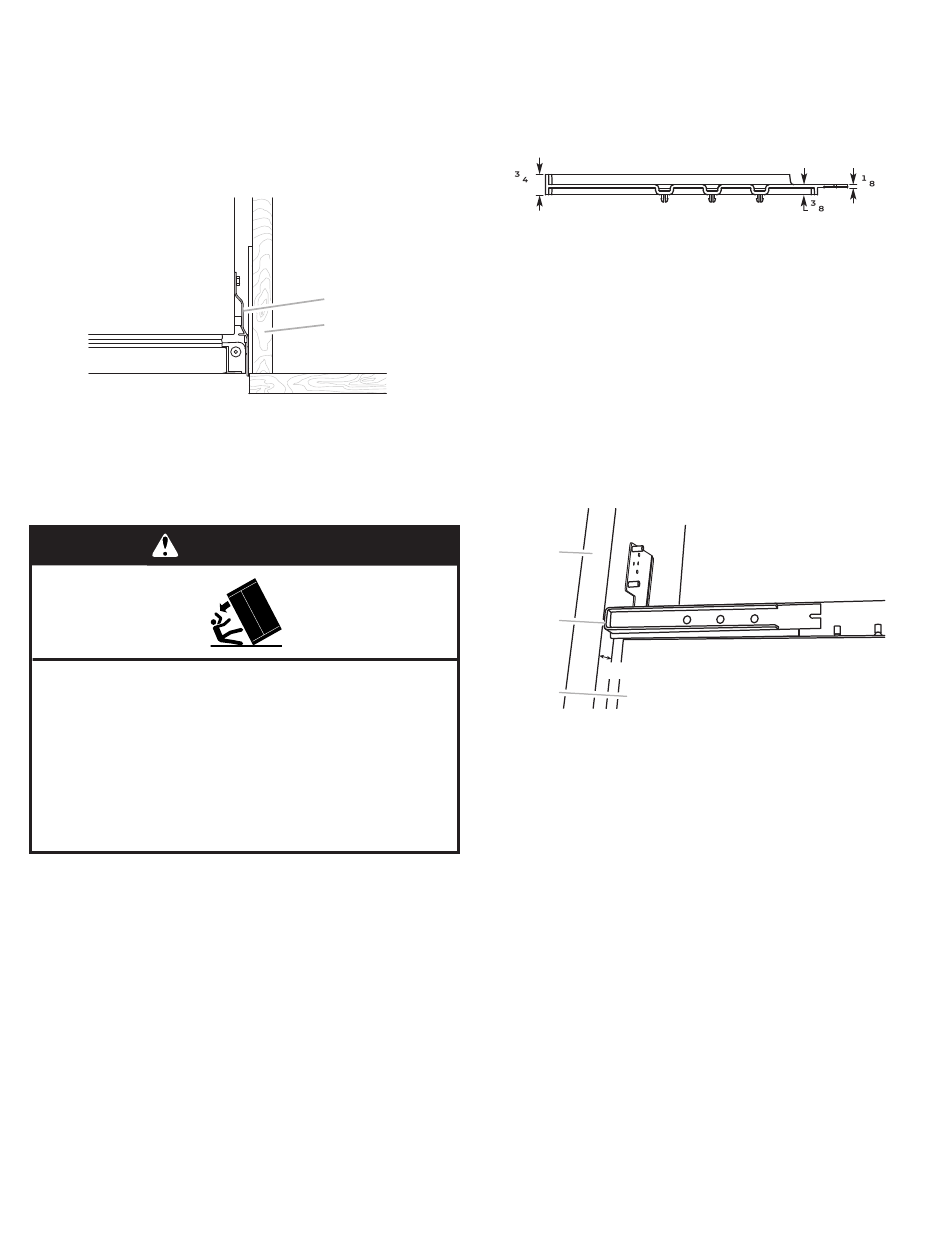

TOP VIEW
C
A. Side trim
B. Adjacent cabinet
MOVE REFRIGERATOR TO FINAL
LOCATION
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT :
A flush installation is NOT possible with a 24" (60.9
cm) deep opening.
To avoid floor damage, make sure levelers are raised
(not touching floor) and refrigerator is on rollers
before moving.
Use the installation block, attached to the door hinge,
as a reference to make sure the refrigerator is pushed
back far enough into the opening, so that when
the panels are installed they will be flush with the
adjacent cabinets.
16
A
B
C. Door
After the refrigerator is leveled and aligned, remove
the installation block from the door hinge and use
it to check the spacing between the panels and
adjacent cabinets.
NOTE : The installation block is designed to provide
accurate spacing for 3/4" (1.9 cm), 3/8" (9.53 mm) and 1/8"
(3.18 mm).
⁄ "
(1.9 cm)
1.
Place top of cardboard carton or plywood under
refrigerator. Remove dolly.
2.
Move the refrigerator straight back and evenly into
the opening. Be sure that the water tubing is not
kinked and the power supply cord is on top of the
refrigerator.
NOTE : If the power supply cord is behind the
refrigerator, it will not install properly.
3.
Make sure the installation block is flush with the
adjacent cabinets.
NOTE : To achieve a flush installation, it is critical to
verify a 3/4" (1.9 cm) depth from the front face of the
adjacent cabinetry to the refrigerator.
A
B
3/4 " (1.9 cm)
C
A. Adjacent cabinet or wall
B. Installation block
C. Face of refrigerator
⁄ "
(3.18 mm)
⁄ "
(9.53 mm)
