TO INSTALL ANTI-TIP BOARDS
1.
Mark the stud locations on rear wall.
2.
Securely attach two 2" x 4" x 32" (5 cm x 10 cm x 81 cm)
boards to wall studs behind refrigerator. Use six
#8 x 3" (7.6 cm) (or longer) wood screws. The wood
screws must be screwed into the studs at least
1½" (3.8 cm). The boards must overlap the compressor
cover.
2" (5 cm)
C

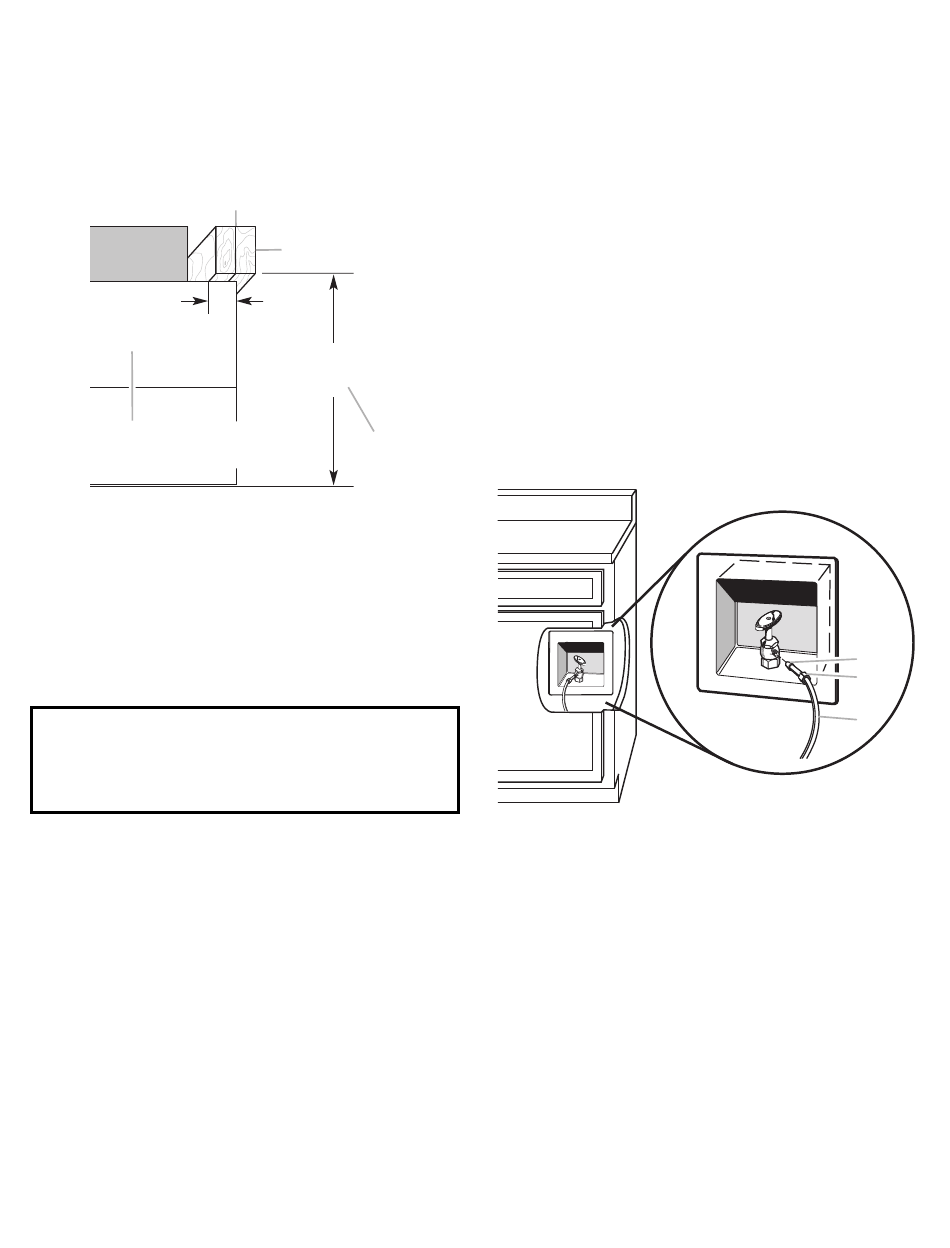

A. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
B. Attach to studs with six #8 x 3" (7.6 cm) screws.
C. Compressor cover
D. Distance from bottom of anti-tip boards to floor

CONNECT THE WATER SUPPLY

Read all directions before you begin.
IMPORTANT :
If you turn the refrigerator on before the water line is
connected, turn the ice maker OFF.
Connect to potable water supply only.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
A
B
84"
(213.4 cm)
D
CONNECT TO WATER LINE
PARTS NEEDED
Minimum 7 ft (2.13 m) flexible, codes-approved water
supply line
STYLE 1—SHUTOFF VALVE CONNECTION
NOTE : If your water line connection does not look like
Style 1, see "Style 2—Copper Line Connection."
1.
Unplug refrigerator or disconnect power supply.
IMPORTANT :
There is not enough clearance to achieve a flush
installation if a water shutoff valve is located in the
wall behind the refrigerator. The water shutoff should
be located in the base cabinet on either side of the
refrigerator.
Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and
air in the water line. Allow enough flow so that water
becomes clear. Flushing the water line may help
avoid filters and/or water valves from becoming
clogged.
2.
Connect the flexible, codes-approved water supply
line to the water shutoff valve by threading the
provided nut onto the shutoff valve as shown.
A. Bulb
B. Nut
C. Water tubing
3.
Place the end of the tubing into a bucket, and turn
shutoff valve ON.
4.
Check for leaks. Tighten any nuts or connections
(including connections at the valve) that leak.
STYLE 2—COPPER LINE CONNECTION
NOTE : If there is a water supply line that meets the
specifications in "Water Supply Requirements," proceed
to "Connecting to Refrigerator." If not, use the following
instructions to connect to the household cold water
supply.
A
B
C
