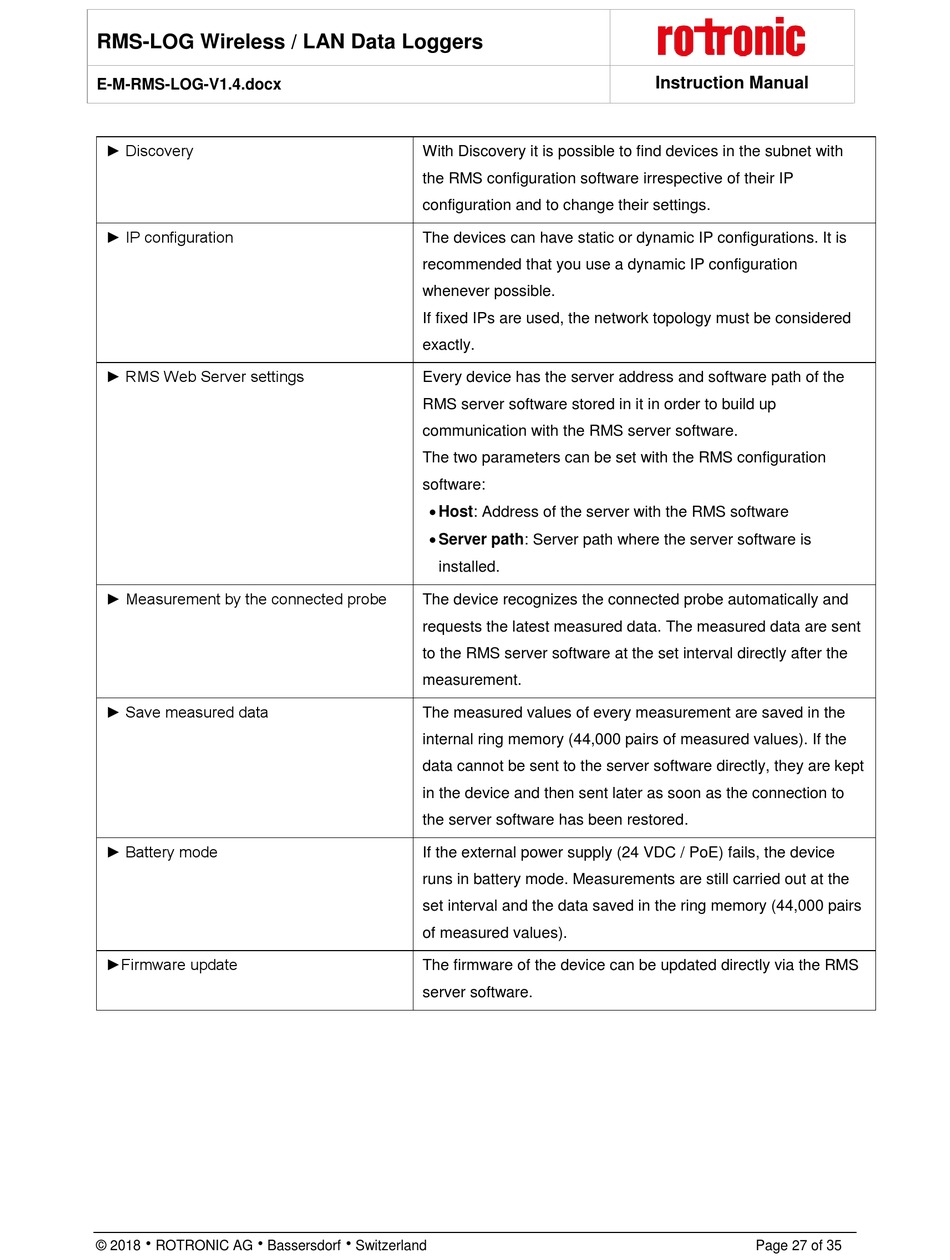

Rotronic RMS Wall mount Data Logger Instruction Manual page 27

RMS-LOG Wireless / LAN Data Loggers
E-M-RMS-LOG-V1.4.docx
► Discovery
► IP configuration
► RMS Web Server settings
► Measurement by the connected probe
► Save measured data
► Battery mode
►Firmware update
 
© 2018 ROTRONIC AG Bassersdorf
With Discovery it is possible to find devices in the subnet with
the RMS configuration software irrespective of their IP
configuration and to change their settings.
The devices can have static or dynamic IP configurations. It is
recommended that you use a dynamic IP configuration
whenever possible.
If fixed IPs are used, the network topology must be considered
exactly.
Every device has the server address and software path of the
RMS server software stored in it in order to build up
communication with the RMS server software.
The two parameters can be set with the RMS configuration
software:
 Host: Address of the server with the RMS software
 Server path: Server path where the server software is
installed.
The device recognizes the connected probe automatically and
requests the latest measured data. The measured data are sent
to the RMS server software at the set interval directly after the
measurement.
The measured values of every measurement are saved in the
internal ring memory (44,000 pairs of measured values). If the
data cannot be sent to the server software directly, they are kept
in the device and then sent later as soon as the connection to
the server software has been restored.
If the external power supply (24 VDC / PoE) fails, the device
runs in battery mode. Measurements are still carried out at the
set interval and the data saved in the ring memory (44,000 pairs
of measured values).
The firmware of the device can be updated directly via the RMS
server software.

