Summary of Contents for Rotronic RMS

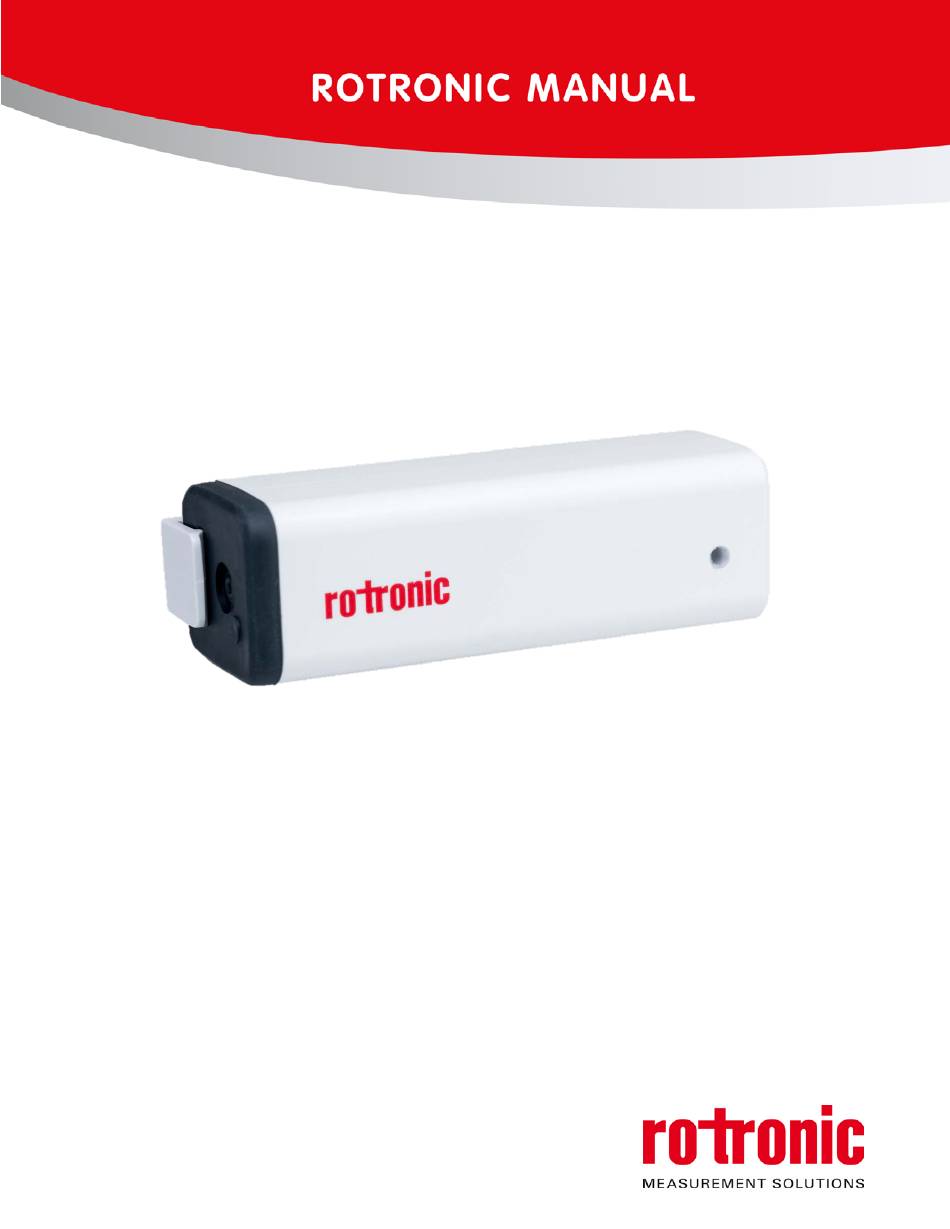

- Page 1 RMS Mini Wireless Data Logger © 2016 ROTRONIC AG Bassersdorf Switzerland...
-
Page 2: Table Of Contents
Installation ............................10 Electrical Connections ........................12 Battery ..............................12 Operation .............................. 13 Default Configuration ......................... 13 Integration in the RMS-WEB Software ....................13 Function Overview ..........................15 Maintenance ............................16 Battery Replacement .......................... 16 Firmware Update..........................17 Technical Specifications ........................18 Accessories ............................ -
Page 3: Overview
E-M-RMS-MLOG-868-V1_0.docx Scope: This manual is valid for the RMS wireless data logger from firmware version V1.x. The low-order digit of the firmware version stands for minor changes, e.g. correction of errors, that do not influence the main functionality of the device. -
Page 4: Device Overview
RMS network. Humidity, temperature and switch states can be configured per software. Standard Logger Records the measured data of the digital HygroClip HCD or other RMS probes. Stored in the ring memory, the data are then sent to the server software. Output Module... -
Page 5: Rms Mini Data Logger
Note on the batteries: The AA batteries are lithium thionyl chloride batteries available in the industrial trade. All RMS input modules are designed for this type of battery. Only batteries of the same type or with identical characteristic values may be used as replacement batteries. -
Page 6: Measured Parameters
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx 1.4.1 Type of Battery Battery Specifications Manufacturer EVE - Energy Very Endure Article ER14505 Illustration Type Li-SOCl2 Capacitance 2700 mAh Voltage 3.6 V Dimensions AA (H: 50.3 mm, D: 14.55 mm) Measured Parameters Depending on the version, the mini data logger has different inputs. -
Page 7: Rtcc (Real Time Clock Calendar)
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx RTCC (Real Time Clock Calendar) The device has a real time clock calendar. The time is synchronized continuously when connected to the server. Data Logging and Measurement Interval The values of every measurement are saved in the memory with the time-stamp. At a measurement interval of one minute, it is possible to save data of one month, which corresponds to 10,000 pairs of measured values. -
Page 8: Interface
The logger is operated completely via the wireless interface. 1.10 Software Compatibility The logger is designed for use with the RMS server software (local installation or Rotronic Cloud). The data logger can alternatively also be operated with the RMS configuration software (standalone software). -
Page 9: Dimensions
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Dimensions All dimensions are shown in Figure 2. Figure 2: Dimensions of the housing © 2016 ROTRONIC AG Bassersdorf Switzerland Page 9 of 22... -
Page 10: Installation
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Installation The following instructions describe installation of the data logger step by step. Insert the battery. Make sure it is inserted correctly. The poles are marked on the battery and on the electronics. - Page 11 RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx The housing is put in the wall bracket and clicked into place. The device can then be integrated into the server software. The procedure is described in the manual E-SM-RMS-WEB. ...
-
Page 12: Electrical Connections
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Electrical Connections Battery Lithium batteries of the type AA with 3.6 V are used, per section 1.4.1. Make sure they are inserted correctly. The poles are marked on the battery and on the electronics. -
Page 13: Operation
Integration in the RMS-WEB Software To integrate the device in an RMS-WEB system, pairing mode must be enabled via the software on a gateway within wireless range. The search for the device is started by pressing a button. If it is possible for the device to connect with the gateway, this is shown by orange flashing. - Page 14 Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Press the button on the device to confirm. The wireless data logger stops flashing. Configure the device. Finish configuration. You can find details in the instruction manual for the RMS server software: E-SM-RMS-WEB © 2016...
-
Page 15: Function Overview
Function Overview Overview of the main software functions of the device ► Measurement The measured data are sent to the RMS server software at the set interval directly after the measurement. ► Save measured data The measured values of every measurement are saved in the internal ring memory (10,000 pairs of measured values). -
Page 16: Maintenance
Even the best technology needs regular maintenance. This chapter describes the most important points. Battery Replacement The batteries (see chapter 1.4.1 for the type of battery) of RMS devices typically last 3 years. The device shows automatically when the battery needs to be replaced. -
Page 17: Firmware Update
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Firmware Update The firmware can be updated with the RMS server software. Firmware updates are available for downloading on the ROTRONIC website. © 2016 ROTRONIC AG Bassersdorf Switzerland... -
Page 18: Technical Specifications
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Technical Specifications General Device type RMS Mini Data Logger • Temperature (NTC) • Temperature (NTC) & light • Measured parameters Voltage • Current • Switch contact IP protection class IP65 Range of application -40..85 °C / 0..100 %RH... - Page 19 RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Conformity EMC Directive: 2014/30/EU EN 61000-6-1: 2007 EN 61000-6-2: 2005 EMC directives EN 61000-6-3: 2007+A1:2011+AC:2012 EN 61000-6-4: 2007+A1:2011 EN 61326-1: 2013 Performance criterion: www.rotronic.com Soldering material Lead free (RoHS Directive 2011/65/EU)
-
Page 20: Accessories
RMS Accessories Order Code Description RMS-GW-868 Gateway, LAN to 868 MHz AC1321 Mounting kit with Allen key and mounting cone RMS-NPK Network planning kit: wireless dongle, RMS mini logger © 2016 ROTRONIC AG Bassersdorf Switzerland Page 20 of 22... -
Page 21: Additional Documents
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Additional Documents Document Name Contents E-IM-RMS-WEB Instruction Manual: System Installation E-SM-RMS-WEB Instruction Manual: System Startup E-OM-RMS-WEB Instruction Manual: System Operation E-M-RMS-GW-868 Instruction Manual: Gateway E-M-RMS-LOG Instruction Manual: Data Logger ... -
Page 22: Document Version
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-MLOG-868-V1_0.docx Document Version Version Date Notes V1_0 October 2016 First version © 2016 ROTRONIC AG Bassersdorf Switzerland Page 22 of 22...
