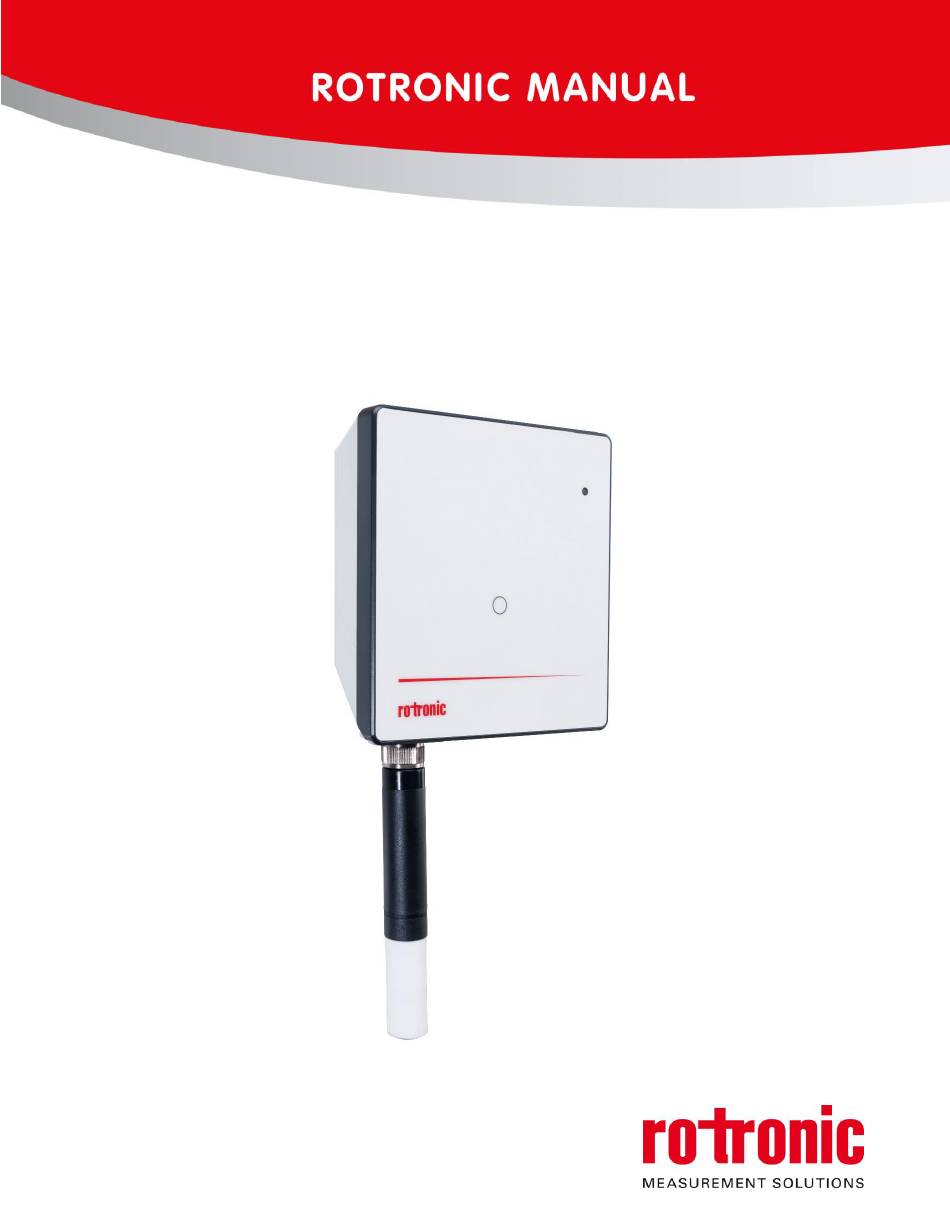

- Page 1 RMS Wall mount Data Logger © 2018 ROTRONIC AG Bassersdorf Switzerland...
-
Page 2: Table Of Contents
Maintenance ............................28 Battery Replacement .......................... 28 Firmware Update..........................29 Technical Specifications ........................30 Accessories ............................33 RMS Accessories ..........................33 Additional Documents ......................... 34 Document Version ..........................35 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 2 of 35... -
Page 3: Overview
RMS System Overview The Rotronic Monitoring System (RMS) is a network comprising various devices and the RMS server software. The software is the heart of the system. It collects all measured data of the devices and saves it in the database. -
Page 4: Device Overview
The gateway is the connecting element between Ethernet and wireless network and forwards the data flow from the loggers to the data centre. Except for the Mini Logger © 2018 ROTRONIC AG Bassersdorf Switzerland Page 4 of 35... -
Page 5: Rms Data Logger
Under each measurement value, the name of the measuring point will be indicated. The parameter will be shown on the right, next to the measurement value Various notifications can also be displayed: Error: E Alarm: A Warning: W Reminder: R © 2018 ROTRONIC AG Bassersdorf Switzerland Page 5 of 35... -
Page 6: Power Supply
Only batteries of the same type or with identical characteristic values may be used as replacement batteries. 1.5.1 Type of Battery Battery Specifications Article RMS-BAT( ER14505M, multiple manufacturer, please see for Details www.rotronic.com) Type Li-SOCl2 Capacitance ~2200 mAh Voltage 3.6 V... - Page 7 Data logger, 2 x digital input, LAN, DIN Rail Digital Output Modules RMS-DO-L-R Data logger, 2 x digital output, LAN, DIN Rail Display Modules RMS-D-L Display, 4 x Measurement points, LAN © 2018 ROTRONIC AG Bassersdorf Switzerland Page 7 of 35...
-
Page 8: Rtcc (Real Time Clock Calendar)
Shows the current status 1 x green, the connection to the server is good 2 x red, there is no connection to the server LED Status Indicator for Wireless Devices © 2018 ROTRONIC AG Bassersdorf Switzerland Page 8 of 35... -
Page 9: 1.10 Interface
The logger is operated completely via the LAN or wireless interface. 1.11 MODBUS communication protocol For direct connection to other systems, the device provides a MODBUS TCP server. To following data is available via MODBUS communication: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 9 of 35... - Page 10 The swap mode defines how a float32 value is represented in MODUBS data structure. The settings must be done with the RMS-CONFIG software. Factory settings: WORD-Swap Example: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 10 of 35...
- Page 11 31300 0x7A44 31004 0x0000 Software Compatibility The logger is designed for use with the RMS server software (local installation or Rotronic Cloud). The data logger can alternatively also be operated with the RMS configuration software (standalone software). ...
-
Page 12: Dimensions
The RMS data logger, the gateway and the display are all integrated in the same wall housing. All dimensions are shown in Figure 2. Figure 2: Dimensions of the wall housing Figure 3: Mounting bracket with dimensions for drill holes © 2018 ROTRONIC AG Bassersdorf Switzerland Page 12 of 35... -
Page 13: Installation
The flap springs open. Press the cover to the back and take off from the basic unit. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 13 of 35... - Page 14 Make sure they are inserted correctly. The poles are marked on the battery and in the battery compartment. Only the mounting points provided should be used for mounting. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 14 of 35...
- Page 15 The connected cable may not exceed a length of 30 m at most. Disruptions can occur in operation if a longer cable is used! © 2018 ROTRONIC AG Bassersdorf Switzerland Page 15 of 35...
- Page 16 The screws must not be tightened. Only use the screws provided in the package. Screw specifications: M3.5. head strength 2.5 mm, head diameter 7 mm © 2018 ROTRONIC AG Bassersdorf Switzerland Page 16 of 35...
- Page 17 The housing is put in the wall bracket and clicked into place. The device can then be integrated into the server software. The procedure is described in the manual E-SM-RMS-WEB. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 17 of 35...
- Page 18 RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-LOG-V1.4.docx Insert the probe and fasten with the thumb screw. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 18 of 35...
-
Page 19: Drilling Template Wall Bracket
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-LOG-V1.4.docx Drilling Template Wall Bracket Figure 4: Drawing of the wall bracket (not to scale) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 19 of 35... -
Page 20: Electrical Connections
Lithium batteries of the type AA with 3.6 V are used, per section 1.5.1. Make sure they are inserted correctly. The poles are marked on the battery and in the battery compartment. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 20 of 35... -
Page 21: Operation
Configuration of the LAN Devices with RMS-CONFIG If you do not want to connect the device to the Rotronic Cloud, the server must be configured in the device. Connect the device to the local network as described in section 3 . Start the RMS configuration software. -
Page 22: General Manipulations
The cable can be released with a blunt round object (e.g. ballpoint pen) and the connector pulled out (see Figure 6). Figure 6: Removing the Ethernet cable © 2018 ROTRONIC AG Bassersdorf Switzerland Page 22 of 35... -
Page 23: Integration In The Rms-Web Software
The devices can also be given a static IP address if there is no DHCP server available in the network. Integration of the Data Logger (Pairing) in 6 Steps If you do not want to connect the device to the Rotronic Cloud, the server must be configured in the device. - Page 24 RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-LOG-V1.4.docx Press the button on the device briefly. The device stops flashing. Configure the device. The RMS-D-L: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 24 of 35...
- Page 25 Select the gateway you want your wireless data logger to be connected to. The selected gateway then changes to pairing mode and flashes orange. Press the button on the device to confirm. The wireless data logger stops flashing. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 25 of 35...
-
Page 26: Function Overview
Finish configuration. You can find details in the instruction manual for the RMS server software: E-SM-RMS-WEB Function Overview Overview of the main software functions of the device © 2018 ROTRONIC AG Bassersdorf Switzerland Page 26 of 35... - Page 27 (44,000 pairs of measured values). ►Firmware update The firmware of the device can be updated directly via the RMS server software. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 27 of 35...
-
Page 28: Maintenance
The time setting of the data logger is synchronized automatically after the battery replacement. Important: The battery life depends on the ambient temperature. Low or high temperatures can lead to a shorter battery life. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 28 of 35... -
Page 29: Firmware Update
RMS-LOG Wireless / LAN Data Loggers Instruction Manual E-M-RMS-LOG-V1.4.docx Firmware Update The firmware can be updated with the RMS server software. Firmware updates are available for downloading on the Rotronic website. © 2018 ROTRONIC AG Bassersdorf Switzerland... -
Page 30: Technical Specifications
IP65 protection is only fulfilled, when rubber plug is used for cabling. IP65 protection is only fulfilled, when rubber plug is used for cabling. Power supply requirements: 24 VDC ±10 % / >4 W / limited power source © 2018 ROTRONIC AG Bassersdorf Switzerland Page 30 of 35... - Page 31 EMC directives EN 55011:2016, class B IEC CISPR 11:2015; class B RMS-LOG-L EN 55032:2016 IEC CISPR 32:2016 EN 61010-1:2010 IEC 61010-1:2010 EN 50581:2012 IEC 50581:2013-02 Performance criterion: www.rotronic.com © 2018 ROTRONIC AG Bassersdorf Switzerland Page 31 of 35...
- Page 32 EN 300220-2: 2013-02 / V2.4.1 EN 62479: 2010 EN 62368-1: 2014 + AC:2015 + Ber 1:2016-11 IEC 62368-1: 2014 + Cor.:2015 EN 50581:2012 IEC 50581:2013-02 Performance criterion: www.rotronic.com EMC Directive: 2014/30/EU LVD Directive: 2014/35/EU EN 61326-1:2012 (Industrielle Umgebung) IEC 61326-1:2013 (Industrial Environment) EMC directives EN 55011:2016, class B IEC CISPR 11:2015;...
-
Page 33: Accessories
Standard probe, anthracite, CO2 RMS-GW-868 Gateway, LAN to 868 MHz AC1321 Mounting kit with Allen key and mounting cone RMS-NPK Network planning kit: wireless dongle, RMS mini logger © 2018 ROTRONIC AG Bassersdorf Switzerland Page 33 of 35... -
Page 34: Additional Documents
Instruction Manual: System Installation E-SM-RMS-WEB Instruction Manual: System Startup E-OM-RMS-WEB Instruction Manual: System Operation E-M-RMS-GW-868 Instruction Manual: Gateway E-M-RMS-MLOG Instruction Manual: Mini Logger E-M-RMS-LOG-R Instruction Manual: Din rail logger © 2018 ROTRONIC AG Bassersdorf Switzerland Page 34 of 35... -
Page 35: Document Version
8 Technical specification: Updated table 9.1 RMS accessories: Additional accessories 1.6 Measured parameter: Updated table V1.4 April 2018 8 Technical specification: Updated table © 2018 ROTRONIC AG Bassersdorf Switzerland Page 35 of 35...
