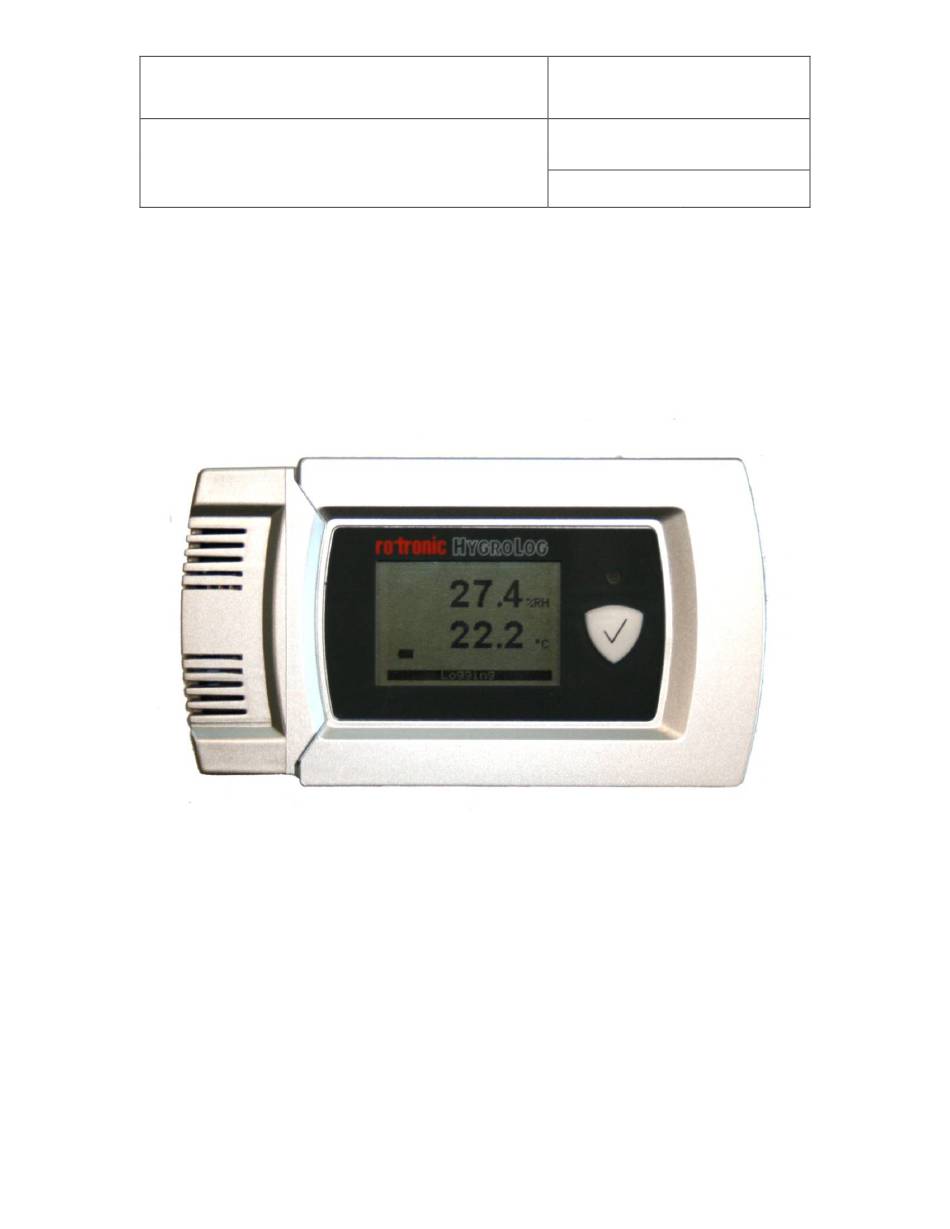

IN-E-HL20-V1_16
Document code
HygroLog HL20 and HL21 data logger:
User Guide
Document title
© 2015; Rotronic AG
Find Quality Products Online at:
HygroLog HL20 and HL21 Data Logger
User Guide
GlobalTestSupply
www.
Rotronic AG
Bassersdorf, Switzerland
Unit
Instruction Manual
Document Type
Page
1 of 23
IN-E-HL20-V1_16
.com
sales@GlobalTestSupply.com
Advertisement
Table of Contents
Related Manuals for Rotronic HygroLog HL21
Summary of Contents for Rotronic HygroLog HL21
- Page 1 HygroLog HL20 and HL21 data logger: Instruction Manual User Guide Document Type Page 1 of 23 Document title HygroLog HL20 and HL21 Data Logger User Guide © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Firmware updates ......................17 Technical data ........................18 Specifications ........................18 Dew point accuracy ......................20 Accessories .......................... 21 Supporting documents ......................22 Document releases ......................23 © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 3 This manual is valid for instruments with firmware version 3.x or higher. Changes in the last character of the version number reflect minor changes in the internal software of the instrument that do not affect the manner in which the instrument should be operated. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www.
-
Page 4: Overview
Configuration of the HL20 and HL21, as well as the downloading and viewing of recorded data, requires a PC with the ROTRONIC HW4 software installed as well as a service cable such as the AC3006... -
Page 5: General Description
The following accessories are required in order to be able to configure the logger and to download and view the recorded data: o Cable AC3006 or equivalent (plugs into a USB port of the PC) o PC with the ROTRONIC HW4 software installed (version 2.4.0 or higher) © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. -
Page 6: Batteries
Because of the requirement to always keep track of the date and time, the HL20 and HL21 do not have a power on/off switch. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. -
Page 7: Memory
One end of the cable plugs into the service / data connector. The other end plugs into the USB of a PC with the ROTRONIC HW4 software installed. See “Initial start-up” for the location of the service / data connector. -
Page 8: Optional Display
-10…60 °C with the factory supplied alkaline batteries o 0…100 %RH, non condensing Models with display: o 0…50 °C with the factory supplied alkaline batteries o 0…100 %RH, non condensing © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 9: Configurable Settings
Configuration of the data logger by the user and access to its functions requires a PC with the ROTRONIC HW4 software (version 2.4.0 or higher) installed. Service cable AC3006 is used to connect the service / data connector to a USB port of the PC. -
Page 10: Factory Default Settings
Limit humidity to 100 %RH Enabled Out-of-limit value alarm Disabled Data recording Stopped (loop mode – 10 min. interval) Major sensor failure alarm Enabled (cannot be disabled) Simulator mode Disabled © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 11: Data Logging
The data logger has an internal real time clock that is used to associate a date and time stamp with each data record. When data recording is either started or stopped using the ROTRONIC HW4 software, the real time clock is automatically synchronized with the PC clock. -
Page 12: Operation
In addition to the measured values, the display also provides information such as battery charge and data logger status. 3-segment battery charge indicator Message bar For configuration instructions see the following HW4 manual: E-M-HW4v3-F2-018. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 13: Initial Start-Up
The battery compartment is located on the back panel and can be opened after loosening the screw that holds the cover in place Cover screw Insert three fresh AA alkaline batteries in the battery compartment. Be sure to observe the polarity. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 14 After installing the HW4 software and prior to running HW4, connect cable AC3006 to a USB port of the PC. The PC will detect the cable and ask for the appropriate driver. The ROTRONIC USB driver (ftdibus.inf) is located in a folder named USB_Driver which is in the HW4 installation folder.
-
Page 15: Recording And Displaying Data (Models Without Display)
5 seconds The ROTRONIC HW4 software is required to view the measured or calculated data on a PC monitor. Connect the data logger to the HW4 PC as explained under “Initial Start-up”. HW4 is also required to download and save the recorded data to disk. -
Page 16: Practical Advice For Measuring Temperature And Humidity
Non-moving air is an excellent insulator. When there is no air movement, surprising differences in temperature and humidity can noted over short distances. Air movement at the probe generally results in measurements that are both faster and more accurate. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. -
Page 17: Maintenance
Long term stability of the ROTRONIC Hygromer humidity sensor is typically better than 1 %RH per year. For maximum accuracy, calibration of the HL20 should be verified every 6 to 12 months. -
Page 18: Technical Data
Loop: oldest data is dumped to make room for latest data Log interval Min. 5 sec, up to1 hour in 5 sec. increments Interface for data download Internal connector, located under protective cover © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 19 HL20 / HL21 -10….60 °C (models w/o display), 0….50 °C (models with display) Operating limits 0…100 %RH, non condensing Critical environments Humidity sensor: as per DV04-14.0803.02 - Critical chemicals © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at:...
-
Page 20: Dew Point Accuracy
Example: at a temperature of 20 ˚C, a dew point value of -37 ˚C is measured with an accuracy of ± 1.0 ˚C or better. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. -
Page 21: Accessories
21 of 23 Document title Accessories For accessories and parts such as the HW4 configuration software, service cables, calibration accessories and spare dust filters, please see document E-M-HC2-accessories. © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 22: Supporting Documents
3000 devices E-M-AC3000-CP AirChip 3000 Communication Protocol Temperature and humidity calibration basics E-M-CalBasics Instructions for using the ROTRONIC humidity standards E-T-HumiDefs Humidity Definitions Note: All document file names have an extension corresponding to the document release number. This extension is not shown in the above table. -
Page 23: Document Releases
Feb. 10, 2015 Corrected accuracy, Pt100 specification April 16, 2015 General rework, related documents adapted April 23, 2015 Accuracy of RTC specified June 24, 2015 Accuracy updated © 2015; Rotronic AG IN-E-HL20-V1_16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
