Rotronic RMS MINI LOGGER Short Instruction Manual

RMS M
Short Instruction Manual
1 GENERAL DESCRIPTION

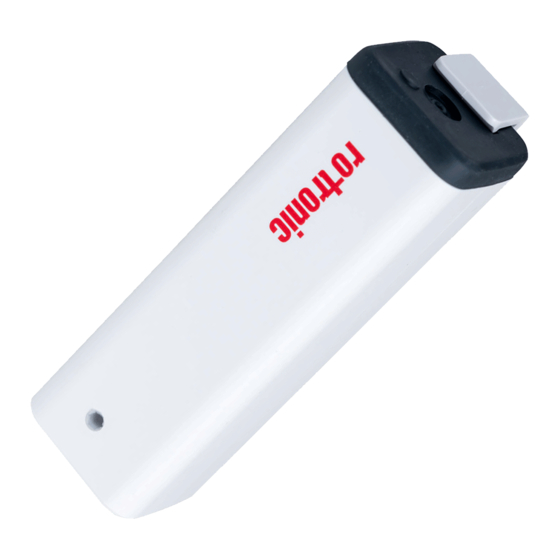

Congratulations on your new RMS MINI Logger. The MINI Logger has an internal data memory of
10,000 measured values and transmits these values continuously to the gateway and RMS soft-
ware by radio. These short instructions describe the main functions of the device.
Please read this short manual and the instruction manual on www.rotronic.com/rms
carefully.

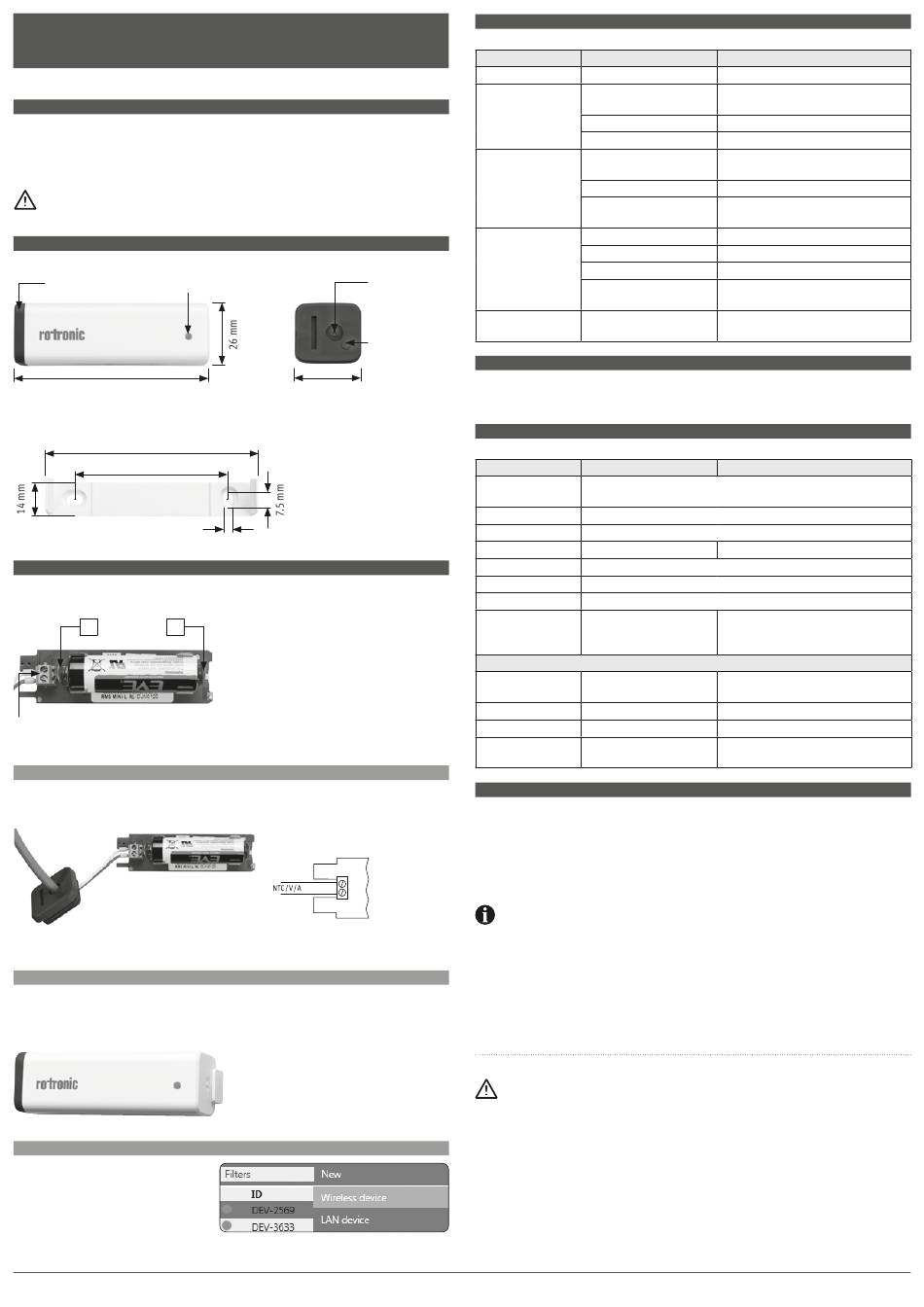

2 DIMENSIONS / CONNECTIONS
Top view
Rubber cap Status LED
83 (87*) mm
Wall bracket
87.4 mm
65 mm
3 INSTALLATION AND SETUP
Remove the black rubber cap and pull out the PCB board. Insert the battery by following the polar-
ization sign. After the battery is inserted, the MINI-Logger starts to work.
+ –
Terminal to connect
external elements
3.1 CONNECTION OF EXTERNAL ELEMENTS (RMS-MLOG-T10-915, RMS-MADC-915-A)
Connect the external element to the terminal. The rubber cap has a hole as lead through (to be
pierced with a sharp object).
3.2 POSITIONING OF THE MINI LOGGER / MECHANICAL INSTALLATION
Choose a representative position for the installation of the Logger. Avoid disruptive infl uences
such as sunlight, heating elements, etc. The MINI Logger can be mounted easily with the wall
bracket. Screws, and anchor are provided with each MINI logger.
3.3 INTEGRATION OF THE MINI LOGGER
Log into the RMS. Select Extras > Setup >
Devices > New > Wireless Device .
Follow the instructions given by the
software.
English
L
INI OGGER
Rubber cap (front view)
29 (32*) mm
* with wall bracket
3.7 mm
RMS-MLOG-T10-915
RMS-MADC-915 (A)
4 LED STATUS
MINI Logger Status
Unpaired
Paring
Connected
Control Mode
(Press the button 1x)
Pre-lead through
To unpair (Press
the button >3s)
Button
5 MAINTENANCE
The battery needs to be replaced occasionally in dependence on the logging interval. Rotronic
further recommends annual calibration of the device.
6 TECHNICAL DATA
General
Range of application
Storage capacity
Log-Interval
Wireless
IP protection
Software
Weight
Battery life and type
MINI Logger Typ specific
RMS-MLOG-B-915
RMS-MLOG-T-915
RMS-MLOG-T10-915
RMS-MADC-915-A
7 DELIVERY PACKAGE
• MINI Logger
• Calibration certificate
• Battery
• Wall bracket
• Short instruction manual
This equipment has been tested and found to comply with the limits for a Class A digital de-
vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residen-
tial area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense
Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
LED color / interval Explanation
RED flashing every 10s Ready for pairing
ORANGE flashing MINI Logger is detected, user input
required
GREEN flashes 3x Pairing successful
RED flashes 3x Pairing not successful or aborted
GREEN flashes Status ok (LED can be switched off / on
and the interval adjusted via Software)
RED flashes 1x Low battery <10%
RED flashes 2x No external sensor connected or short
circuit on the sensor
GREEN flashes 1 to 4 times Connected, 4 times = strongest signal
ORANGE flashes 1x No wireless connection
RED flashes 1x Low battery <10%
RED flashes 2x No external sensor connected or circuit on
the sensor
RED flashes 3x Unpaired MINI logger must be also remo-
ved from the software
Parameter Accuracy / Information
Temperature: -30...85 °C (RMS-MLOG-B-915 -40...85°C)
not condensing; Maximum altitude 2000 m
10'000 measured values
10 sec...1 h / cloud: 60 sec... 1h
915 MHz Range: 15...25 m indoor
IP65 ( RMS-MLOG-B-915 = IP30 )
RMS Monitoring-Software
100 g
Up to 3 years (at 23 °C, RMS-BAT
interval 1 minute) 2,7 Jahre
(RMS-MLOG-B)
Temperature & Humidity -40...85 °C (±0.5°C @23° C) /
0...100% RH (±3% RH @23° C)
Temperature -30...85 °C (±0.4°C @23° C)
Temperature with ext. probe Depends on the probe
Current input 0...20 mA or 4...20 mA (Shunt 110 Ohm)
±0.2mA
12.1175.0101E
