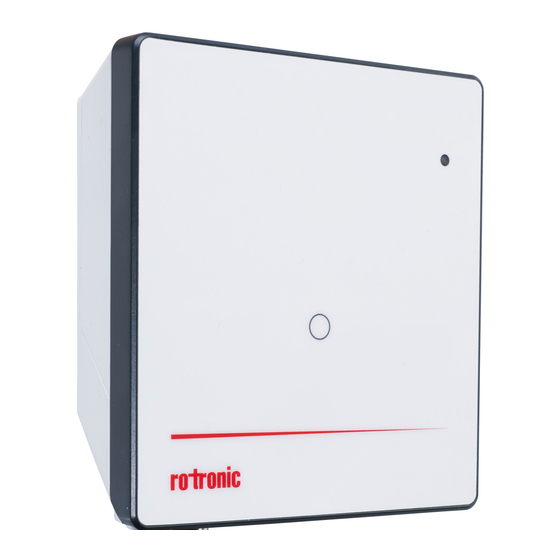

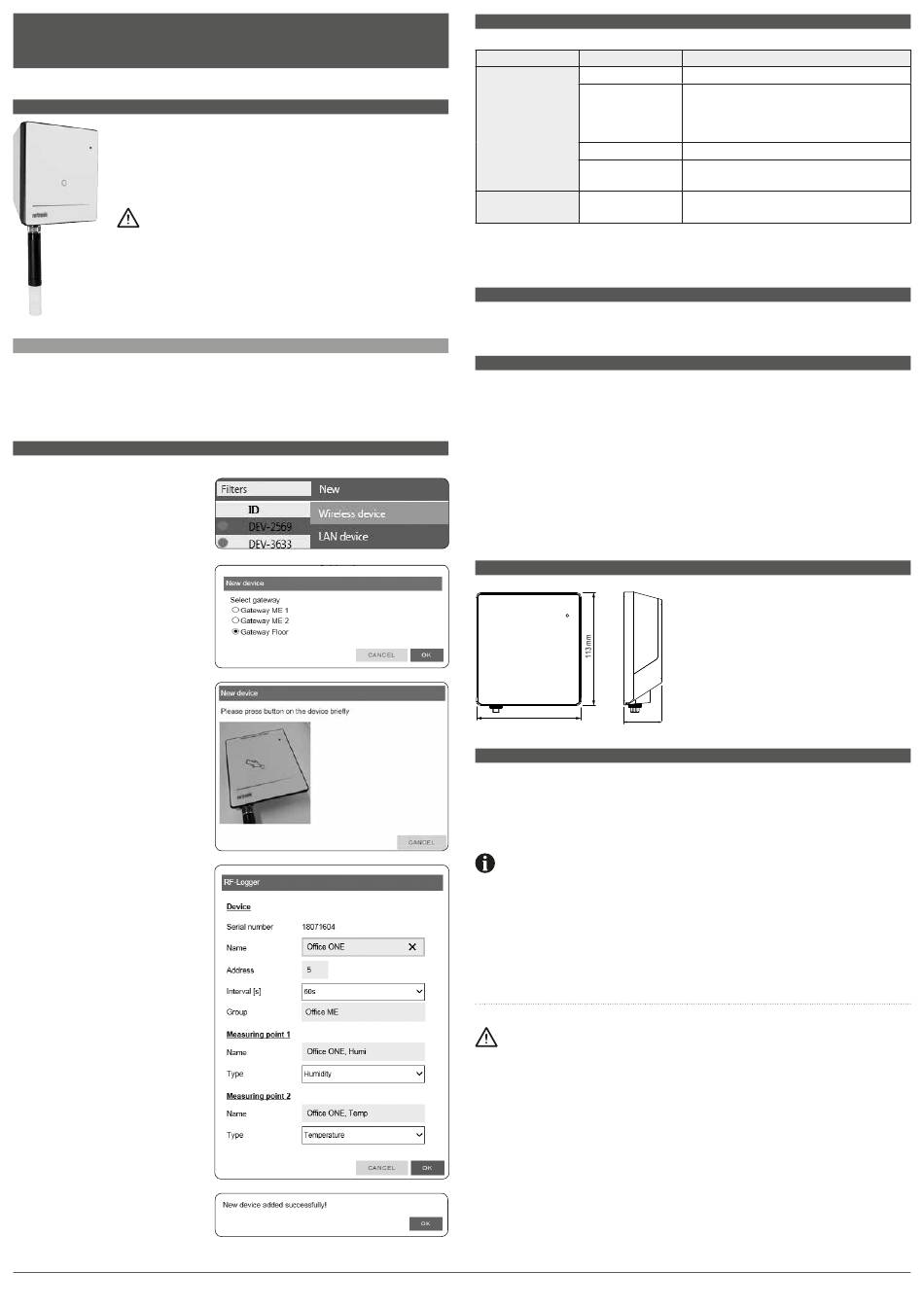

Rotronic RMS-LOG-915 Short Instruction Manual

RMS-LOG-915
Short Instruction Manual
1 GENERAL DESCRIPTION
Congratulations on your new RMS wireless data logger. The wireless data
logger has an internal data memory of 44,000 measured values and trans-
mits these values continuously to the gateway and RMS software by radio.
These short instructions describe the main functions of the device.
Please read this short manual and the instruction manual on
www.rotronic.com/rms carefully.
1.1 COMMISSIONING
The device is supplied with power as soon as the battery is inserted. The data logger can optionally also
be supplied with 24 V (terminals: V+ / V-). The wireless data logger can be mounted easily with the wall
bracket. Choose a suitable position for measurement. Avoid disruptive influences such as sunlight,
heating elements, etc. The device is connected to the gateway and RMS software by pairing.
2 INTEGRATION OF THE WIRELESS DATA LOGGER (PAIRING) IN 5 STEPS
1. Log into the RMS software / cloud.
Select Tools > Setup > Devices >
New > Wireless device
2. Select the gateway you want your
wireless data logger to be connected to.
3. Wait until the device is flashing orange.
Press the button on the device briefly,
as shown in the picture on the RMS
software. The LED flashes green, when
connection is succesful.
4. Configure the device.
5. Finish configuration.
English
3 LED INDICATORS
Status LED Function
Connected Flashes green
Flashes green
when button
pressed
Flashes orange
Flashes red
Not connected
Flashes orange
Maintenance
The battery needs to be replaced regularly in dependence on the recording interval.
4 ACCESSORIES
AC1321 Mounting kit with Allen key and mounting cone
E2-01 A Probe extension cable, 1 m, black
5 TECHNICAL DATA
Battery type: RMS-BAT (2xAA, LiSocl2)
Power supply: 24 VDC ±10 % / <100 mA
Power supply requirements: 24 VDC ±10 % / >4 W / limited power source
Battery life: 3 years (at 23 °C, interval 1 minute) with HCD-S
Range of measurement / application: -40...70 °C
Storage capacity: 44,000 data point memory
Logging interval: 10 s...15 min.
IP protection: IP65
Software: RMS Monitoring Software
Weight: 200 g
6 DIMENSIONS
105 mm
38 mm
7 DELIVERY PACKAGE
• Wireless data logger
• 2 batteries
• Wall bracket
• Short instruction manual
This equipment has been tested and found to comply with the limits for a Class A digital de-
vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residen-
tial area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense
Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
Meaning
Status OK
1 time: very weak reception
2 times: weak reception
3 times: good reception
4 times: very good reception
No wireless connection
1 time: low battery, replace soonest
2 times: probe not connected
Device in pairing mode, push the button for
integration into the software
12.1066.9101E
