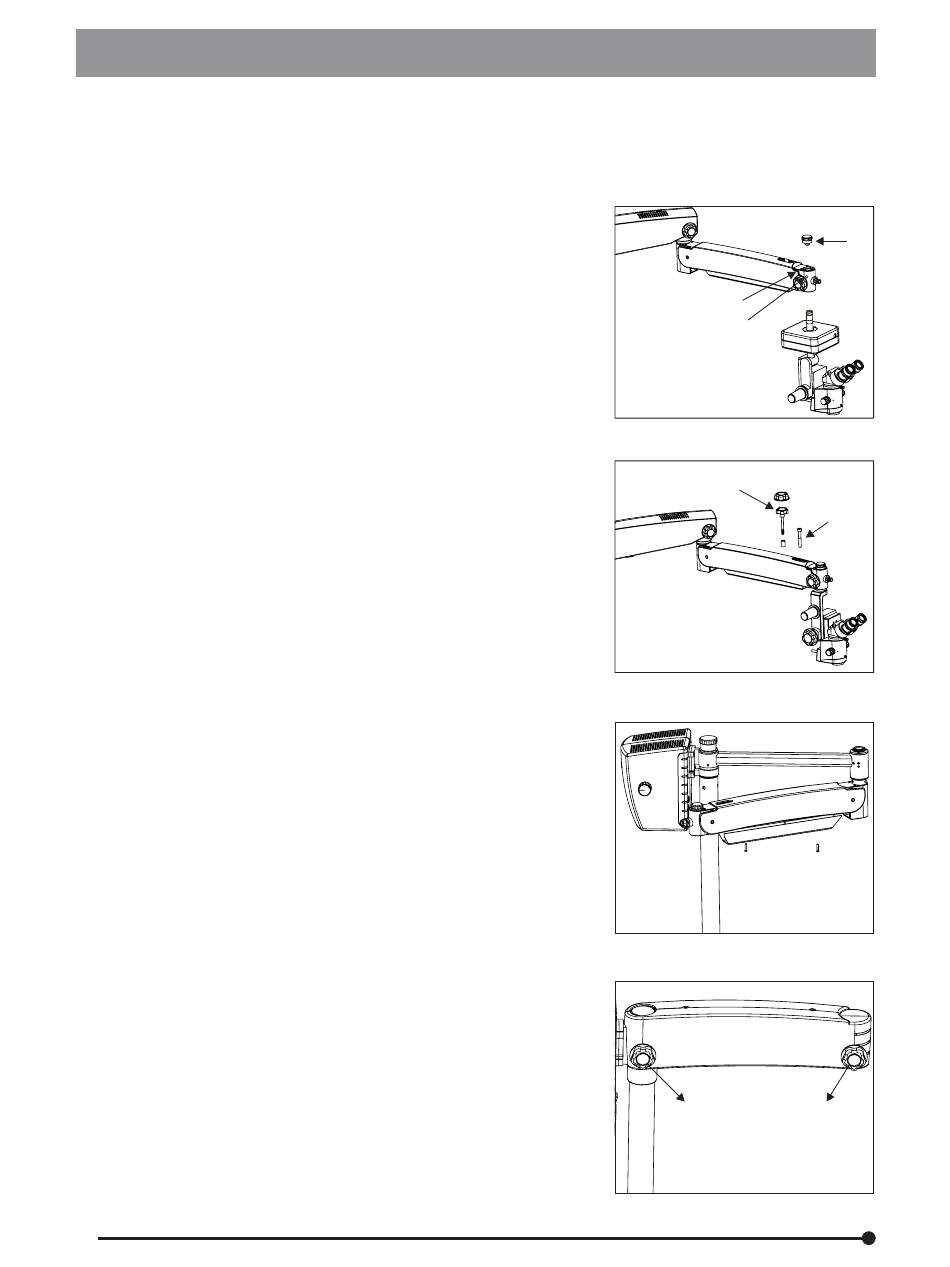

7.11 Install the microscope coupling to the suspension arm
prior to installing the head and eyepieces. Before
installing, loosen the coupling locking knob (A) and
safety position screw (B).Slide in the carrier shaft to
the suspension arm and screw it with locking nut.
Secure the locking knob (A) and safety position
screw (C).
7.12 Remove the caution label from the suspension arm.
Unscrew safety nut (A) from the carrier and guide the
shaft smoothly into the bush of suspension arm as
shown in Fig. 9
7.13 Remove the cable cover by unscrewing two allen
screws provided at the lower side. Run the fibre optic
cable and the cable meant for intensity
and XYZ control through the tray.
7.14 Set the cable cover on the suspension arm by aligning
the guide screw with the groove provided on the cover
by using allen wrench 3mm.(Fig. 12)
7.15 Remove the swivel arm locking knobs A & B. Remove
the self tapping screws fixed on the top and bottom
side of cover for swivel arm. Fix these panels on swivel
arm and fix back the screws removed earlier. Make
sure that wire for Fibre optic is passed through while
fixing the panels. See fig 11 and 12..
9
control knob
Prima OPH
C
B
A
Fig. 9
B
A
Fig. 10
Fig. 11
B
A
Fig. 12
