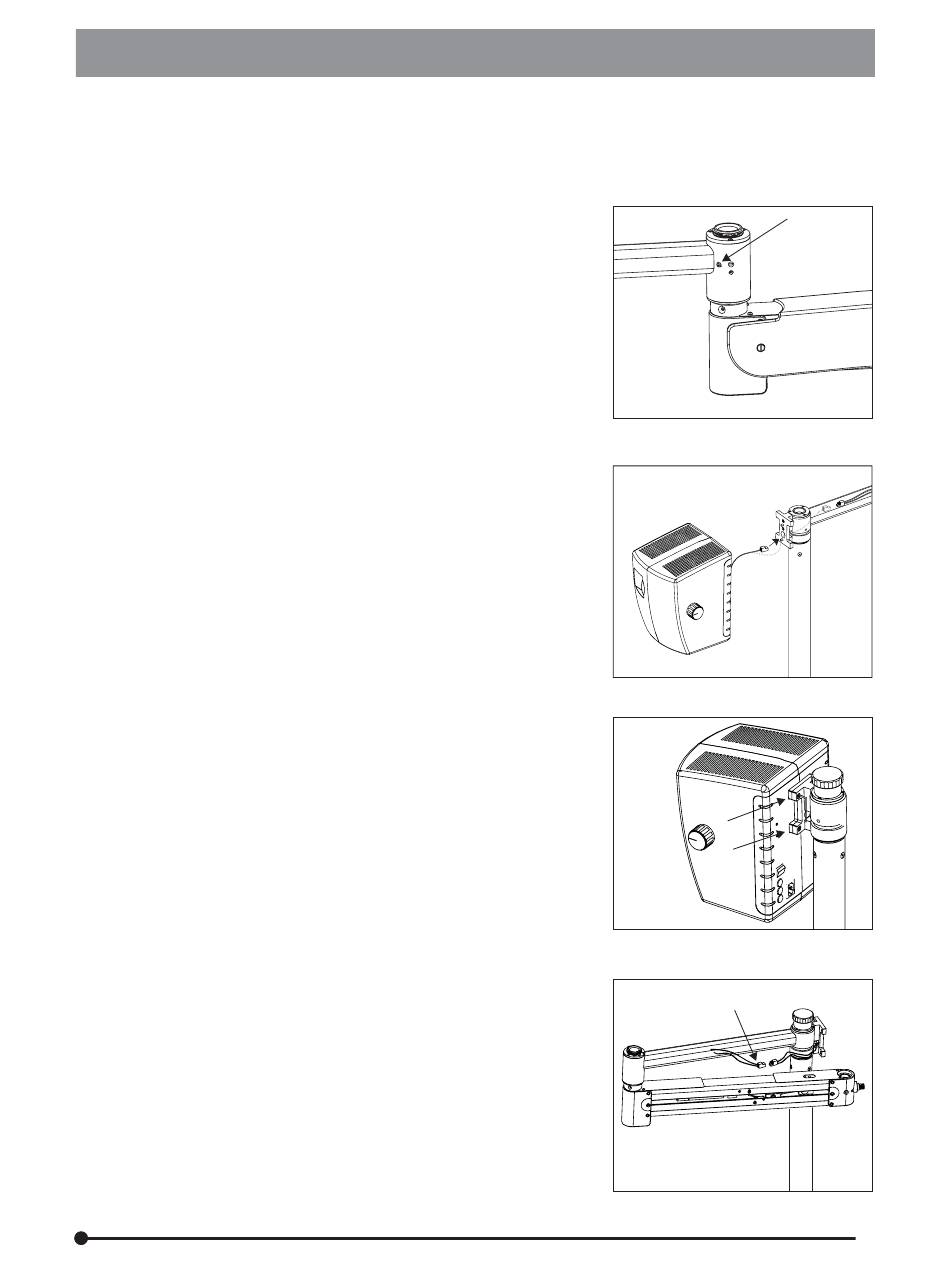

7.6 Firmly tight the safety lock screw provided on the
suspension arm by using allen wrench 3mm. See fig
5.
7.7 Remove four allen screws from the illumination box
before mounting it on pillar.
7.8 Fix the illumination box on the pillar only after having
the connectors passed through the hole provided on
the H- block. Refer to fig 6.
7.9 Secure the illumination box with four allen screws
provided using wrench 5mm. See fig 7.
7.10 Connect two appropriate male female connectors
provided for electrical connection. See fig 8. Do not
pull the cables too much to join the connector's.
Additional force can damage wire connections.
Prima OPH
Fig. 5
Fig. 6
A
B
Fig. 7
A
Fig. 8
8
