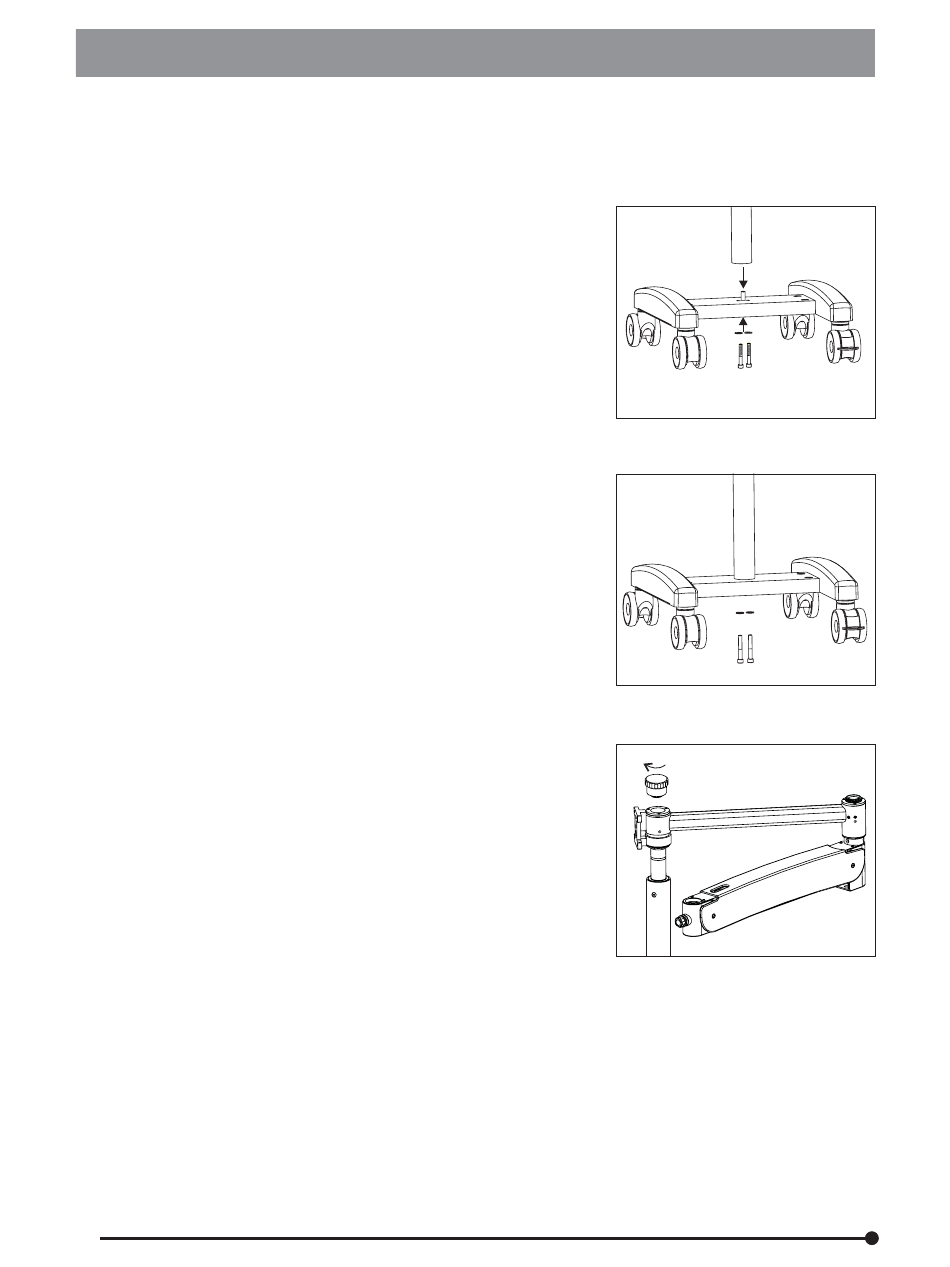

INSTRUCTIONS
7.1 Pull out the base from the wooden pallet by removing
two nuts with the help of spanner provided.
7.2 Remove allen screws from bottom side of the pillar.
7.3 Put the pillar on the base and align it with the pillar
guide pin (A). After aligning the screw holes with the
guiding holes on base, fix the screws removed in Fig 2
using allen wrench 8mm. Fig.2 and 3.
7.4 Remove safety cap from topside of the pillar.
7.5 Place swivel arm on the pillar by sliding in the groove
and rotate the suspension arm by 90° as shown in
Fig.4.
7
Prima OPH
Fig. 2
Fig. 3
Fig. 4
