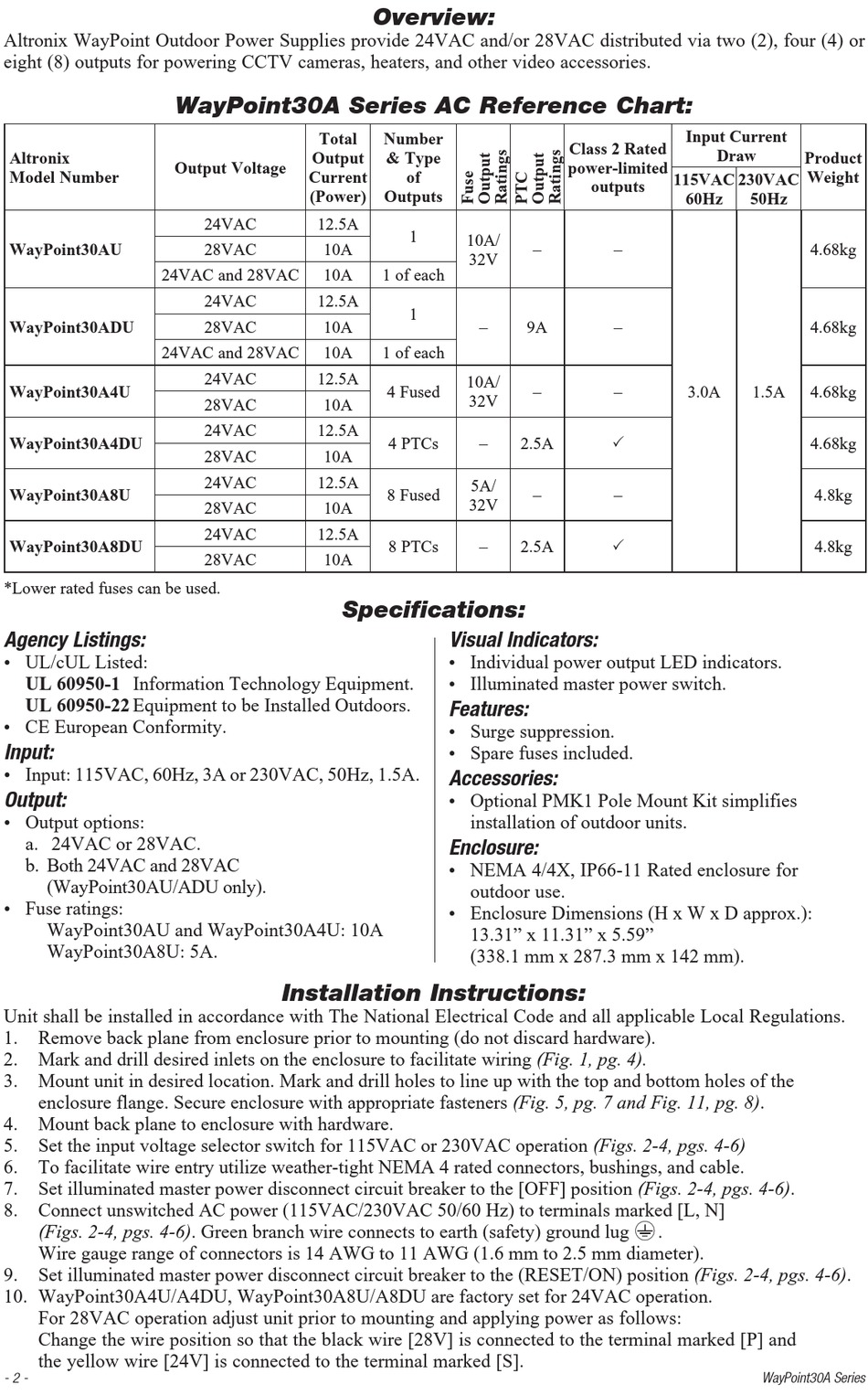

Overview; Waypoint30A Series Ac Reference Chart; Specifications; Installation Instructions - Altronix WayPoint30A Series Installation Manual

Altronix WayPoint Outdoor Power Supplies provide 24VAC and/or 28VAC distributed via two (2), four (4) or
eight (8) outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix
Model Number
WayPoint30AU
24VAC and 28VAC
WayPoint30ADU
24VAC and 28VAC
WayPoint30A4U
WayPoint30A4DU
WayPoint30A8U
WayPoint30A8DU
*Lower rated fuses can be used.

Agency Listings:

• UL/cUL Listed:
UL 60950-1 Information Technology Equipment.
UL 60950-22 Equipment to be Installed Outdoors.
• CE European Conformity.
Input:
• Input: 115VAC, 60Hz, 3A or 230VAC, 50Hz, 1.5A.
Output:
• Output options:
a. 24VAC or 28VAC.
b. Both 24VAC and 28VAC
(WayPoint30AU/ADU only).
• Fuse ratings:
WayPoint30AU and WayPoint30A4U: 10A
WayPoint30A8U: 5A.
Unit shall be installed in accordance with The National Electrical Code and all applicable Local Regulations.
1. Remove back plane from enclosure prior to mounting (do not discard hardware).
2. Mark and drill desired inlets on the enclosure to facilitate wiring (Fig. 1, pg. 4).
3. Mount unit in desired location. Mark and drill holes to line up with the top and bottom holes of the
enclosure flange. Secure enclosure with appropriate fasteners (Fig. 5, pg. 7 and Fig. 11, pg. 8).
4. Mount back plane to enclosure with hardware.
5. Set the input voltage selector switch for 115VAC or 230VAC operation (Figs. 2-4, pgs. 4-6)
6. To facilitate wire entry utilize weather-tight NEMA 4 rated connectors, bushings, and cable.
7. Set illuminated master power disconnect circuit breaker to the [OFF] position (Figs. 2-4, pgs. 4-6).
8. Connect unswitched AC power (115VAC/230VAC 50/60 Hz) to terminals marked [L, N]
(Figs. 2-4, pgs. 4-6). Green branch wire connects to earth (safety) ground lug
Wire gauge range of connectors is 14 AWG to 11 AWG (1.6 mm to 2.5 mm diameter).
9. Set illuminated master power disconnect circuit breaker to the (RESET/ON) position (Figs. 2-4, pgs. 4-6).
10. WayPoint30A4U/A4DU, WayPoint30A8U/A8DU are factory set for 24VAC operation.
For 28VAC operation adjust unit prior to mounting and applying power as follows:
Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and
the yellow wire [24V] is connected to the terminal marked [S].
- 2 -

WayPoint30A Series AC Reference Chart:

Total
Output
Output Voltage
Current
(Power)
24VAC 12.5A
28VAC 10A
10A
24VAC 12.5A
28VAC 10A
10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A

Installation Instructions:

INPUT
28V
PD2WP
COM 24V 28V

Overview:

Number
& Type
of
Outputs
1
10A/
32V
1 of each
1
–
1 of each
10A/
4 Fused
32V
4 PTCs –
5A/
8 Fused
32V
8 PTCs –

Specifications:

Visual Indicators:

• Individual power output LED indicators.
• Illuminated master power switch.

Features:

• Surge suppression.
• Spare fuses included.

Accessories:

• Optional PMK1 Pole Mount Kit simplifies
installation of outdoor units.
XFMR*
Enclosure:
• NEMA 4/4X, IP66-11 Rated enclosure for
outdoor use.
• Enclosure Dimensions (H x W x D approx.):
13.31" x 11.31" x 5.59"
(338.1 mm x 287.3 mm x 142 mm).
24V COM
L G
ALTRONIX CORP.
www.altronix.com
COM 24V 28V
BROOKLYN, NY 11220
CAUTION
HIGH VOLTAGE
Class 2 Rated
power-limited
115VAC
outputs
60Hz
– –
9A –
– –
2.5A P
– –
2.5A
P
Input Voltage
Power Input
N
Ground
Lug
.
Input Current
Draw
Product
Weight
230VAC
50Hz
4.68kg
4.68kg
3.0A 1.5A 4.68kg
4.68kg
4.8kg
4.8kg
PD2WP
COM 24V
WayPoint30A Series
Circui
