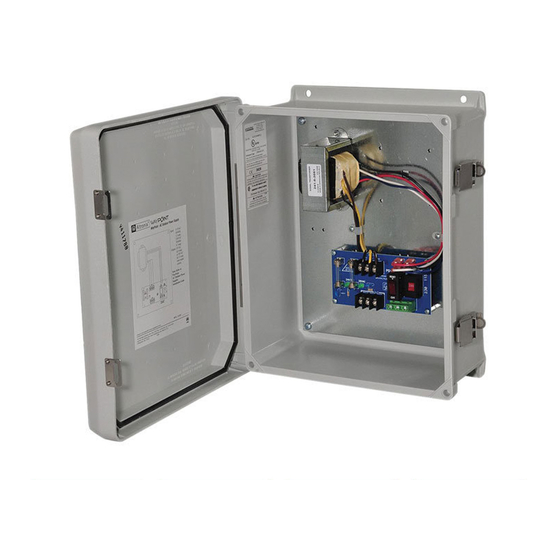

AC Outdoor
Power Supplies
Models Include:
WayPoint10A
- 24VAC @ 4A and/or 28VAC @ 3.5A.
WayPoint17A
- 24VAC @ 7.25A and/or 28VAC @ 6.25A.
WayPoint30A
- 24VAC @ 12.5A or 28VAC @ 10A.
Installation Guide
Rev. 080911ACPL
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix WayPoint10A
Summary of Contents for Altronix WayPoint10A
- Page 1 AC Outdoor Power Supplies Models Include: WayPoint10A - 24VAC @ 4A and/or 28VAC @ 3.5A. WayPoint17A - 24VAC @ 7.25A and/or 28VAC @ 6.25A. WayPoint30A - 24VAC @ 12.5A or 28VAC @ 10A. Installation Guide More than just power. Rev. 080911ACPL Installing Company: _______________ Service Rep.
- Page 2 Input Current Draw Total Output Fuse Altronix Current Output 115VAC 230VAC Product Model Number Output Voltage (Power) Ratings 50/60Hz 50/60Hz Weight 24VAC WayPoint10A 28VAC 3.5A 5A/250V 1.2A 0.7A 10.3 lbs. 24VAC and 28VAC 3.5A 24VAC 7.25A WayPoint17A 28VAC 6.25A 10A/250V 1.7A 1.0A 13.1 lbs.
- Page 3 10. Measure output voltage on terminals marked [COM, 24V, 28V] before connecting devices (Fig. 2, pg. 4, Fig. 3, pg. 5, Fig. 4, pg. 6). This helps avoiding potential damage. 11. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig.
- Page 4 Fig. 2 - WayPoint10A INPUT INPUT POWER VOLTAGE SELECTOR 5A 250V 115V 24VAC 28VAC OUTPUT CAUTION HIGH VOLTAGE - 4 - WayPoint AC Series Installation Guide...
- Page 5 Fig. 3 - WayPoint17A INPUT INPUT POWER VOLTAGE SELECTOR 10A 250V 115V 24VAC 28VAC OUTPUT CAUTION HIGH VOLTAGE WayPoint AC Series Installation Guide - 5 -...
- Page 6 Fig. 3 - WayPoint30A XFMR* INPUT INPUT INPUT POWER VOLTAGE SELECTOR 15A 32V 15A 32V 115V 24VAC 28VAC 24VAC 28VAC OUT1 OUT2 CAUTION HIGH VOLTAGE - 6 - WayPoint AC Series Installation Guide...
- Page 7 This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 outdoor pole mount kit is designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP3 and WP4 NEMA rated enclosures. PMK1 can be mounted on 2” to 8”...
- Page 8 BRASS INSERT (X4) 10-32 X 0.25” (6.4mm) BRASS INSERT (X2) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
