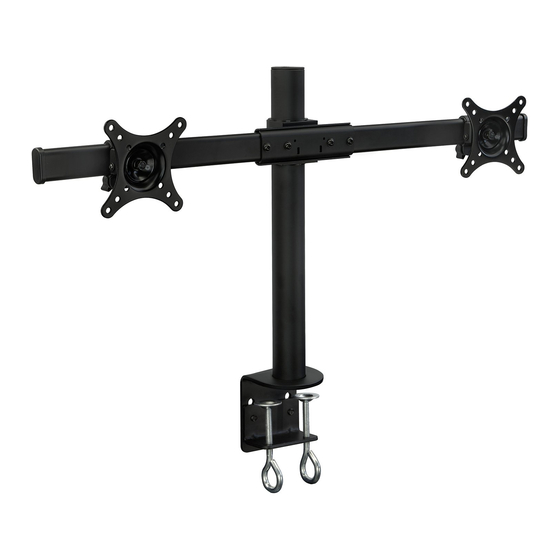

Mount-It! MI-772 Installation Instruction

Table of Contents

Download this manual

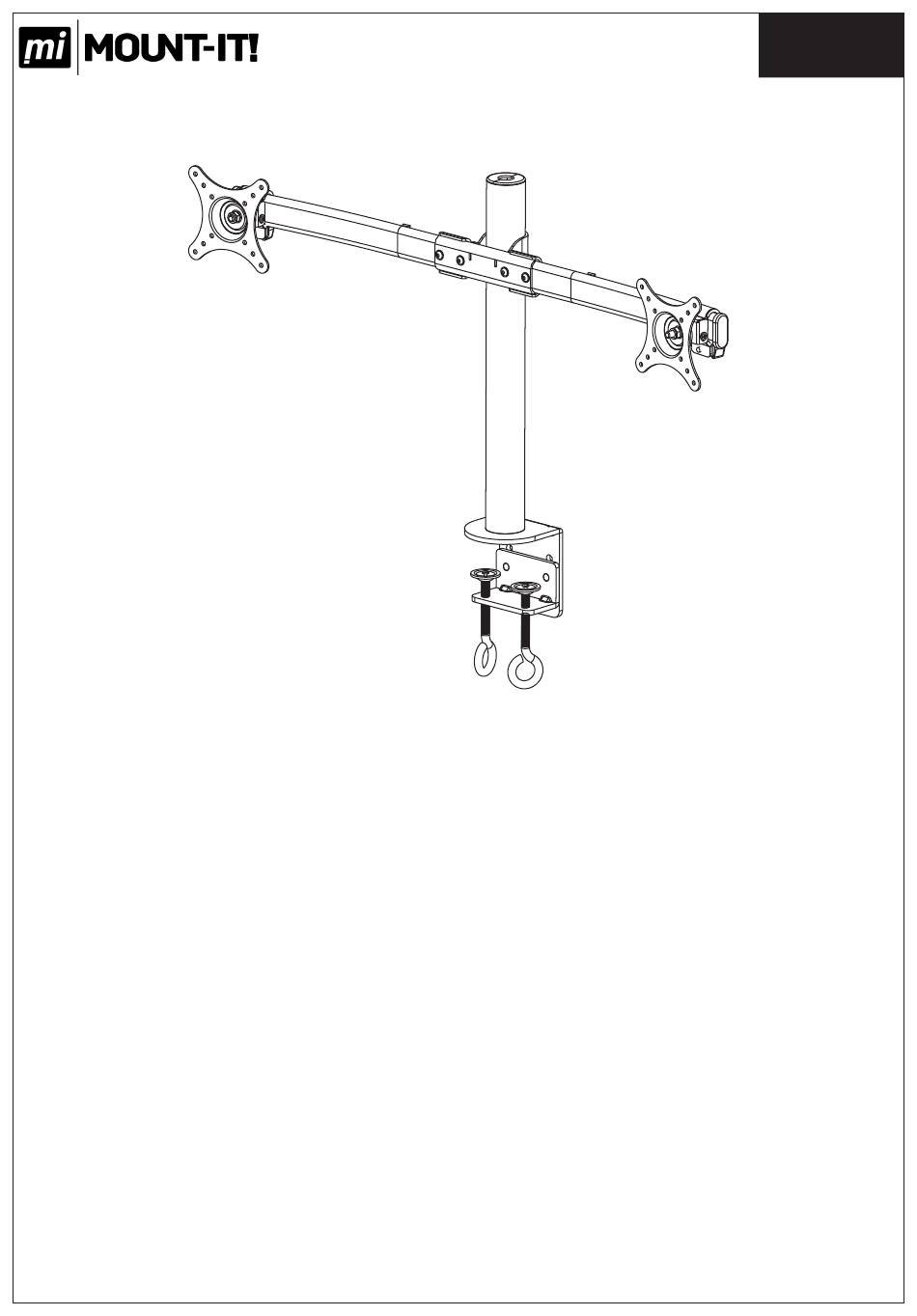

Installation Instruction

Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

English

Table of Contents

Do you have a question about the MI-772 and is the answer not in the manual?

Page 1: Important Safety Information
English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
Page 2 Supplied Par ts List (1) Disconnected (2) Side Vesa Plate (1) 48mm Pole-a (2) Short Arm-d “C” Clamp-b with Slip Set-c (1) Arm Connect (1) Arm Clamp-f (4)M6x25 Bolt-g (4)M6 Washer-h Part-e (2)Arm Plastic (8)M4x12 (16)M4 Washer-k Cover-i Thumb Bolt-l (1)Allen Key-j (8)M4x30 Bolt-m (8)M4 Space-n...
Page 3 Install the “C” Clamp According to the Desktop Thickness Step 1 The depth of “C” clamp can be changed in three positions. Choose the proper depth a c c o r d i n g t o t h e t h i c k n e s s o f y o u r desktop.
Page 4 Mount the Monitor to VESA Plate Step 3 For Flat Back Monitor For Flat Back Monitor For Curved Back Monitor Step 4 Attach the Monitors to Arm Sets Plastic Knob Attaching the monitors to the curved arm sets, fixing the position by the plastic knob.
Page 5 Adjust the Tilting Angle and the Monitors Level Step 5 grub screw Bolt By fasten or loosen the bolt on the Fasten the grub screw to fix the tilting above diagram to adjust the level of angle by provided Allen Key(j). each monitor.
