Summary of Contents for Mount-It! MDS06-1

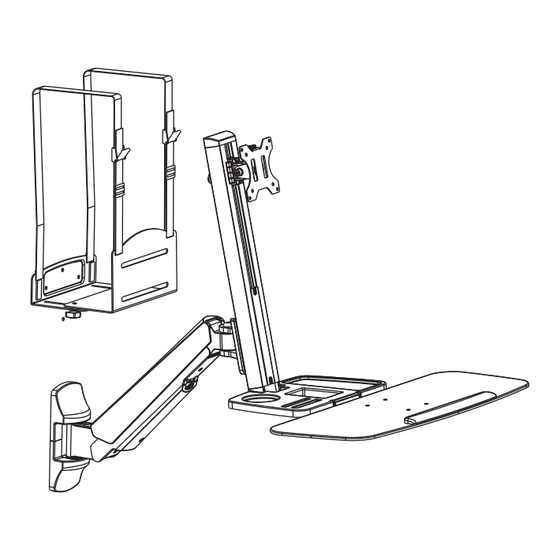

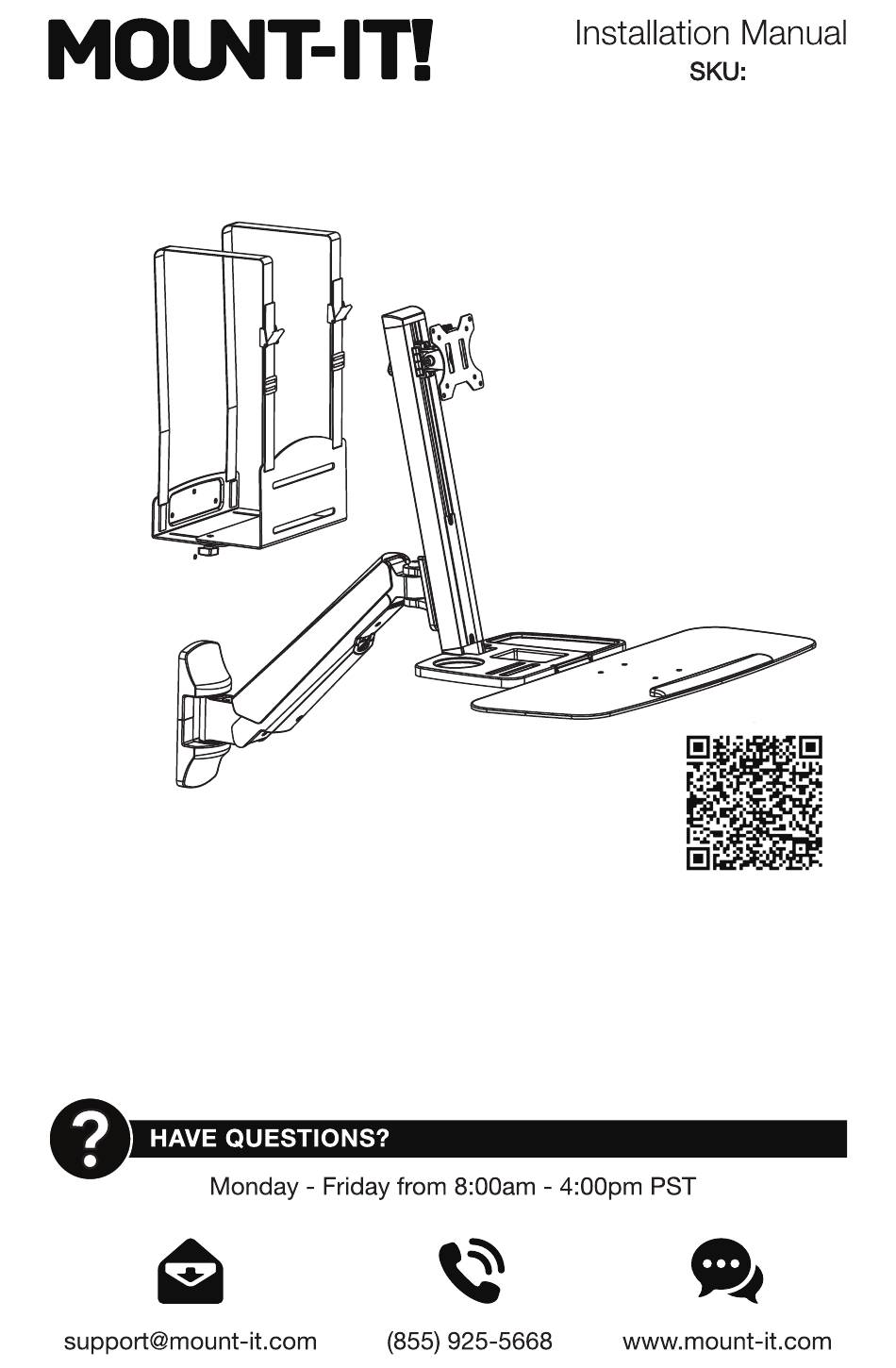

- Page 1 MI-7905 Please Scan this QR code to visit the product page. SIT-STAND WORKSTATION WALL MOUNT...
- Page 2 Thank you for choosing Mount-It COMPATIBLE WITH Screens UP TO COMPATIBLE VESA SIZES 2~8kg 75x75 100x100 (4.4~17.6lbs) Mount-It! RATED PACKAGE CONTENTS Mount-It! C (x1) Keyboard Tray (x1) (x1) A (x1) B (x1) D (x2) E (x2) Spring Arm Monitor Arm Decorative Bolt Allen Wrench...
- Page 3 Step 1a Step 1b Concrete/brick Installation Option Wall Stud Installation Option • Hold Spring Arm A to the wall in the desired mounting location as shown and mark the center of the top • Use a stud finder to locate the center of the stud and hold Spring Arm A to the wall in the desired hole with a pencil.
-
Page 4: Step 2 Attaching The Decorative Covers
Step 2 Step 4 Attaching the Decorative Covers Attaching Monitor Arm to the Spring Arm • Attach Decorative Covers D so that they fully cover the lag screw heads. • Using Allen Wrench F loosen the top 2 bolts on the back of Monitor Arm B until there is a gap of approximately .2”... - Page 5 Step 6 Step 8 Attaching the VESA Brackets to the Monitor Adjusting Gas Spring Arm Tension • Select the appropriate size mounting bolt (M-A, M-B, M-C, or M-D) for your display’s mounting holes • Gas Spring tension may need to be adjusted to suit the weight of the monitor. To weight balance the and verify the length of the VESA bolt is not too long.
- Page 6 Step 10 Step 12a Adjusting the Angle of the Keyboard Tray Concrete/brick Installation Option • The keyboard tray has two settings for the tilt angle of the keyboard tray and can be adjusted by raising • Hold the shorter side of the PC Mount to the wall in the location it will be mounted and mark the location the keyboard tray and raising or lowering the tab pictured.
-
Page 7: Step 15 Cable Management
Step 13 Step 15 Adjusting the Width of the PC Mount Cable Management • Re-attach the two halves of the PC Mount, ensure the washers are still present on the threaded bolt • There are two locations for cable management, to access the section on the spring arm, first remove between the two halves before continuing. -
Page 8: Step 17 Positioning The Monitor
Step 17 Positioning the Monitor • Make any additional adjustments to the height and tilt for your desired configuration. The Monitor can be rotated 360° to be viewed in portrait or landscape orientation as needed. +15° -15° 360° 180° 180°...
