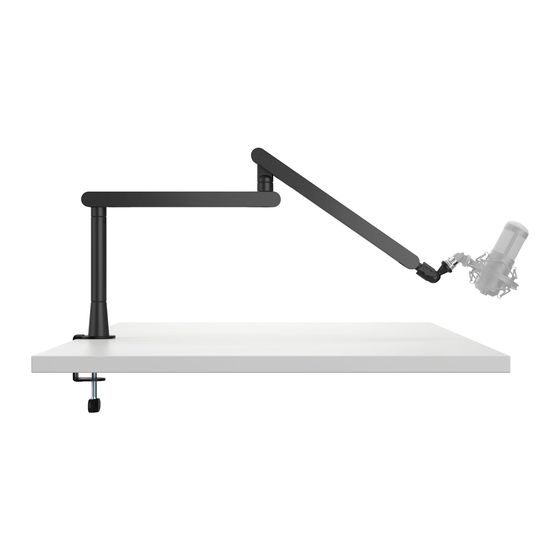

- Page 1 MI-7612 Please scan this QR code to visit the product page. PREMIUM MICROPHONE BOOM ARM...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Arm Segment 2 Clamp Mount Base Vertical Arm Microphone Mount Arm Segment 1 Grommet Base Adhesive Pad Bolts Hex Wrench Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 • Slide the clamp over the edge of the desk and position it in the desired location. Step 1a Note: The clamp is only compatible with desks with a thickness between 0.4”-2.1” (10-55mm) Clamp Mounting Option • Open the Clamp Base (#C) until it is at the maximum width by rotating the hand knob counterclockwise. •...
- Page 4 Step 1b • Place the mounting base over the grommet hole and secure from underneath using the long hand knob Grommet Mounting Option bolt through the circular plate. Insert the end of the bolt through the desk into the mount base and tighten until secure.
- Page 5 Step 3 Step 5 Install the First Arm Segment Attach the Microphone Mount • Install Arm Segment 1 (#F) using the same method to secure the first Arm Segment to the Vertical Pole. • Remove the hand knob from the Microphone Mount (#E) and remove the bolt to disassemble the joint. Note: This segment can be left out of the assembly if a shorter use range is required, and you may •...
- Page 6 Step 7 Step 8 Attach the Microphone Balance the Arm • Attach the microphone to the Microphone Mount (#E) on the end of the arm. The Microphone • The boom arm can be adjusted down by 25 degrees and upward by 70 degrees. Loosen or tighten the Mount has a dual threaded mount and is compatible with most 3/8"...
