Related Manuals for Mount-It! MI-3882BLK
Summary of Contents for Mount-It! MI-3882BLK

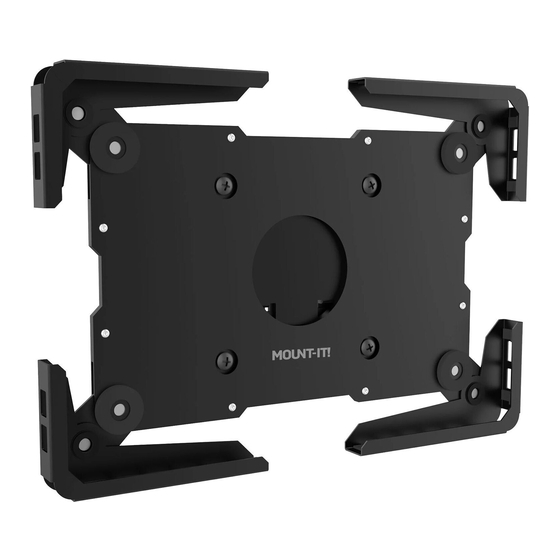

- Page 1 Installation Manual MI-3882WHT MI-3882BLK UNIVERSAL TABLET WALL MOUNT...
- Page 3 Hex Screw Hex wrench Concrete Anchor Philips pan head screw M5*35(x4) M3(x1) M4*8(x4) M4(x4) M7*35(x4) Tablet Case Wall Mount Front Plate Wall Plate Open end wrench (x1) (x1) (x1) (x1) 7#(x1) from 9.29in to MAX 13.58in 1.02in 7.68in MAX 0.45in 2.95in 3.94in 2.95in...
- Page 5 Step 3 Attach the Tablet Case to the Front Plate Choose the desired orientation between landscape and portrait. The image below shows landscape orientation, for portrait rotate the tablet case 90°. Attach the Tablet Case (#G) to the Front Plate using the Bolts (#A) through the front of the case and secured on the opposite side using the Nuts (#B).
- Page 6 Step 5 Hang the Tablet Case on the Wall Plate Hang the Tablet Case on the Wall Plate ensuring that the hooks are fully seated in the holes as shown in the magnification bubble. Step 6 Secure the Mount Reinstall the Bolt to the top of the Wall Mount to prevent the tablet from being lifted off the bracket.
