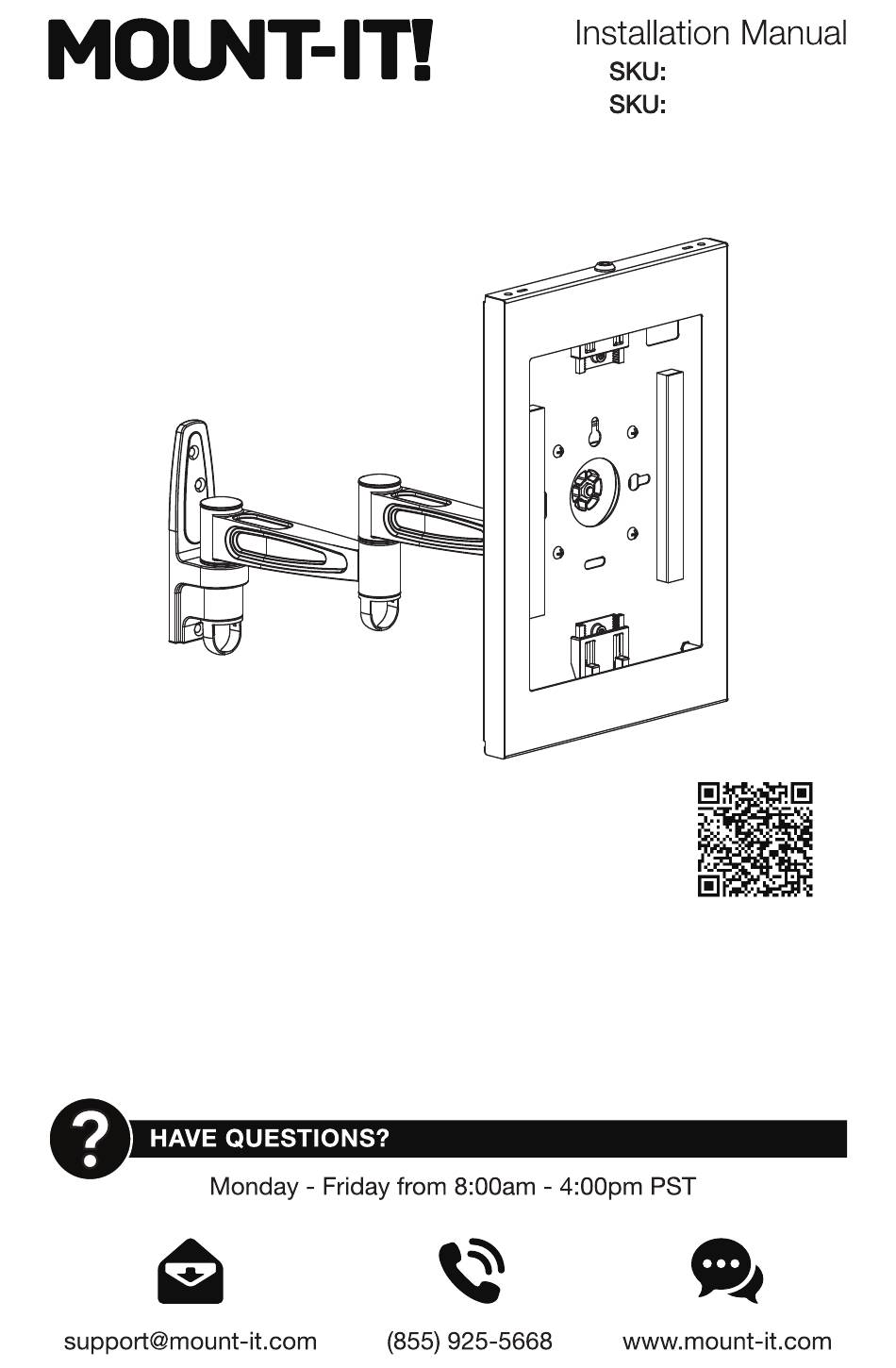

- Page 1 MI-3774B_G10 MI-3774W_G10 Please scan this QR code to visit the product page. TABLET WALL MOUNT WITH SWING ARM...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Mount Arm VESA Plate Lag Screw Concrete Anchor Anti-Theft Tablet Case Tablet Adapter 1 Tablet Adapter 2 Tablet Adapter 3 Button Cover Wrench Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 2 Open the Tablet Case Step 1a Wood Stud Mounting Option • To open the Tablet Case (#C) insert the Key (#K) and turn counterclockwise to unlock (clockwise to lock.) • With a stud finder locate the stud, hold the Mount Arm (#A) against the wall and centered on the stud at the desired height.
- Page 4 Step 3 Step 5 Select the Tablet Adapter Attach the Tablet Case to the VESA Plate • Select the Tablet Adapter (#D, E, F) for your tablet (see the table below for compatibility) and attach it • Attach the back half of the Tablet Case to the front of the VESA Plate (#B) using Bolts (#M-B) through the 4 bolt holes on the interior of the Case in the orientation shown here.
-
Page 5: Step 6 Final Adjustments
Step 6 • Tablet Adapter (#E) can be used with the preinstalled soft button cover to allow for the tablet home Final Adjustments button to be pressed, or it may be removed and replaced with the hard Button Cover (#G) which will prevent the tablet home button from being pressed.
