MI-14003
Scan this QR code for
product information, videos,
and assembly assistance.

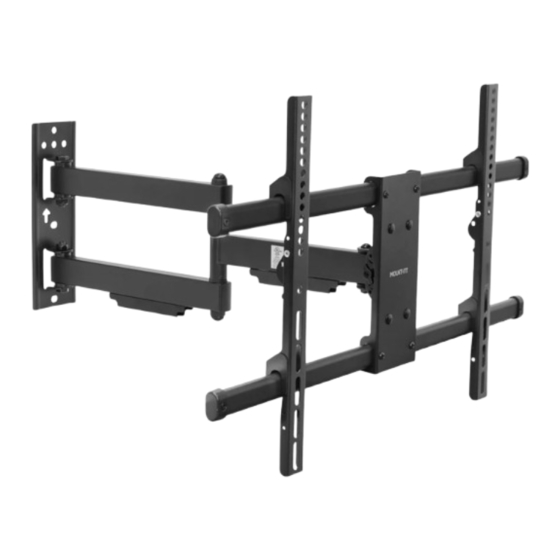

UL CERTIFIED HEAVY DUTY FULL
MOTION TV WALL MOUNT

Advertisement

loading
Need help?

Need help?

Do you have a question about the MI-14003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mount-It! MI-14003

Summary of Contents for Mount-It! MI-14003

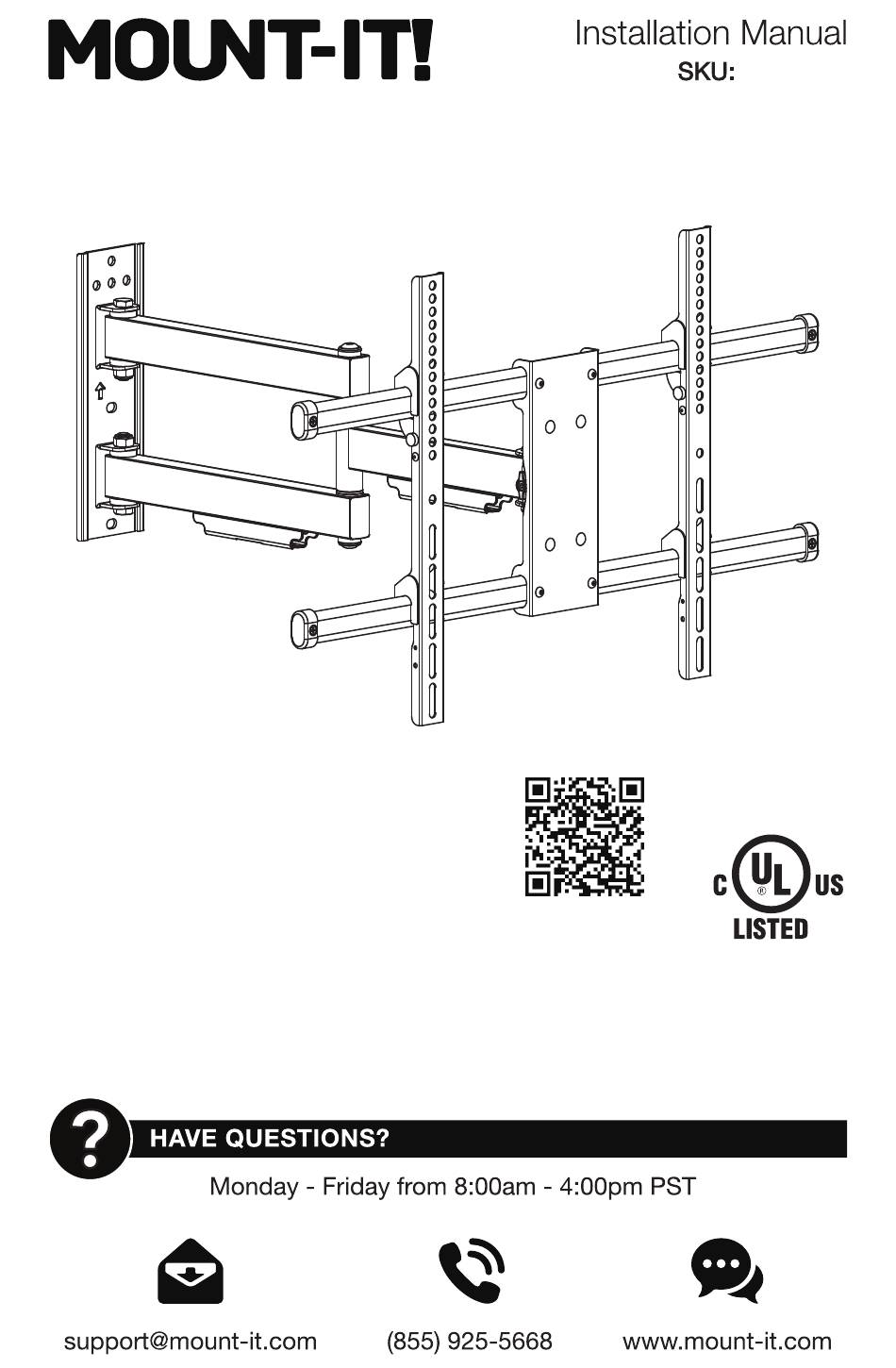

  • Page 1 MI-14003 Scan this QR code for product information, videos, and assembly assistance. UL CERTIFIED HEAVY DUTY FULL MOTION TV WALL MOUNT...

  • Page 2: Package Contents

    PACKAGE CONTENTS Thank you for choosing Mount-It Mount-It! Hex Wrench Mount-It! Wrench Mount Arm VESA Brackets Security Bolt Bubble Level VESA MOUNTING HARDWARE WALL MOUNTING HARDWARE Lag Screw Concrete Anchor Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
  • Page 3 Step 1 A. Wood Stud Installation Option B. Concrete/Brick Mounting Option • Using a stud finder locate the stud and center the Mount Arm (#A) on the stud at the desired height. • Use the Bubble Level (#F) to ensure straightness and hold the Mount Arm (#A) to the desired location Use the Bubble Level (#F) to ensure straightness and mark the center of the 4 mounting holes indicated on the wall.
  • Page 4 Step 2 Step 3 Attach the TV to the VESA Arms Hang the TV on the Wall Mount • Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C, or M-D) and washer (#M-E) • It is recommended that you use the assistance of a second person for this step. Hang the TV on the for your display’s mounting holes and verify the length of the VESA bolt is not too long.

  • Page 5: Step 4 Cable Management

    Step 4 Step 5 Cable Management Tilt and Level Adjustments • Route the cables thought the cable clips on the underside of the arm segments. • To adjust the level of the screen, loosen the 4 bolts as needed on the back of the center plate using the Wrench (#E), then adjust to the desired tilt and tighten the bolts back down.

  • Page 6: Step 6 Final Adjustments

    Step 6 Final Adjustments • Each arm joint can be turned 180° to fold and extend the arm. • The screen can be leveled +/- 3° • The screen can be tilted up and down +5°/-15°...
