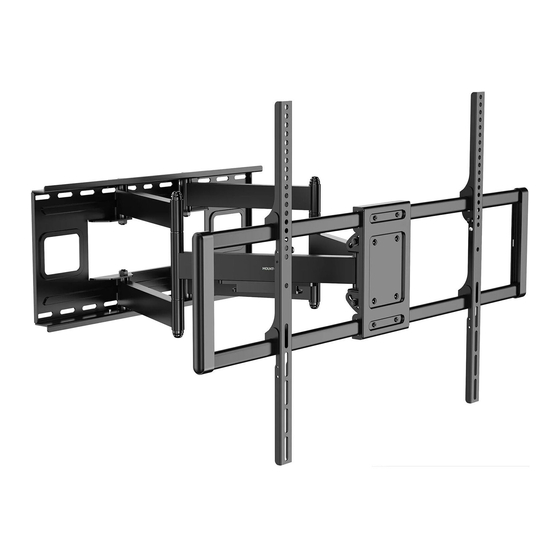

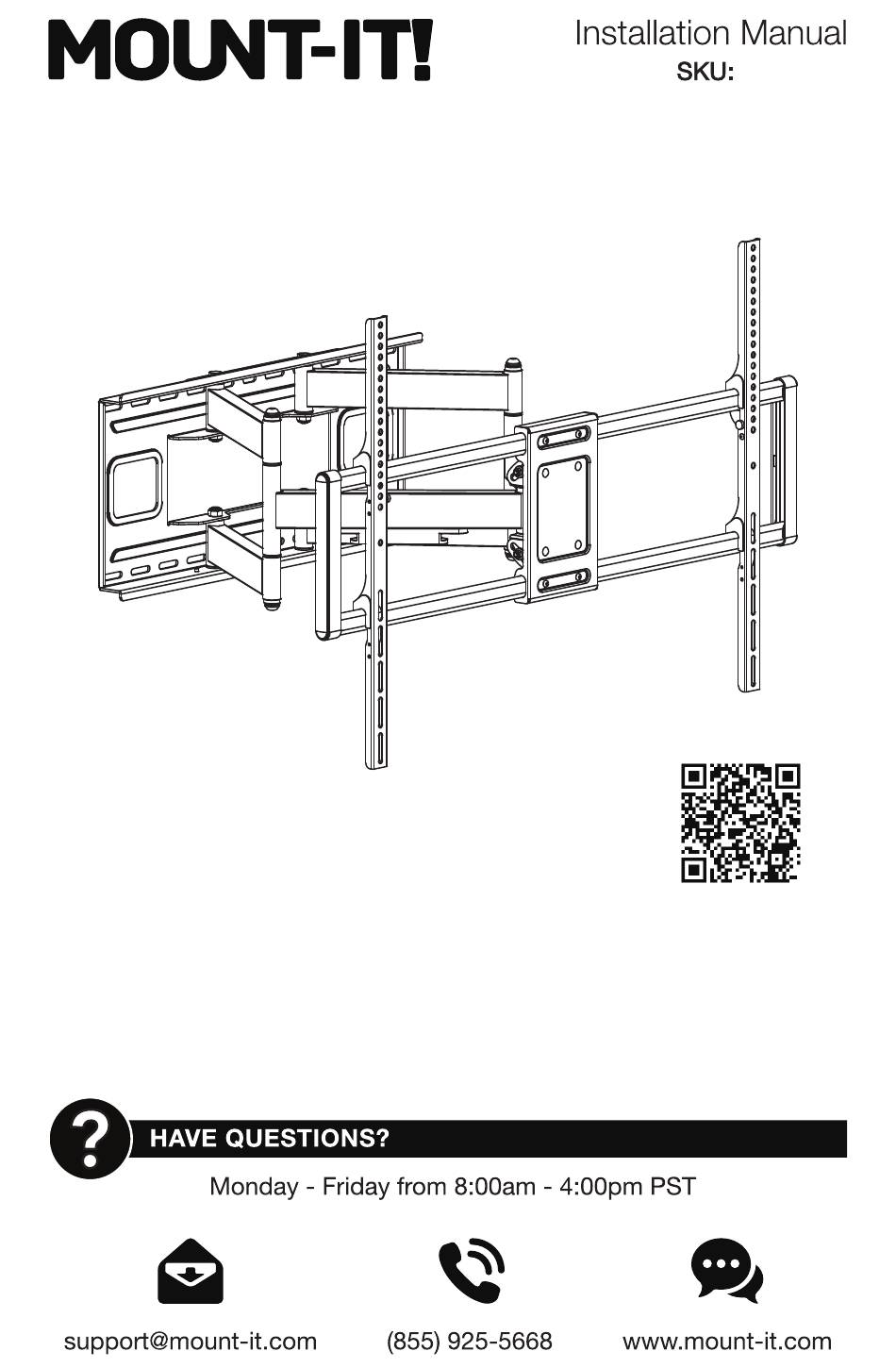

- Page 1 MI-14010 Scan this QR code for product information, videos, and assembly assistance. HEAVY-DUTY FULL-MOTION TV WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount Body VESA Bracket VESA Bracket Mount-It! Bubble Level Template Cable Ties Security Screws Wrench Mounting Hardware Wall Mounting Hardware Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1a Step 1b Wood Stud Installation Option Concrete/Brick Installation Option • Use a stud finder to locate the center of the studs and hold the Template (#E) to the wall in the desired • Hold the Template (#E) to the wall in the desired mounting location. mounting location.
- Page 4 Step 2 Attach the VESA Brackets to the TV Attach the VESA Brackets to the TV: VESA 200x200 • Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C or M-D) and washer (#M-E) • Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C or M-D) and washer (#M-E) for your display’s mounting holes and verify the length of the VESA bolt is not too long.
- Page 5 Step 3 Step 4 Hang the TV on the Wall Mount Cable Management • It is recommended that you use the assistance of a second person for this step. Hang the TV on the wall • Use the integrated cable management clips and the Cable Ties (#G) to route cables along the mount arm. mount as shown so that the VESA brackets hook onto the top and bottom horizontal bars of the wall mount.
- Page 6 Tilt and Swivel Adjustments • To tilt the screen +5° and -15°, slightly loosen the 4 bolts shown here behind the TV, adjust to the desired level and then tighten the bolts back in place. • The screen can swivel ±60° side to side. +5°...
