Summary of Contents for Mount-It! MI-2171L

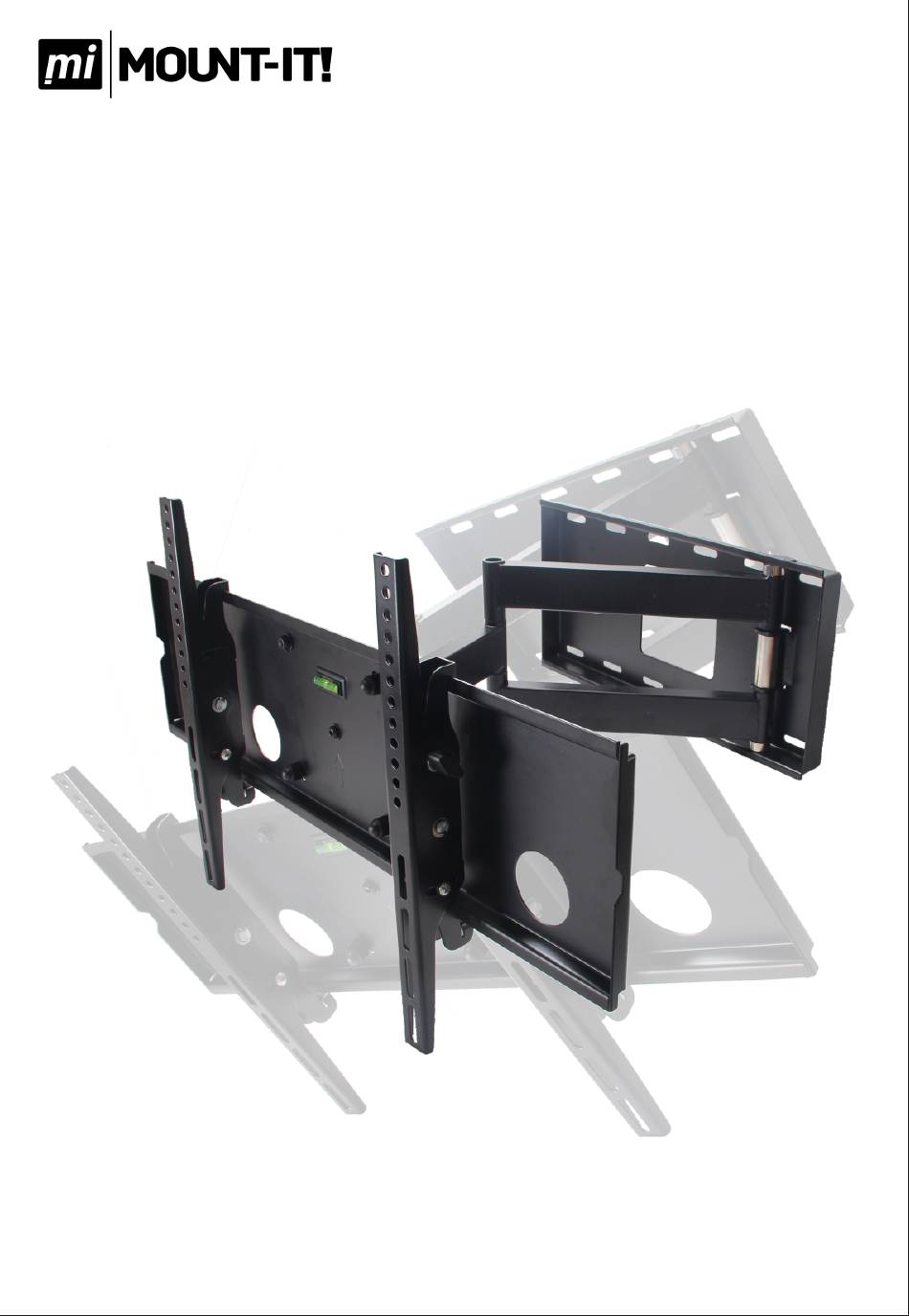

- Page 1 LCD/LED/Plasma Wall Mount Manual...
- Page 2 Product Overview: Thank you for your purchase. All mounts are designed to provide excellent function, high quality, easy installation and stylish appearance. The Mount articulating arm tilt mount features a slim 4.3" prole in the at position yet provides up to 26.5" of extension. The Mount has a universal design which allows you to mount virtually any LED/LCD/Plasma display up to 65"...
- Page 3 Parts List: Part Description Quantity 8x50mm Lag Bolts S10x50mm Concrete Anchors 8mm Washer 8x18mm Plastic Spacer 8x14.2mm Plastic Spacers 6x13mm Plastic Spacer 4/4/4 M5/M6/M8 Lock Washer M5/M6/M8 Washer 4/4/4 M4 12mm Screw M4 25mm Screw M5 12mm Screw M5 25mm Screw M6 12mm Screw M6 25mm Screw M8 12mm Screw...
- Page 4 Specifications: *Hole Pattern Coverage/Supported VESA Patterns: Up To 26.9" Horizontal by 15.75" Vertical or VESA Patterns up to 600x400mm Unit Weight: Net: 24.4LBS Gross: 26.0LBS Shipping Dimensions: 30.3"X10"X4.1" Unit Materials: Arms, Wall Plate and TV Plate: 100% High Grade Steel ±15°...
- Page 5 Installa on instruc on: Note: Please read all installation instructions carefully before installation. For standard wood stud installation please start at Section 1: Wood Stud Installation. For Concrete/Mortar installations please refer to Section 2: Concrete/Masonry Installation. Sec on 1: Wood Stud Installa on: 1.
- Page 6 3. Attaching The Mount to Your Wall: Once Part A Part C the four holes are pre-drilled, afx the wall plate to the wall with all four lag bolts and washers into the wall. The included plastic anchors DO NOT need to be used for wood stud installation.
- Page 7 7. Adjusting Your Tilt: To adjust the tilt position on your display you will need to loosen the knob on the side of each one of the arm brackets, set the desired tilt and then tighten the arms back up. You can loosen the screws slightly so that it will still hold while you adjust your tilt, once you have set the desired angle of tilt you can then fully tighten the knobs.
