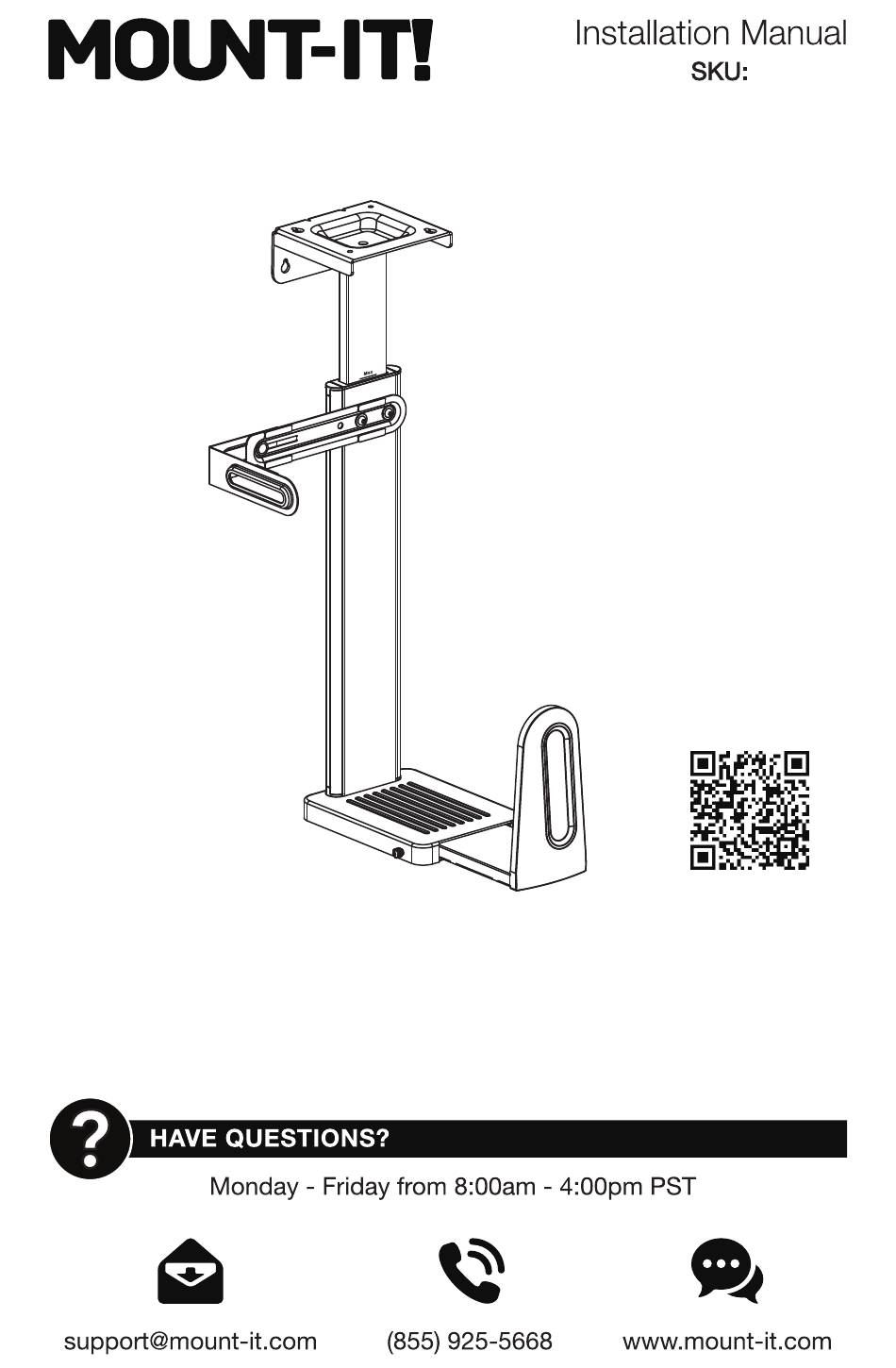

- Page 1 MI-7171 Please scan this QR code to visit the product page. HEAVY-DUTY UNDER DESK / WALL CPU MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Mount Body Horizontal Arm Protective Pads Mounting Hardware Bolt Washer Screw Screw Concrete Anchor Hex Wrench Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 3 Install the Protective Pads Widen the Mount • Apply the Protective Pads (#C) as shown by peeling off the adhesive cover and sticking them to the • Widen the mount to a size larger than that of your PC by loosening the bolts shown here on the interior of the Horizontal Arm (#B).
- Page 4 Step 4a Step 4b Optional Installation Method: Attach the Mount Solid Wood Wall/Desk • Required Desk Thickness 0.6” (15mm) minimum. • Hold the Mount underneath the desk in the desired location. Ensure adequate depth from the edges of the desk to accommodate the dimensions of your PC case. Using a pencil mark the center of all 4 screw •...
- Page 5 Step 4c Step 5 Insert the PC Optional Installation Method: Stone/Concrete Wall • Hold the Mount against the concrete surface in the desired location and use a bubble level to check • Insert the PC and slide the arms back in until snug against the side of the case, then tighten the bolts straightness.
