LCD/LED/Plasma
Wall Mount Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MI-2041L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mount-It! MI-2041L

Summary of Contents for Mount-It! MI-2041L

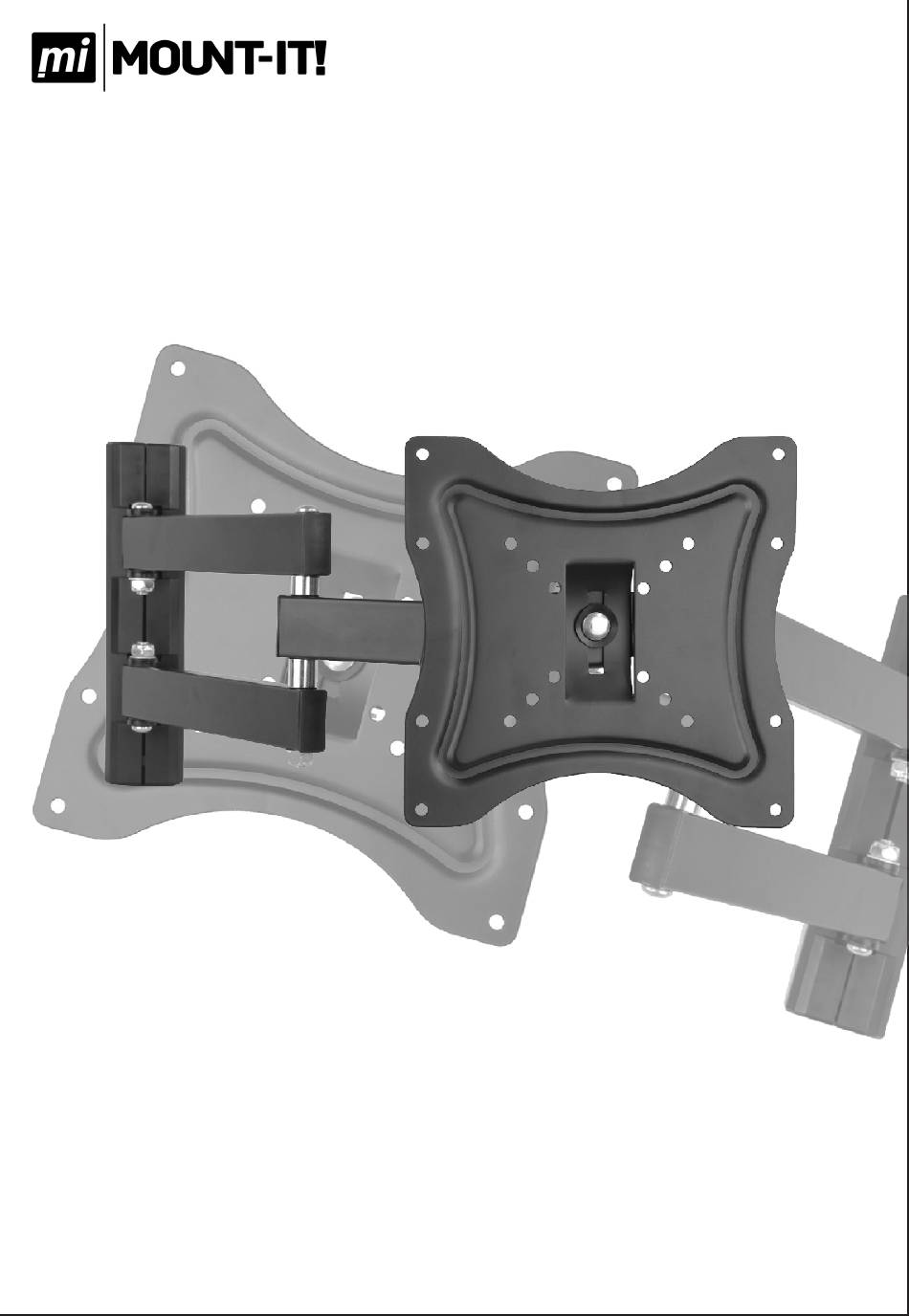

  • Page 1 LCD/LED/Plasma Wall Mount Manual...

  • Page 2: Product Overview

    Product Overview: The mount is an ar cula ng lt and swivel arm mount that collapses to a slim 2.5" yet extends a full 20" while offering 180° swivel and ±15° lt. It also allows for ±4° rota on adjustment to ensure a level display. The mount supports 50-200mm VESA hole pa erns.
  • Page 3 Part List: Part Descrip on Quan ty M4 8mm Metric Screw M4 12mm Metric Screw M5 8mm Metric Screw M5 12mm Metric Screw M6 8mm Metric Screw M6 12mm Metric Screw 6mm Log Bolts S8 Concrete Anchors 5mm Washer 6mm Washer Mount Wrench Tool 6mm Allen Wrench...
  • Page 4 Specifica ons: Supported VESA Hole Pa erns: 50x50mm (~2x2") 75x75mm (~3x3") 100x100mm (~4x4") 100x200mm (~4x8") 200x200mm (~8x8") Unit Weight: Net: 5.5 LBS Gross: 6.64 LBS Shipping Dimensions: 13"x10.6"x2.6" Unit Materials: Arms, Wall Plate and TV Plate: 100% High Grade Steel Wall Plate and Arm Joint Covers: Polyurethane Tilt Range:...
  • Page 5 Installa on Instruc ons: Note: Please read all installa on instruc ons carefully before installa on. For standard wood stud installa on please see Sec on A: Wood Stud Installa on. For concrete and masonry installa on, please see Sec on B: Concrete and Masonry Installa on. Sec on A: Wood Stud Installa on 1.
  • Page 6 3. A aching the mount to your wall: Once the two holes are pre-drilled, fix the wall plate to the w a l l w i t h t h e t w o l a g b o l t s a n d w a s h e r s a s shown.
  • Page 7 6. Locate display moun ng hardware: Today, the vast majority of displays ship from the manufacturer with screws already in the wall moun ng holes. In this case, all you have to do is use the screws provided. If your display does not already have screws in the moun ng holes, some mes the same screws which are used for the desk stand can be used for wall moun ng.
  • Page 8 8. Adjus ng Your Display: Once your display is mounted you can make adjustments of the lt, sag, twist, and ease of mo on. The mount allows for adjustment of each of these. Tilt Adjustment: To adjust the angle of lt, there is a bolt in the center of the TV plate. Once this bolt is loosened, the TV lt can be adjusted by pushing or pulling on the top and bo om of the TV Bezel.
  • Page 9 Sec on B: Concrete and Masonry Installa on: 1. Mark Installa on Points: Once you have selected the loca on for your mount, mark the exact loca on of where the two anchors and lag bolts will be installed. 2. Pre-Drill Installa on Points: Pre-drill the holes using a masonry 10mm drill bit to a d e p t h o f 2 "...
