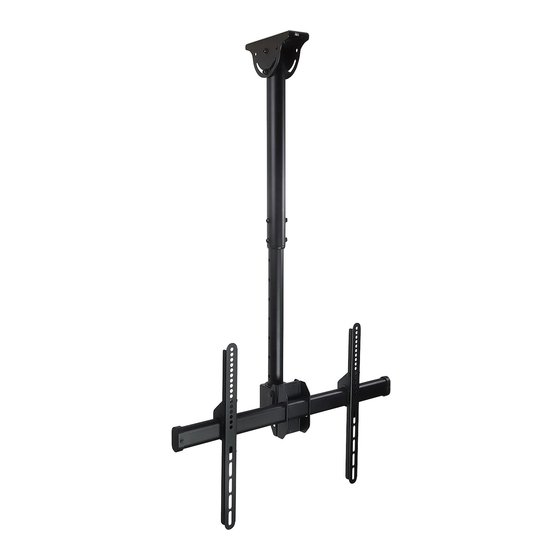

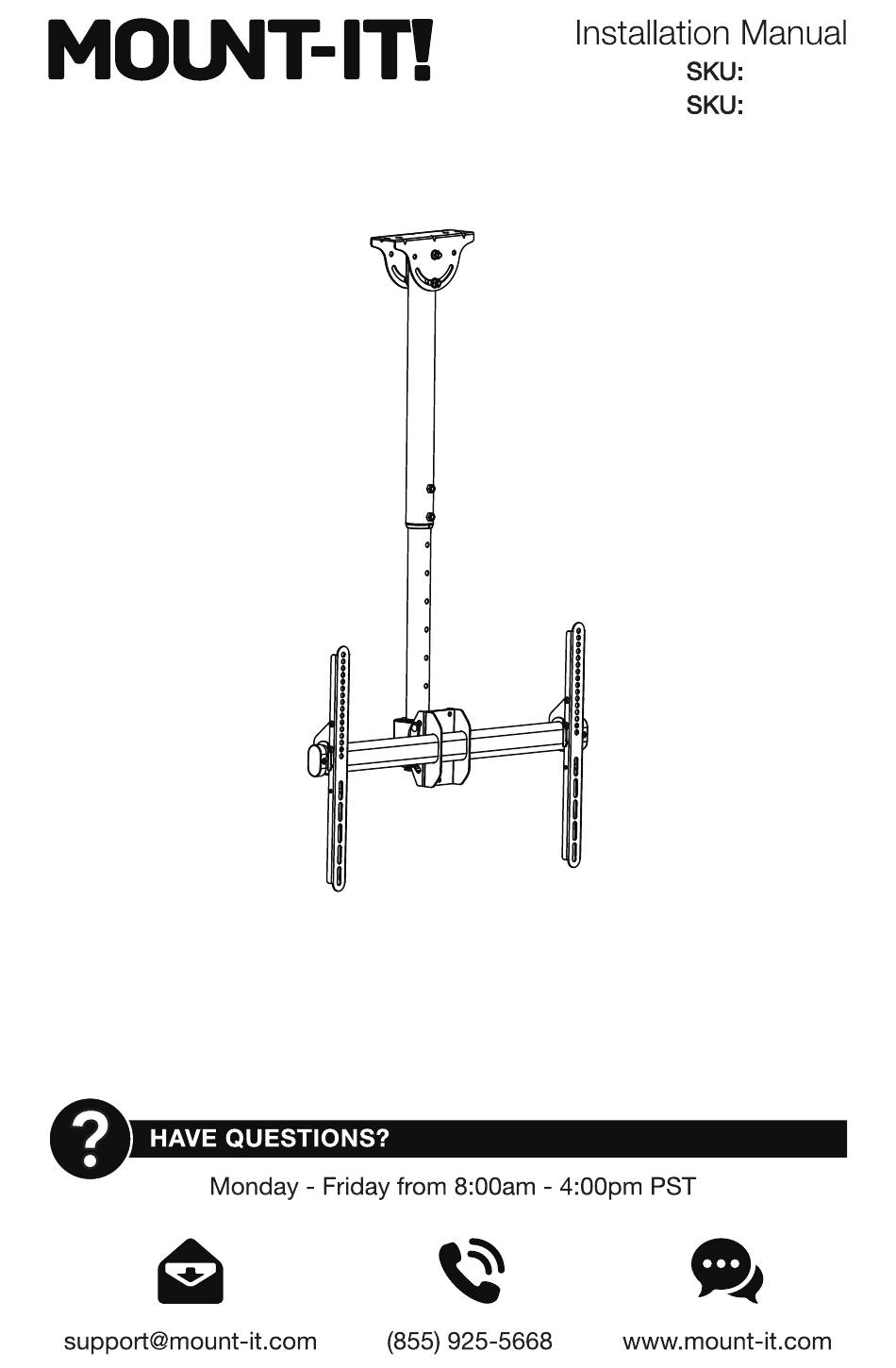

- Page 1 MI-509B MI-509L TV CEILING MOUNT...
-
Page 2: Package Contents
Thank you for choosing Mount-It COMPATIBLE WITH Screens UP TO COMPATIBLE VESA SIZES 200x200 300x300 50kg 400x200 400x400 (110lbs) Mount-It! RATED 600x400 PACKAGE CONTENTS Mount-It! A (x1) B (x1) Ceiling Bracket Lower Pole C (x2) D (x1) VESA Arms Horizontal Arm E (x2) F (x2) G (x1) - Page 3 Step 1a Step 1b Mounting to a Wood Stud or Joist Mounting to Concrete or Brick • Using a stud finder locate the center of the ceiling joist or angled wall stud. Center the Mounting • Place the mounting template in the desired location and mark the center of the holes with a pencil. Template (#I) on the stud and mark the center of the holes with a pencil.
- Page 4 Step 2 Step 3 Routing Cables and Installing the Lower Pole Assembling the Horizontal Arm • Route the TV cables as shown through the upper and lower poles. Insert the lower pole inside the • Insert Horizontal Arm (#D) through the openings in Connector Bracket (#K) and center it on the arm. upper portion and position at the desired height.
-
Page 5: Removing The Security Screw
Step 5 Step 6b Removing the Security Screw Attaching the VESA Arms to the TV (With Spacers) • Remove the security screw pictured below from each of the VESA Arms (#C). • Spacers will be required if the VESA bolts used are too long for the depth of the TV VESA holes. Spacers are provided to adjust the length of the mounting bolt. -
Page 6: Step 8 Final Adjustments
Step 7 Step 8 Hanging the TV onto the Horizontal Arm Final Adjustments • Hang the TV on the horizontal arm as shown so that the full weight of the screen is being supported by • Re-insert the security bolts (removed in step 5) so that the TV cannot be accidentally removed from the VESA arms.
