UM1631
A.3

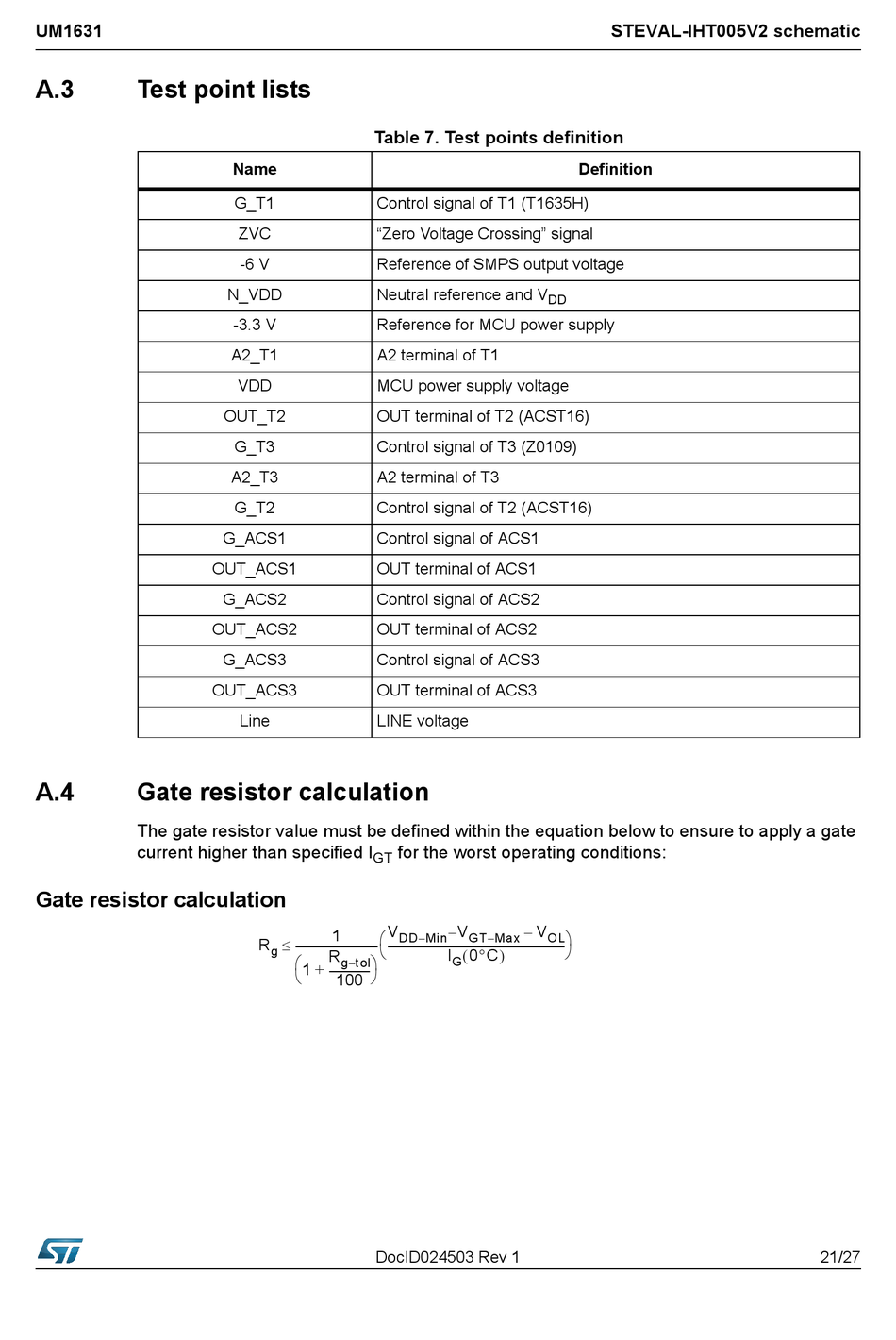

Test point lists

A.4

Gate resistor calculation

The gate resistor value must be defined within the equation below to ensure to apply a gate
current higher than specified I
Gate resistor calculation
Table 7. Test points definition
Name
G_T1 Control signal of T1 (T1635H)
ZVC "Zero Voltage Crossing" signal
-6 V Reference of SMPS output voltage
N_VDD Neutral reference and V
-3.3 V Reference for MCU power supply
A2_T1 A2 terminal of T1
VDD MCU power supply voltage
OUT_T2 OUT terminal of T2 (ACST16)
G_T3 Control signal of T3 (Z0109)
A2_T3 A2 terminal of T3
G_T2 Control signal of T2 (ACST16)
G_ACS1 Control signal of ACS1
OUT_ACS1 OUT terminal of ACS1
G_ACS2 Control signal of ACS2
OUT_ACS2 OUT terminal of ACS2
G_ACS3 Control signal of ACS3
OUT_ACS3 OUT terminal of ACS3
Line LINE voltage
GT
1


R ------------------------------ -

g
R
 
g t – ol
1 + -------------- -
 
100
DocID024503 Rev 1
DD
for the worst operating conditions:
V V V
– –
DD M – in GT M – ax OL
----------------------------------------------------------------- -
 
l 0C
G
STEVAL-IHT005V2 schematic
Definition


21/27
