Bill Of Material; A.5 Bill Of Material - STMicroelectronics STEVAL-IHT005V2 User Manual

UM1631
A.5

Bill of material

Quan-
Designator
tity
1 C3
1 P1
2 C17, C18
2 R6, R7
2 R9, R30
1 C11
C2, C12, C14,
6
C19, C21, C23
1 C1
3 C4, C30, C31
1 C8
1 C9
1 CE1
1 CE4
1 CE5
1 CE6
1 CN2
1 D6
1 K1
1 L1
1 L2
1 L3
1 Q1
1 Q2
1 R12
1 R14
1 R15
1 R18
1 R28
1 R31
1 R32

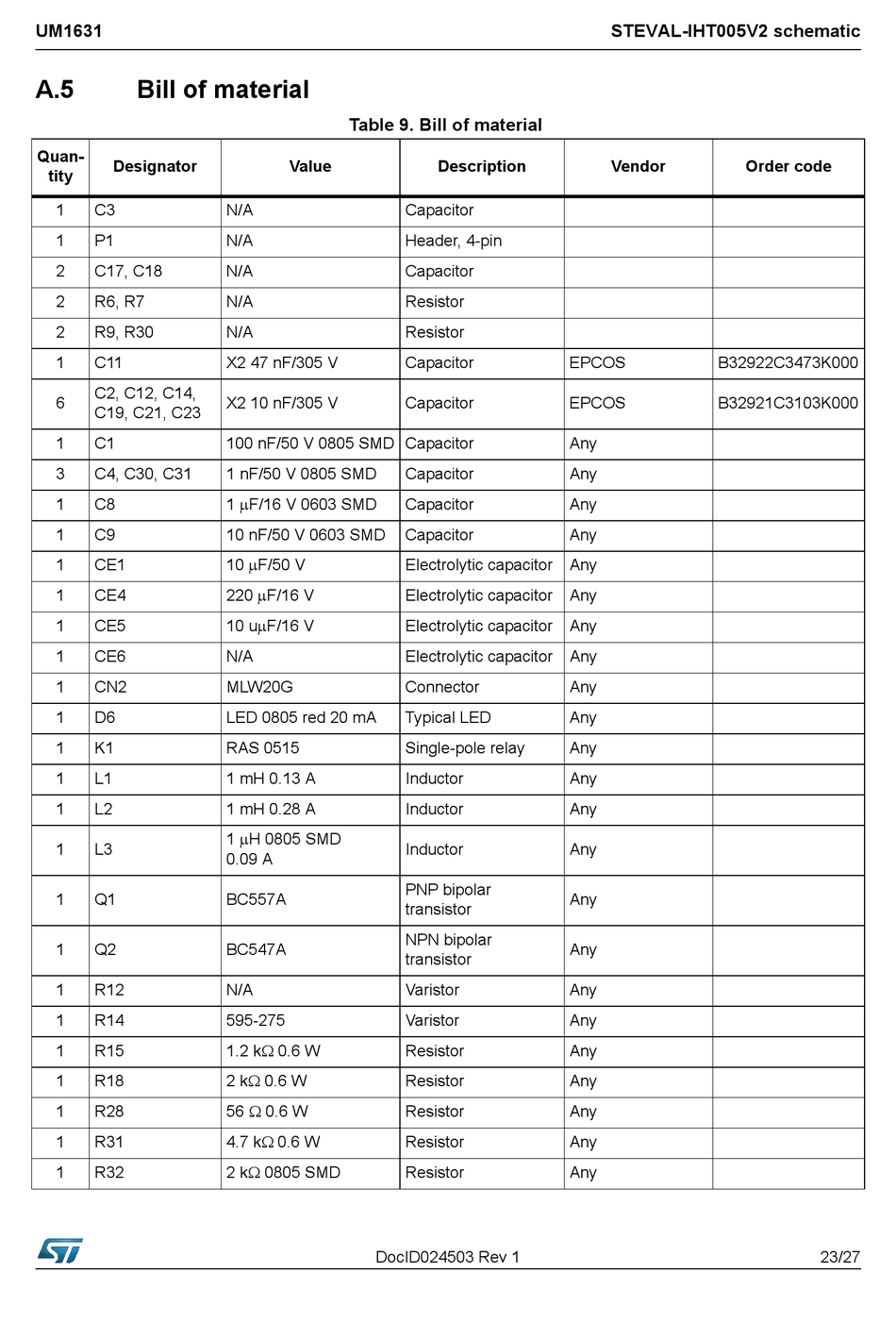

Table 9. Bill of material
Value
N/A
N/A
N/A
N/A
N/A
X2 47 nF/305 V
X2 10 nF/305 V
100 nF/50 V 0805 SMD Capacitor
1 nF/50 V 0805 SMD
1 F/16 V 0603 SMD
10 nF/50 V 0603 SMD
10 F/50 V
220 F/16 V
10 uF/16 V
N/A
MLW20G
LED 0805 red 20 mA
RAS 0515
1 mH 0.13 A
1 mH 0.28 A
1 H 0805 SMD
0.09 A
BC557A
BC547A
N/A
595-275
1.2 k 0.6 W
2 k 0.6 W
56  0.6 W
4.7 k0.6 W
2 k 0805 SMD
DocID024503 Rev 1
Description
Capacitor
Header, 4-pin
Capacitor
Resistor
Resistor
Capacitor EPCOS
Capacitor EPCOS
Any
Capacitor Any
Capacitor Any
Capacitor Any
Electrolytic capacitor Any
Electrolytic capacitor Any
Electrolytic capacitor Any
Electrolytic capacitor Any
Connector Any
Typical LED Any
Single-pole relay Any
Inductor Any
Inductor Any
Inductor Any
PNP bipolar
Any
transistor
NPN bipolar
Any
transistor
Varistor Any
Varistor Any
Resistor Any
Resistor Any
Resistor Any
Resistor Any
Resistor Any
STEVAL-IHT005V2 schematic
Vendor Order code
B32922C3473K000
B32921C3103K000
23/27
