SteelMax D4X Operator's Manual

With electromagnetic base
Hide thumbs Also See for D4X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
The tools of innovation.

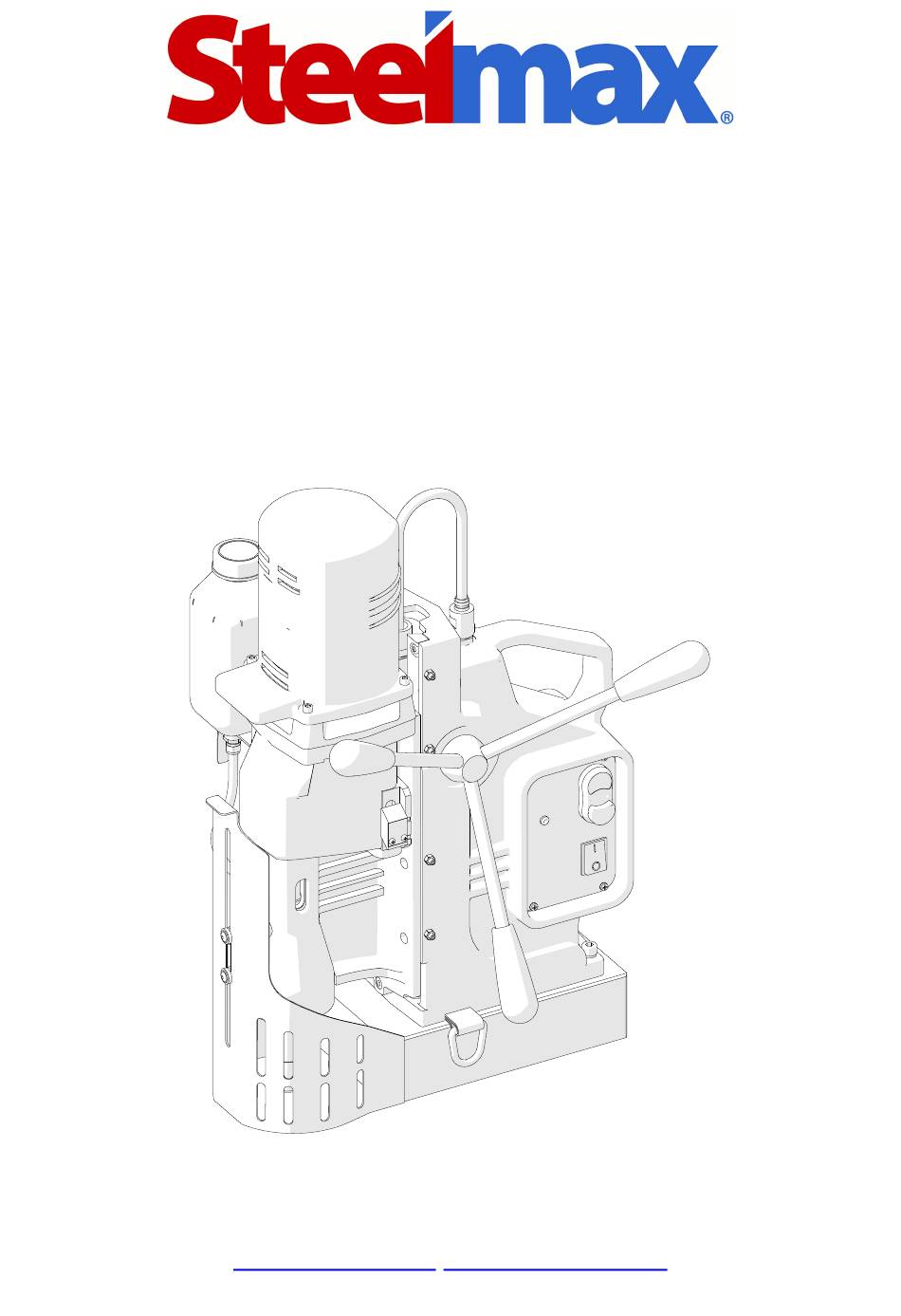

OPERATOR'S MANUAL
D
4
X
D
4
X
DRILLING MACHINE
WITH ELECTROMAGNETIC BASE
15335 E. Fremont, Centennial, CO 80112
1– 87STEELMAX, FAX 303 – 690 – 9172
www.steelmax.com sales@steelmax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D4X and is the answer not in the manual?

Questions and answers

Related Manuals for SteelMax D4X

Summary of Contents for SteelMax D4X

  • Page 1 The tools of innovation. OPERATOR’S MANUAL DRILLING MACHINE WITH ELECTROMAGNETIC BASE 15335 E. Fremont, Centennial, CO 80112 1– 87STEELMAX, FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...

  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................3 1.3. Design ........................5 1.4. Equipment included ....................5 2. SAFETY PRECAUTIONS ....................6 3. STARTUP AND OPERATION ................... 8 3.1. Installing and removing the arbor or MT4 twist drill bit ..........8 3.2.

  • Page 3: General Information

    1. GENERAL INFORMATION 1.1. Application The D4X is a drilling machine with electromagnetic base, designed to drill holes either with diameters of 12–111 mm (1/2 – 4-3/8’’) to a depth of up to 76 mm (3’’) by using HSS and TCT annular cutters or with diameters of 16–47 mm (5/8 – 1-7/8’’) to a depth up to 76 mm (3’’) by using twist drill bits.
  • Page 4 440 mm (17-5/16’’) 312 mm (12-5/16’’) D4X Operator’s Manual...

  • Page 5: Design

    2.5 mm hex wrench 1 unit 4 mm hex wrench 1 unit 5 mm hex wrench with handle 1 unit 6 mm hex wrench 1 unit 8 mm combination wrench 1 unit Tool can 1 unit Operator’s Manual 1 unit D4X Operator’s Manual...

  • Page 6: Safety Precautions

    Never use arbors without a spring. 18. Never use near flammable liquids or gases, or in explosive environments. 19. Never use the machine on surfaces that are rusty, covered with a thick paint layer, uneven, or not rigid. D4X Operator’s Manual...
  • Page 7 32. Never leave the machine unattended during operation. 33. Remove from the worksite and store in a secure and dry location when not in use, previously removing the tool from the holder. D4X Operator’s Manual...

  • Page 8: Startup And Operation

    Next, insert the arbor (drill bit) into the spindle (3), and then rotate the arbor (drill bit) to the right (4) until it slips into place, and hammer it in (5). Fig. 1. Installing the arbor or the drill bit D4X Operator’s Manual...
  • Page 9 (2). Next, insert the MT3 drift 3) into the opening above the arbor (drill bit), hold the carrying handle with one hand, and then tap the drift using a mallet (4). Fig. 2. Removing the arbor or the drill bit D4X Operator’s Manual...

  • Page 10: Installing, Removing, And Operating The Annular Cutter

    3 with the set screws 4, and then use the 5 mm hex wrench to tighten both set screws. To remove the cutter, loosen the screws 4 with the 5 mm hex wrench. Fig. 3. Installing the annular cutter D4X Operator’s Manual...
  • Page 11 Annular cutters are designed to make only through holes shown in Fig. 5. When drilling incomplete through holes the pilot pin must not be used. Incomplete through holes Complete through holes Fig. 5. Types of holes to make with annular cutters D4X Operator’s Manual...

  • Page 12: Installing And Removing The Cooling System Bottle

    Hang the cooling system bottle on the screws (1, Fig. 6), and then attach the bottle hose to the hose fitting (2). To remove the bottle, first detach the bottle hose from the fitting. Fig. 6. Installing the cooling system bottle D4X Operator’s Manual...

  • Page 13: Control System Of The Electromagnetic Base Holding Force

    Use the safety chain to prevent the machine from falling and avoid possible injury to the operator if the machine loses magnetic clamping in case of a power loss. To protect the machine, attach it to a fixed structure by fastening the chain to the lugs D4X Operator’s Manual...
  • Page 14 Because the cooling system works by gravity, when working in inverted or horizontal positions (Fig. 7b, 7c, 7d) use coolants under pressure or in the form of spray or paste. D4X Operator’s Manual...

  • Page 15: Drilling

    18 mm (11/16’’), drill again by using a bit with the 80% diameter of the hole size desired, and then drill again by using a bit with diameter equal to the hole size desired. D4X Operator’s Manual...
  • Page 16 Tighten the bottle cap, close the valve, and then press the pilot pin to expel the coolant remaining within the cooling system. Before inserting the machine into the box, remove the bottle, and then wear gloves to remove the tool from the holder. D4X Operator’s Manual...

  • Page 17: Adjusting The Gib Clearance

    Next, use the 4 mm hex wrench to tighten the gib screws: central screw (6), adjacent screws, and then top and bottom screws. Finally, use the 8 mm combination wrench to tighten the nuts (7), while countering the set screws with the 2.5 mm hex wrench (8). D4X Operator’s Manual...
  • Page 18 Fig. 8. Adjusting the gib clearance D4X Operator’s Manual...

  • Page 19: Replacing The Motor Brushes

    (6) and the brush (7). If the length of the brush is less than 5 mm (3/16’’), replace both brushes with new ones. To install brushes, proceed in reverse order. After the replacement, run the motor without load for 20 minutes. Fig. 9. Replacing the brushes D4X Operator’s Manual...

  • Page 20: Accessories

    4. ACCESSORIES 4.1. Pressure cooling system Capacity of 2 liters. Part number: UKL-0440-16-00-00-0 4.2. Arbor MT4 x 32 mm Weldon Required when drilling diameter is more than 60 mm (2-3/8’’). Part number: UCW-0191-02-00-00-0 D4X Operator’s Manual...

  • Page 21: Pipe Attachment Dmp 501

    4.3. Pipe attachment DMP 501 Designed for pipes with diameters of 150–500 mm (6–20’’). Part number: PDS-0111-03-00-01-0 D4X Operator’s Manual...

  • Page 22: Wiring Diagram

    5. WIRING DIAGRAM D4X Operator’s Manual...

  • Page 23: Exploded Drawings And Parts List

    WASHER 18.8x10x1 USZ-0140-05-04-00-0 SEAL WYP-0154-00-02-00-0 PLUNGER SPR-0154-00-03-00-0 SPRING 1.6x12.4x159 KRP-0173-01-01-00-0 ARBOR BODY AMT4-U-19 /4-3 WKR-000036 HEX SOCKET SET SCREW WITH FLAT POINT M12x10 PRS-000009 INTERNAL RETAINING RING 19w KLC-000007 4 MM HEX WRENCH KLC-000009 6 MM HEX WRENCH D4X Operator’s Manual...
  • Page 24 HEX SOCKET ROUND HEAD SCREW WITH FLANGE M5x20 PDK-000043 SPRING WASHER 4.1 KRP-0400-01-01-01-1 BODY LST-0400-01-01-03-0 LST-0473-01-01-02-0 ADJUSTABLE GIB NKR-000016 HEX NUT M5 PDK-000017 ROUND WASHER 5.3 SPR-000043 SPRING 1.6x8x14.5 WKR-000077 HEX SOCKET SET SCREW WITH FLAT POINT M5x16 TLJ-000010 SELF-LUBRICATING SLEEVE 28x32x16 D4X Operator’s Manual...
  • Page 25 SPRING WASHER 8.2 SRB-000155 HEX SOCKET HEAD CAP SCREW M8x30 MSK-0401-03-01-00-0 PANEL PLATE WZK-0401-03-02-00-0 START-STOP WIRE SET PNK-000013 MAGNET SWITCH PRC-000007 START-STOP SWITCH PEW-000002 LIGHT TUBE DLW-000007 CABLE GLAND WITH STRAIN RELIEF PG11 BLO-000023 START-STOP CONTACT BLOCK D4X Operator’s Manual...
  • Page 26 D4X Operator’s Manual...
  • Page 27 PRS-000026 INTERNAL RETAINING RING 42w PRS-000244 INTERNAL RETAINING RING 68w PRS-000245 SEAL 30x42x7 PRS-000246 SEAL 40x52x7 PRS-000247 SEAL 40x55x7 KNC-0234-00-10-00-0 COOLANT COUPLING WKR-000450 CROSS RECESSED PAN HEAD SCREW M5x10 KLK-000049 DOWEL PIN 5n6x20 LOZ-000017 NEEDLE BEARING 30x42x17 D4X Operator’s Manual...
  • Page 28 NEEDLE BEARING 101410 LOZ-000053 BALL BEARING 8x22x7 KOL-0202-00-12-00-0 GEAR z33 WLK-0202-00-13-00-0 PINION SHAFT z14 WPS-0202-00-19-00-1 KEY 5x5x12 PRS-000008 EXTERNAL RETAINING RING 18z LOZ-000025 BALL BEARING 12x28x8 LOZ-000055 BALL BEARING 8x22x7 0.72 kg – SMR-000001 GREASE LUBRIPLATE BP1 (25 oz) D4X Operator’s Manual...

  • Page 29: Declaration Of Conformity

    EC Declaration of Conformity PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok Poland declare with full responsibility that: D4X Drilling Machine with Electromagnetic Base is manufactured in accordance with the following standards • EN 50144-1 • EN 55014 and satisfies safety regulations of the guidelines: 2004/108/EC, 2006/95/EC, 2006/42/EC.

  • Page 30: Quality Certificate

    8. QUALITY CERTIFICATE Machine control card Drilling Machine with Electromagnetic Base □ D4X 120 V □ D4X 230 V Serial number ........................ Spindle radial runout ...................... Slide to base travel perpendicularity ................Spindle axis to base perpendicularity ................Base holding force ......................

  • Page 31: Warranty Card

    WARRANTY CARD No.................. in the name of Manufacturer warrants the D4X Drilling Machine with Electromagnetic Base to be free of defects in material and workmanship under normal use for a period of 12 months from the date of sale.
  • Page 32 SM-AC-20-M-2 21mm 0.8268 SM-AC-21-M-1 SM-AC-21-M-2 22mm 0.8661 SM-AC-22-M-1 SM-AC-22-M-2 23mm 0.9055 SM-AC-23-M-1 SM-AC-23-M-2 24mm 0.9449 SM-AC-24-M-1 SM-AC-24-M-2 25mm 0.9843 SM-AC-25-M-1 SM-AC-25-M-2 26mm 1.0230 SM-AC-26-M-1 SM-AC-26-M-2 28mm 1.1020 SM-AC-28-M-1 SM-AC-28-M-2 29mm 1.1410 SM-AC-29-M-1 SM-AC-29-M-2 31mm 1.2200 SM-AC-31-M-1 SM-AC-31-M-2 D4X Operator’s Manual...
