CONTROL PANEL

15
14
13
12
1. Document holder
2. Power Zone™ controller
3. Auxiliary light switches (2) (optional)
4. 50A circuit breakers (3)
5. 120V GFCI receptacles (2)
6. 20A circuit breakers (2)
7. Remote start terminal block
8. Connection for battery charger (optional)
33722 D
1
11

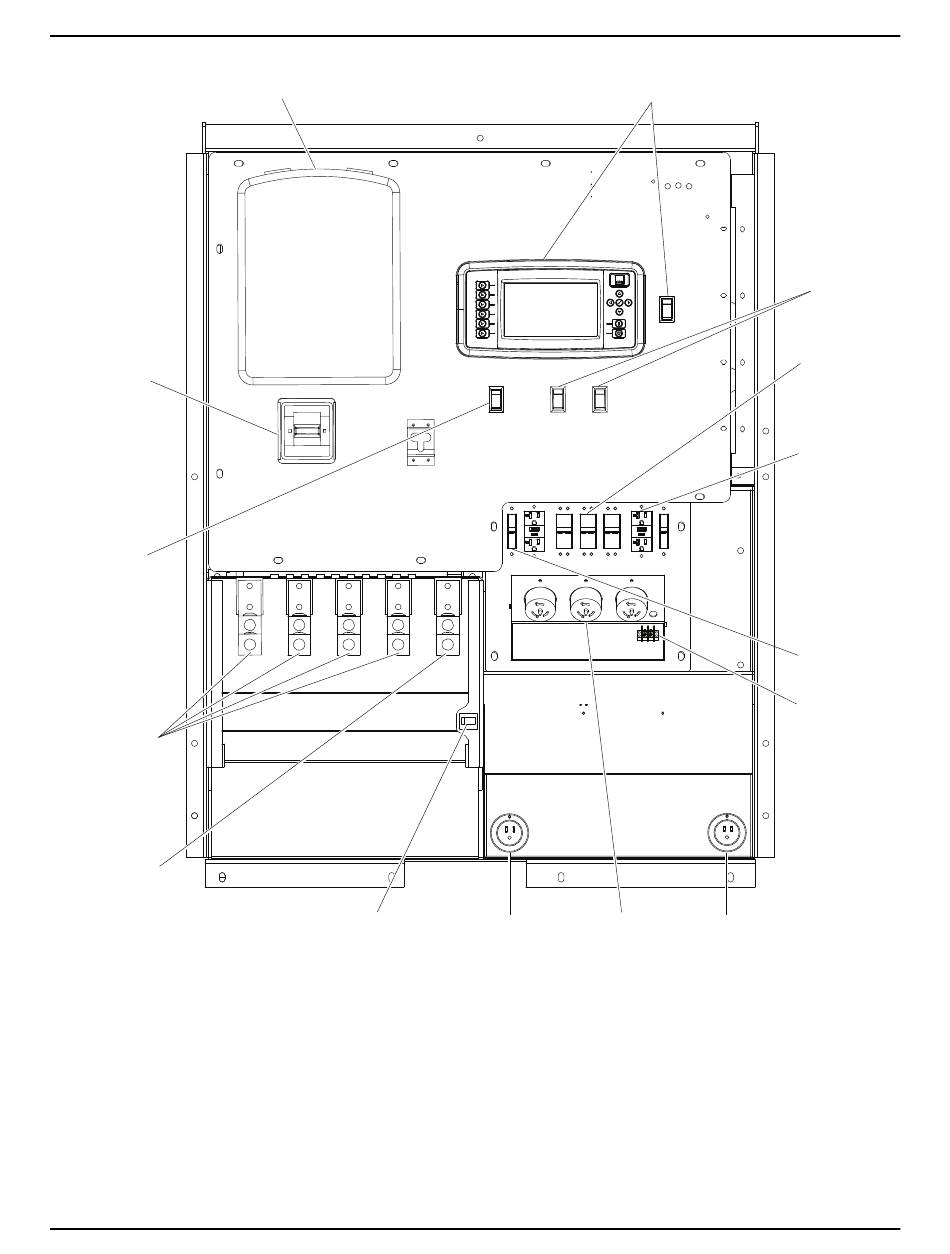

Figure 2-4. Control Panel Component Locations
MMG130DI4/175DI4/205DI4 Operating Manual
2
10 9
9. 120/240V twist-lock receptacles (3)
10. Connection for engine block heater
(optional)
11. Door safety switch
12. Output ground connection
13. Connection terminal lugs (4)
14. Diesel exhaust filter cleaning switch
15. Main circuit breaker for connection lugs
