General Information
CONTROL PANEL - WITH CAM LOCK OPTION
16
15
14
13
12
1. Document holder
2. Power Zone™ controller
3. Auxiliary light switches (2) (optional)
4. 120V GFCI receptacles (2)
5. 50A circuit breakers (3)
6. Remote start terminal block
7. Cam lock connectors (10) (optional)
8. Connection for battery charger (optional)
12
1
11

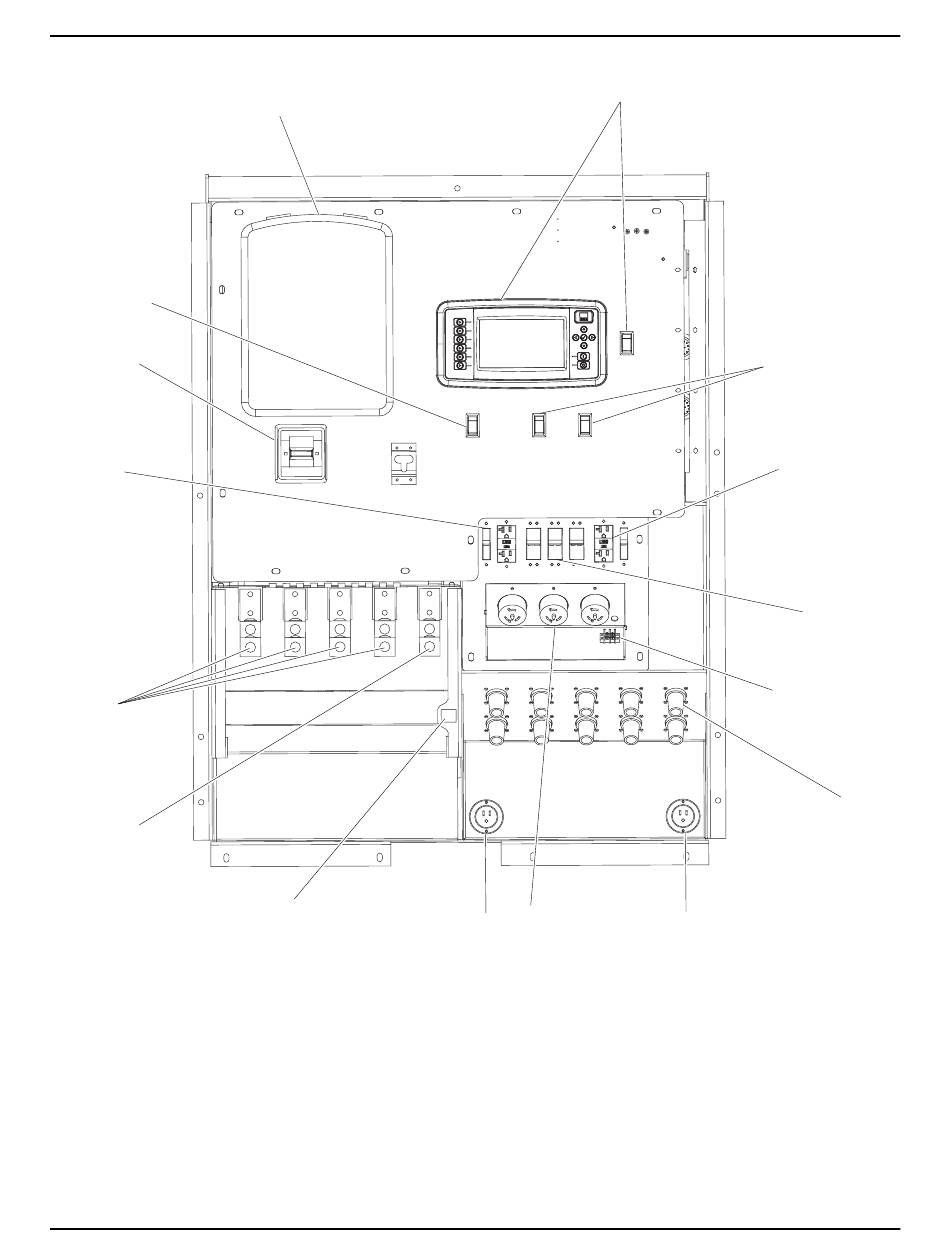

Figure 2-5. Control Panel Component Locations
MMG130DI4/175DI4/205DI4 Operating Manual
2
9
10
9. 120/240V twist-lock receptacles (3)
10. Connection for engine block heater
(optional)
11. Door safety switch
12. Output ground connection
13. Connection terminal lugs (4)
14. 20A circuit breakers (2)
15. Main circuit breaker for connection lugs
16. Diesel exhaust filter cleaning switch
3
4
5
6
7
8
00388
33722 D
