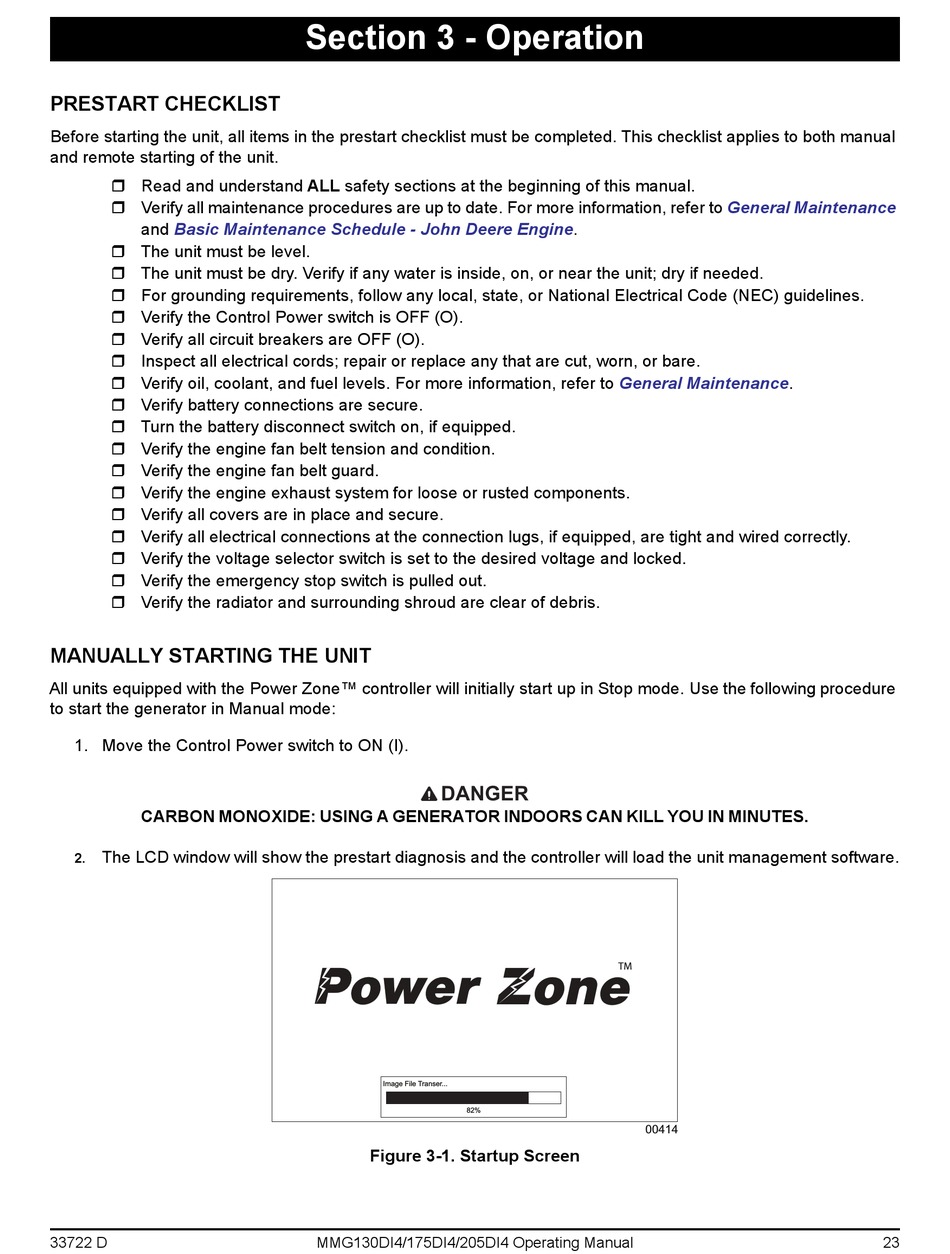

PRESTART CHECKLIST

Before starting the unit, all items in the prestart checklist must be completed. This checklist applies to both manual

and remote starting of the unit.

 Read and understand ALL safety sections at the beginning of this manual.

 Verify all maintenance procedures are up to date. For more information, refer to

and

Basic Maintenance Schedule - John Deere

 The unit must be level.

 The unit must be dry. Verify if any water is inside, on, or near the unit; dry if needed.

 For grounding requirements, follow any local, state, or National Electrical Code (NEC) guidelines.

 Verify the Control Power switch is OFF (O).

 Verify all circuit breakers are OFF (O).

 Inspect all electrical cords; repair or replace any that are cut, worn, or bare.

 Verify oil, coolant, and fuel levels. For more information, refer to

 Verify battery connections are secure.

 Turn the battery disconnect switch on, if equipped.

 Verify the engine fan belt tension and condition.

 Verify the engine fan belt guard.

 Verify the engine exhaust system for loose or rusted components.

 Verify all covers are in place and secure.

 Verify all electrical connections at the connection lugs, if equipped, are tight and wired correctly.

 Verify the voltage selector switch is set to the desired voltage and locked.

 Verify the emergency stop switch is pulled out.

 Verify the radiator and surrounding shroud are clear of debris.

MANUALLY STARTING THE UNIT

All units equipped with the Power Zone™ controller will initially start up in Stop mode. Use the following procedure

to start the generator in Manual mode:

1. Move the Control Power switch to ON (I).

CARBON MONOXIDE: USING A GENERATOR INDOORS CAN KILL YOU IN MINUTES.

The LCD window will show the prestart diagnosis and the controller will load the unit management software.
