Generac Power Systems MMG35FH Specifications

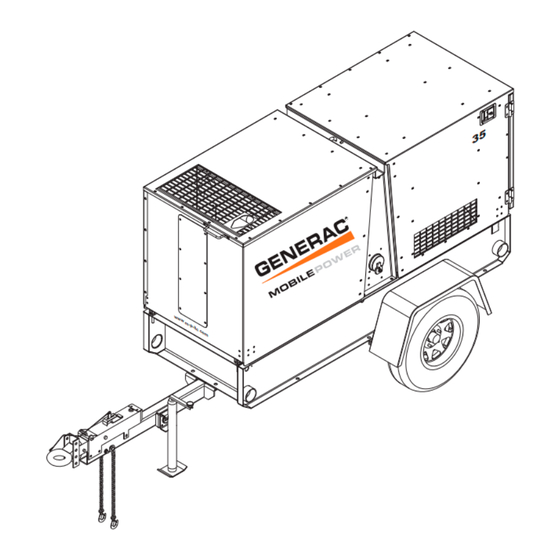

Mobile Generator – MMG35FH Specifications

ENGINE


John Deere
Prime - 43 hp @ 1800 rpm
o
Standby - 48 hp @ 1800 rpm
o
4 cylinder
o
2.4 L displacement
o
Tier IV Interim approved
o

Steel, single wall fuel tank
106 gal. capacity
o
95 useable gallons
o
36.9 hr. run time – full load
o
Fuel tank built into skid of generator set
o

Fuel consumption at prime:
100% - 2.6 gph (9.8 Lph)
o
75% - 2.0 gph (7.6 Lph)
o
50% - 1.3 gph (4.9 Lph)
o
 Cooling system capable of operating at 120°F ambient

Low coolant shutdown

Radiator and oil drains plumbed to exterior

Rubber vibration dampers isolate engine/generator from frame

Disposable air filter - paper element
 Air filter restriction indicator mounted on control panel

60 Hz engine/generator

Electronic isochronous governing

GENERATOR

 Marathon Electric
Brushless
o
4 pole
o
Class H insulation
o

Voltage regulation +/- 1% with Marathon SE350 Voltage Regulator

SYSTEM OUTPUT


3 position selector switch
Single phase – 120 / 240V Zig Zag
o
Three phase – 120 / 208V Low Wye
o
Three phase – 277 / 480V High Wye
o

26 kW / 26 kVA – standby, single phase
 25 kW / 25 kVA – prime, single phase

29 kW / 36 kVA – standby, three phase
 26 kW / 33 kVA – prime, three phase

SYSTEM CONTROLS

 Microprocessor-based controller
Backlit, 128x64 pixel resolution display
o
-40°F to 185°F operating temperature range
o
Thermostatically controlled LCD heater
o
Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.
® PE4024TF281 - turbocharged, diesel engine
®
Phone: 800-926-9768 Fax: 920-361-2214 ww.m-p-llc.com
w w
w
m
- p
- ll
c c
o m
Trailer sold separately
