Display
The setting ranges for the parameter values are summarised in the Parameter overview
section > see 10.1.3 chapter.
5.4

Dirt filter

These accessory components can be retrofitted as an option > see 9 chapter.
•

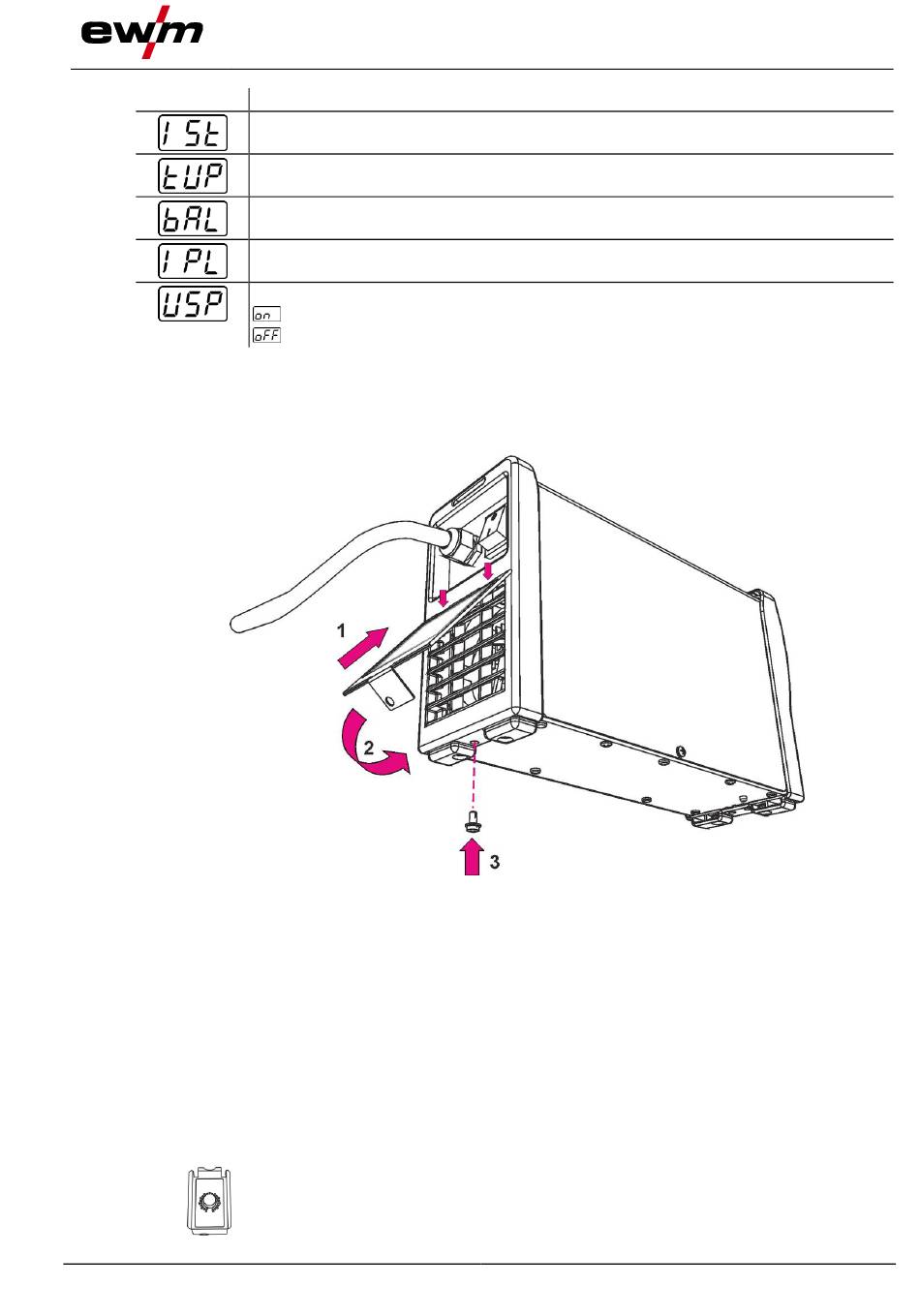

As shown in the diagram, insert the dirt filter into the rear of the machine, above the air inlet, using
both clips (1).
•
Fold down the dirt filter (2).
•
Fasten the dirt filter to the underside of the machine (3) using fixing screws.
The duty cycle of the welding machine decreases as an effect of the reduced cooling air volume. The dirt
filter must be remove at regular intervals and cleaned by blowing out with compressed air (depending on
the level of soiling).
5.5

Remote control

The remote controls are operated on the 19-pole remote control connection socket (analogue).
5.5.1

RT1 19POL

099-002057-EW501
04.03.2019
Setting/selection
Ignition current (as percentage, dependent on main current)
Upslope time to main current
Pulse balance
Pulse current > see 5.3.5 chapter
Arc length restriction > see 5.7 chapter
------- Function switched on
------- Function switched off
Functions
•
Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
Design and function
Figure 5-21
Dirt filter
