Overview Of The Front Panel; Tape In Use - Tandberg Data Tape Backup System DLT4000 Installation Manual

Tandberg Data
Indicators (Left Side of Drive)
Density indicator 2.6 (Yellow)
Density indicator 6.0 (Yellow)
Density indicator 10.0/15.0 (Yellow)
Density indicator 20.0 (Yellow)
Compress indicator (Yellow)
Density Override indicator (Yellow)
Controls
Density Select button
Cartridge insert/release handle
Tandberg DLT4000 Installation Guide
Configuring and Operating the Tandberg DLT4000 Drive
3.3.

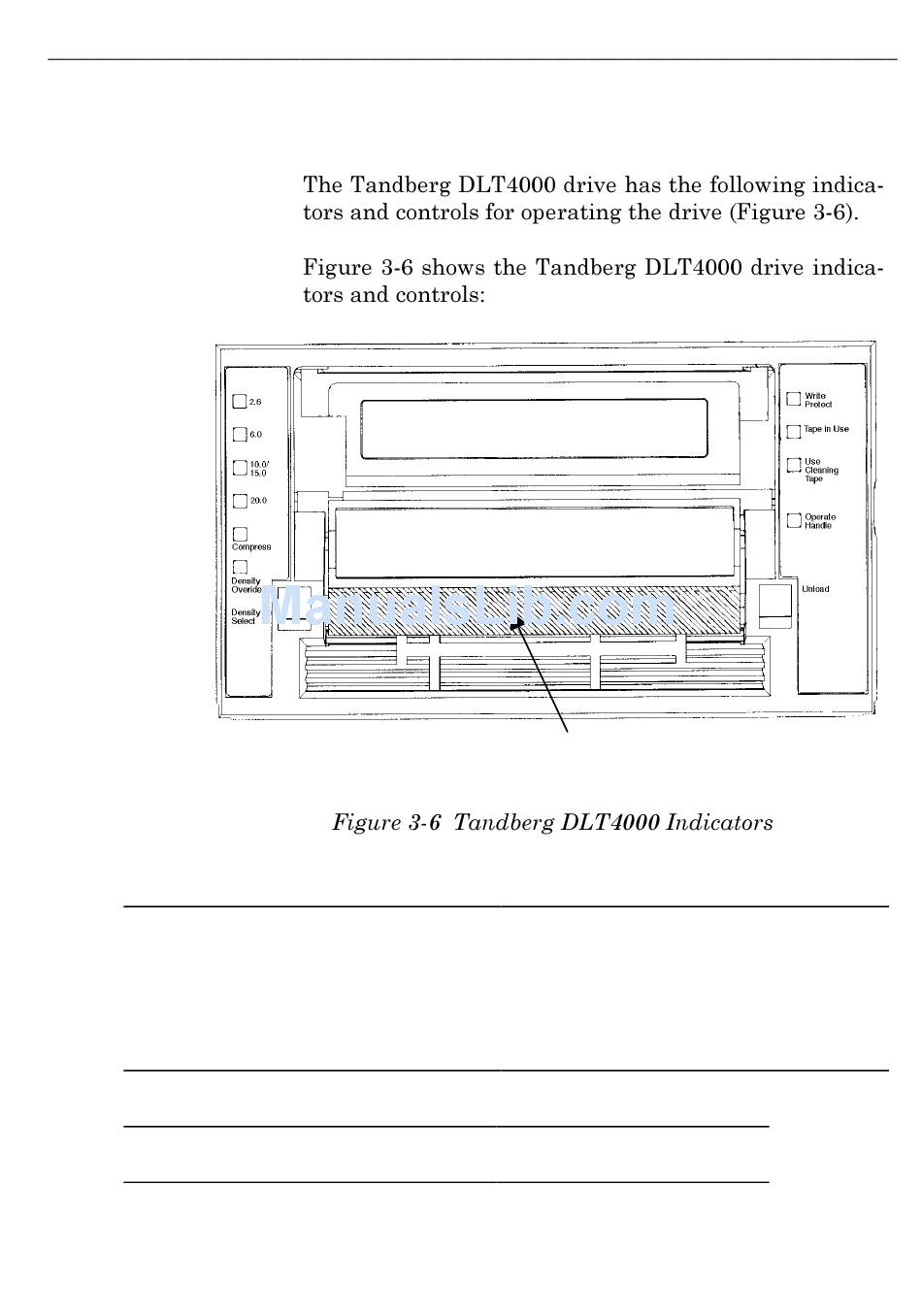

Overview of the Front Panel

Cartridge Insert / Release handle (down)
Indicators (Right Side of Drive)
Write Protected indicator (Orange)
Tape in Use indicator (Yellow)
Use Cleaning Tape indicator (Yellow)
Operate Handle indicator (Green)
Beeper (audible) not visible
Unload button
3-7
